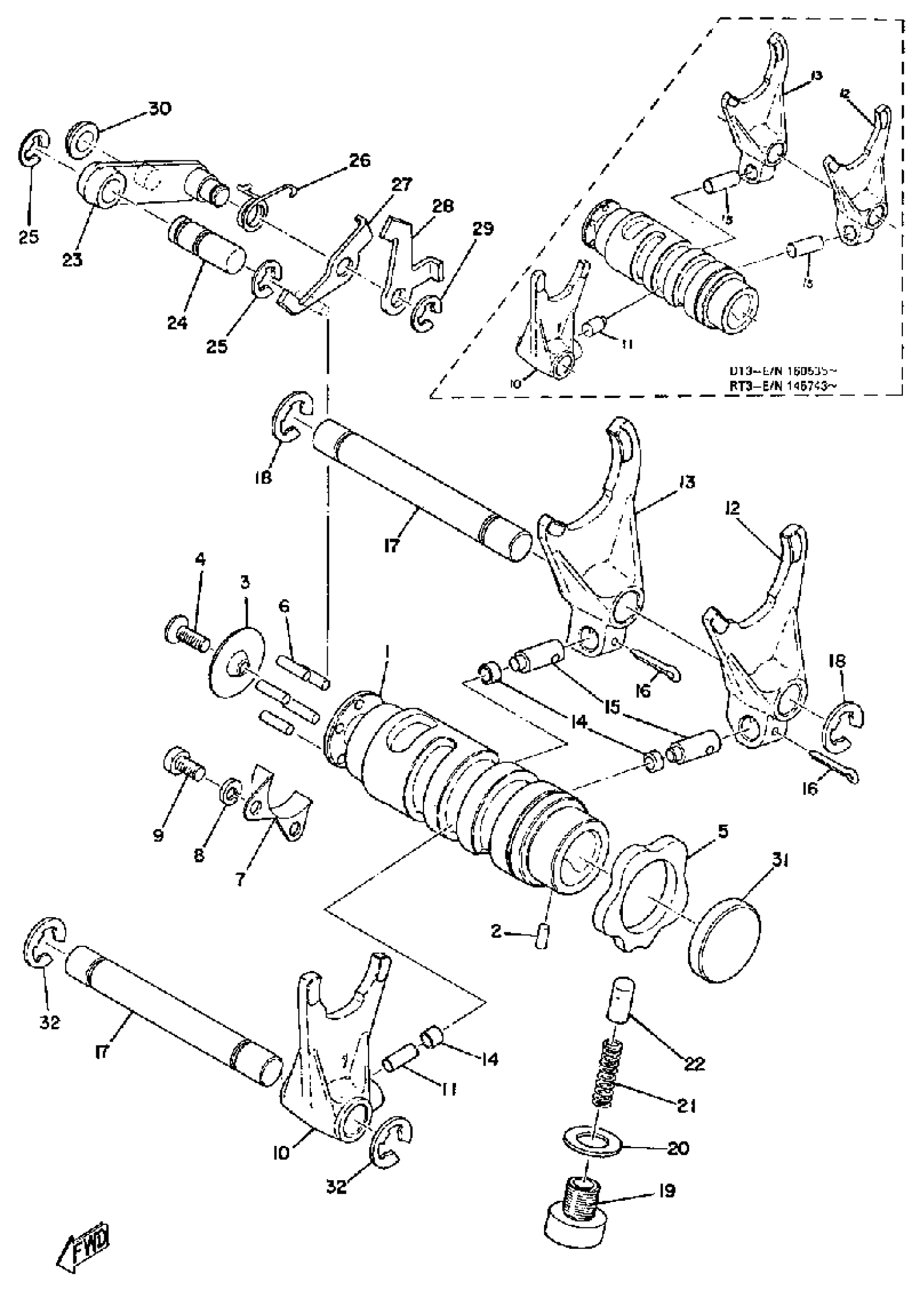

Yamaha RT2MX (RT2MX) 1972 SHIFTER A Diagram

#

Description
Price

1

CAM, SHIFT

308-18541-00-00

Unavailable

2

PIN, DOWEL (278)

93604-08071-00

$8.49

3

PLATE, SIDE 1

214-18561-00-00

Unavailable

4

SCREW, FLAT

98707-05012-00

$1.71

5

PLATE, STOPPER

(278-18141-00-00)

Unavailable

6

PIN,DOWEL (137)

93604-14012-00

$1.81

7

GUIDE

214-18179-00-00

Unavailable

8

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

FORK, SHIFT 1

291-18511-01-00

Unavailable

10

FORK, SHIFT 1

291-18511-01-00

Unavailable

11

PIN, SPEC''L SHAPE

(90249-08089-00)

Unavailable

11

PIN, DOWEL

(93605-13077-00)

Unavailable

12

FORK, SHIFT 2

291-18512-02-00

Unavailable

12

FORK, SHIFT 2

291-18512-02-00

Unavailable

13

FORK, SHIFT 3

(291-18513-02-00)

Unavailable

13

FORK, SHIFT 3

(291-18513-02-00)

Unavailable

14

PIN,SPEC'L SHAPE

90249-05035-00

Unavailable

15

PIN, SPEC''L SHAPE (214-18552-00)

90249-05042-00

Unavailable

15

PIN, STRAIGHT

90250-08017-00

Unavailable

16

PIN, COTTER(6L5)

91490-25030-00

Unavailable

17

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

Unavailable

18

CIRCLIP

99006-10600-00

Unavailable

19

UNAVAILABLE IN PRICE BOOK

19A---

Unavailable

19

SCREW, SPRING

(308-18577-01-00)

Unavailable

20

GASKET (3JD1)

90430-12207-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

21A---

Unavailable

21

SPRING, CAM STOPPER

(308-18557-00-00)

Unavailable

22

STOPPER, CAM

137-18547-00-00

Unavailable

23

BRACKET

(214-18128-00-00)

Unavailable

24

AXLE, PAWL HOLDER

(214-18188-00-00)

Unavailable

25

CIRCLIP(J51)

99080-09600-00

Unavailable

26

SPRING, TORSION

90508-08007-00

Unavailable

27

LEVER, SHIFT 4

(214-18152-00-00)

Unavailable

28

LEVER, SHIFT 3

(214-18151-00-00)

Unavailable

29

CIRCLIP

99080-07600-00

Unavailable

30

ROLLER, SHIFT LEVER

214-18178-00-00

Unavailable

31

PLUG, SPEC''L SHAPE

(90338-32031-00)

Unavailable

32

CIRCLIP

99006-10600-00

Unavailable
