1972 Yamaha RT2MX (RT2MX) OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

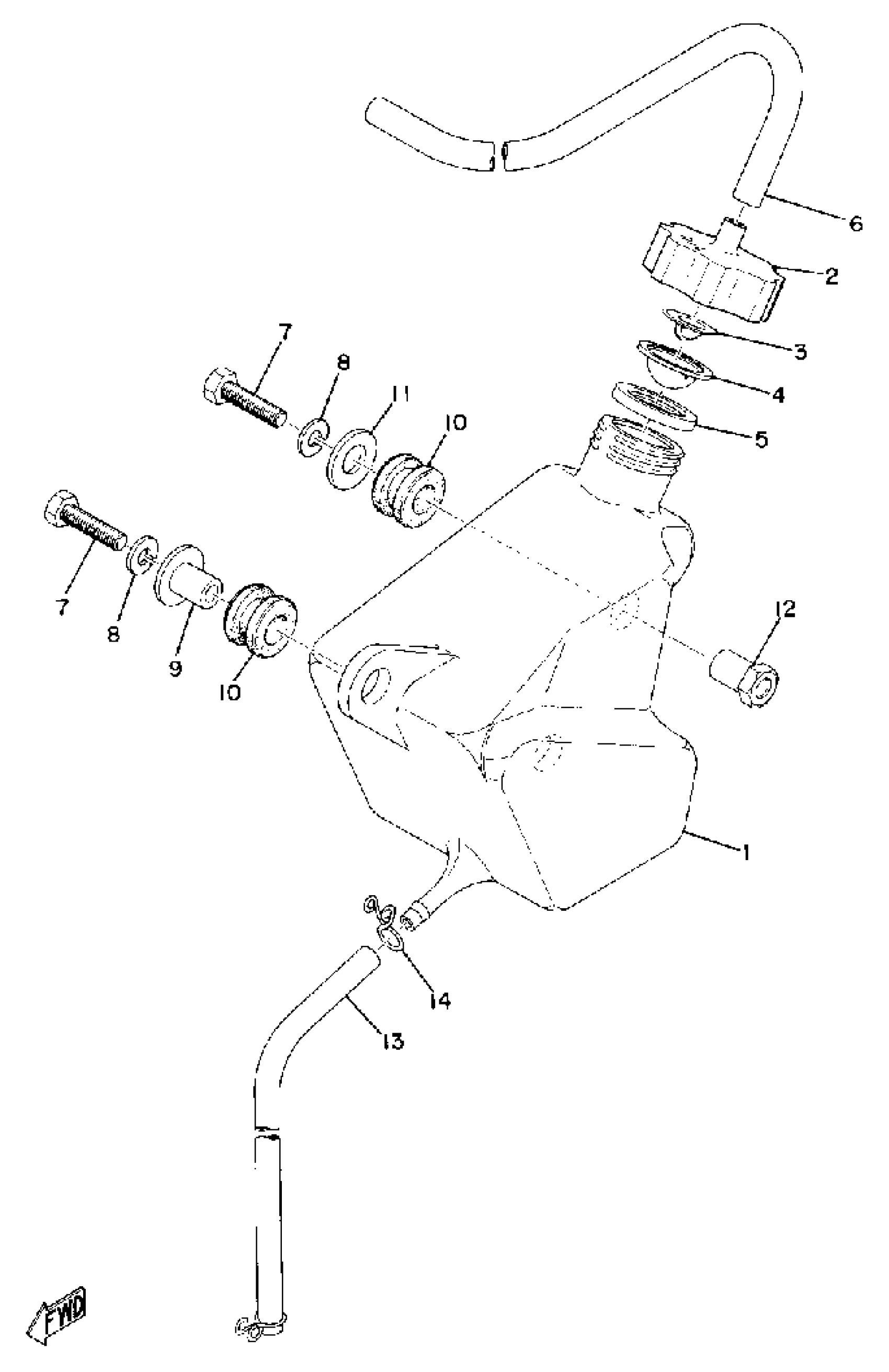

1972 Yamaha RT2MX (RT2MX) OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

(322-21751-00-00)

1
Out of stock

2

BODY, CAP

322-21771-00-00

1
Out of stock

3

BODY, CAP

322-21771-00-00

1
Out of stock

4

DISC, CAP

(322-21774-00-00)

1
Out of stock

5

GASKET, CAP

(322-21772-00-00)

1
Out of stock

6

HOSE

(90445-09102-00)

1
Out of stock

7

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

COLLAR

90387-06158-00

1

$6.17

In stock

10

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

11

1

$3.00

In stock

12

NUT, SPEC''L SHAPE

(90179-06136-00)

1
Out of stock

12

UNAVAILABLE IN PRICE BOOK (90179-06136)

90179-06177-00

1
Out of stock

13

PIPE, FUEL 1

(164-24311-00-00)

1
Out of stock

14

CLIP 101235600

90467-08003-00

1

$6.13

In stock
