1972 Yamaha RT2MX (RT2MX) Cylinder Head - Cylinder Diagram

← All diagrams

Find the part on the Cylinder Head - Cylinder diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

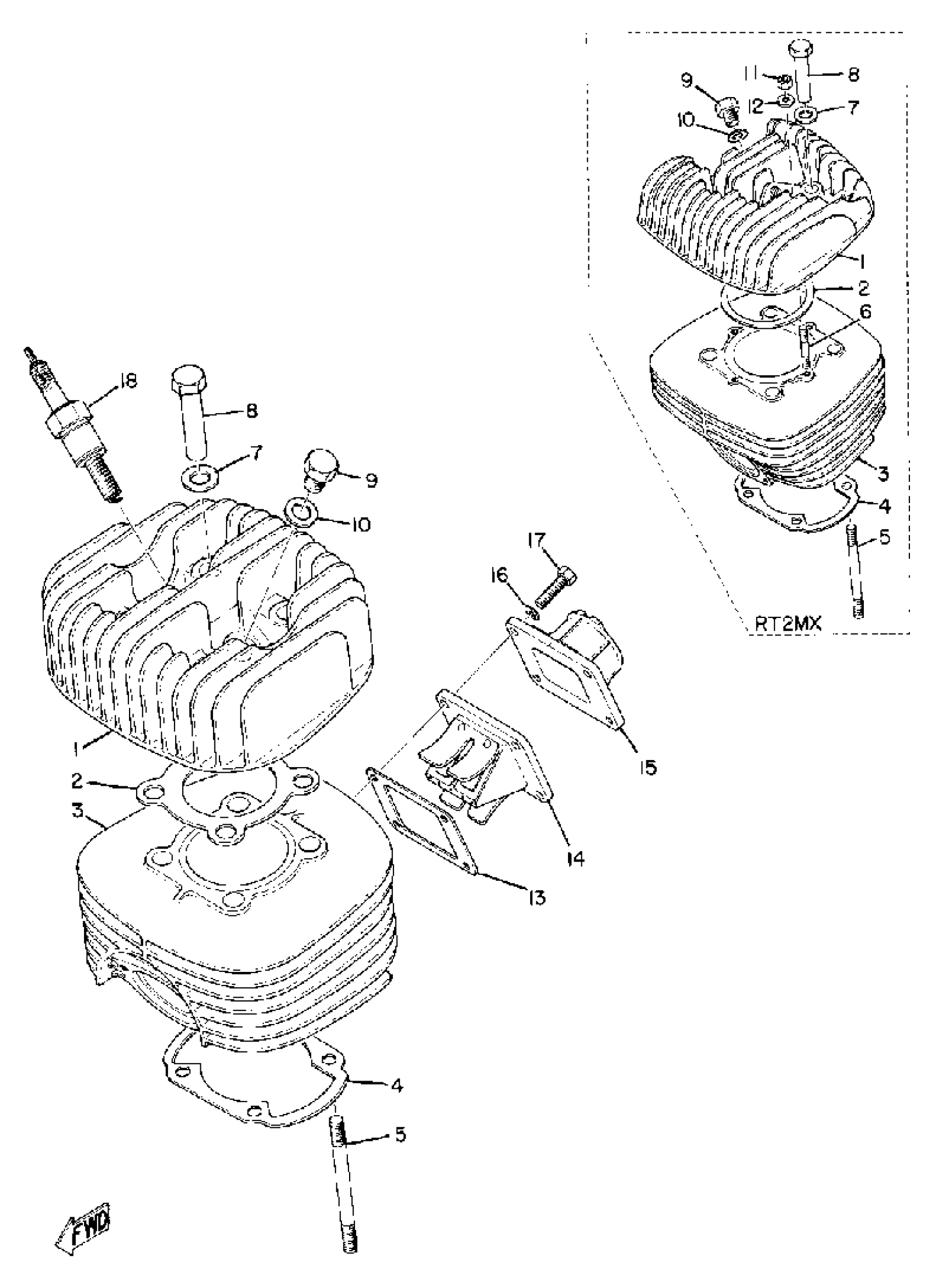

1972 Yamaha RT2MX (RT2MX) Cylinder Head - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(322-11111-00-00)

1
Out of stock

1

HEAD, CYLINDER 1

(324-11111-01-00)

1
Out of stock

2

GASKET, CYLINDER HEAD

214-11181-09-00

1
Out of stock

2

GASKET (275-11181-00)

90430-83065-00

1
Out of stock

3

CYLINDER 1

(322-11311-00-00)

1
Out of stock

3

CYLINDER 1

(324-11311-00-00)

1
Out of stock

4

GASKET, CYLINDER

214-11351-09-00

1
Out of stock

4

GASKET, CYLINDER

275-11351-09-00

1
Out of stock

5

BOLT, STUD (214-11361-00)

90116-10089-00

1
Out of stock

6

BOLT, STUD(3XV)

90116-08564-00

1
Out of stock

7

WASHER, PLATE (3X3)

90201-15797-00

1
Out of stock

8

NUT, SPEC''L SHAPE (214-11171-00)

90179-10178-00

1
Out of stock

8

NUT, SPEC''L SHAPE

(90179-10182-00)

1
Out of stock

9

PLUG, BLIND

90340-14022-00

1
Out of stock

10

GASKET

214-11198-01-00

1
Out of stock

11

NUT(6L2)

95333-08600-00

—
Out of stock

12

WASHER, PLAIN

92990-08200-00

1
Out of stock

13

GASKET, VALVE SEAT

3TT-13621-00-00

—
Out of stock

14

REED VALVE ASSY

10V-13610-01-00

—
Out of stock

15

MANIFOLD, INTAKE

(310-13555-00-00)

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1
Out of stock

17

BOLT, HEXAGON

97017-06025-00

—
Out of stock

18

SPARK PLUG B9EN

(94701-00016-00)

1
Out of stock
