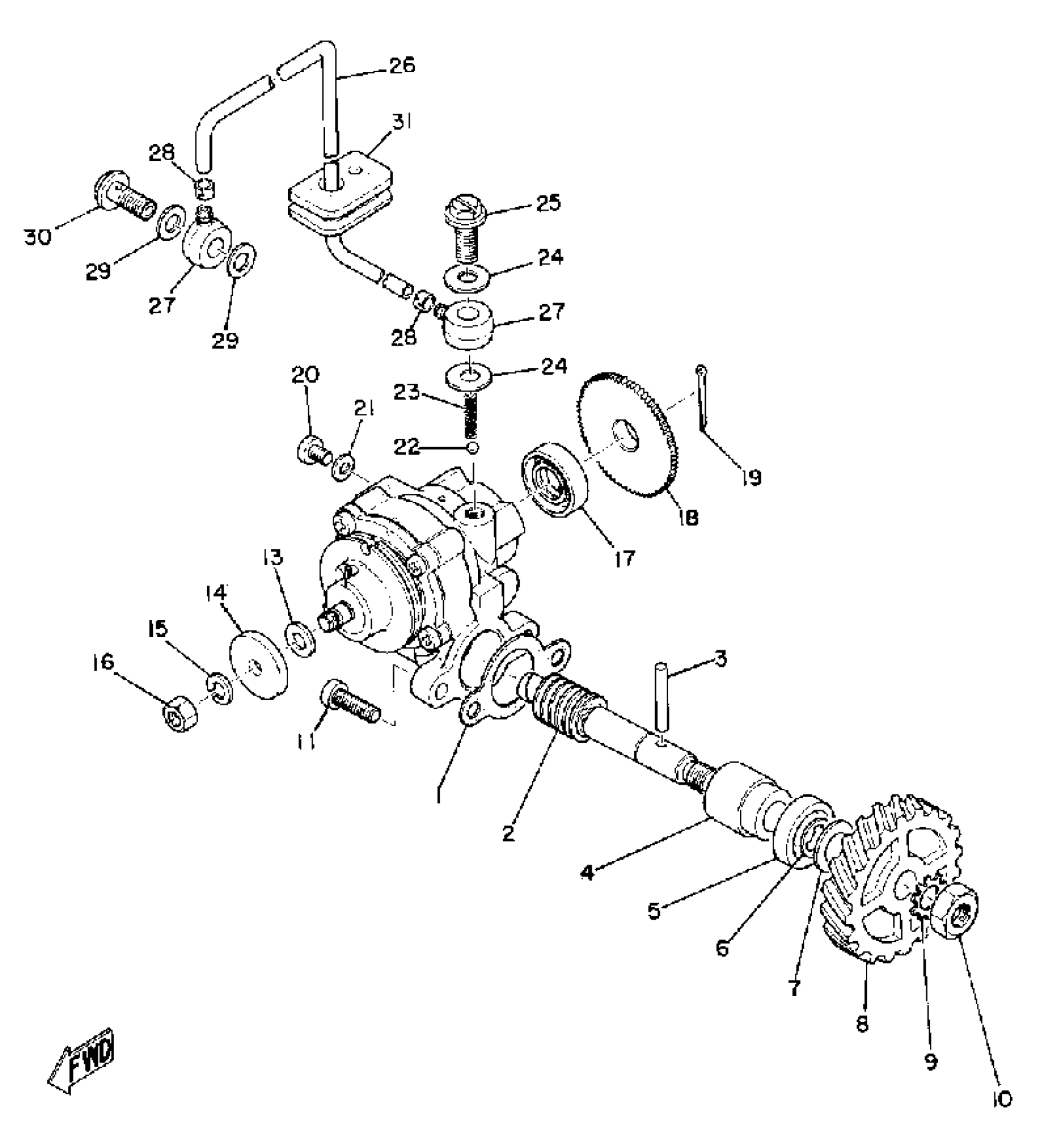

Yamaha RT2MX (RT2MX) 1972 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

(214-13101-04-00)

Unavailable

1

OIL PUMP ASSEMBLY

(275-13101-03-00)

Unavailable

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

(214-13175-01-00)

Unavailable

2

SHAFT, WORM (278-13175-00)

278-13175-01-00

Unavailable

3

PIN,DOWEL (137)

93603-22028-00

$3.76

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

6

CIRCLIP(2R6)

99001-08600-00

$8.49

7

WASHER, PLATE(52H)

90201-105J4-00

$9.49

8

GEAR, PUMP DRIVE

(214-13178-01-00)

Unavailable

9

WASHER (688)

92990-08400-00

Unavailable

10

. NUT

95380-08700-00

Unavailable

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

13

SHIM,PLUNGER

137-13137-00-03

$5.49

13

SHIM,PLUNGER

137-13137-00-05

Unavailable

14

PLATE, ADJUSTING

137-13138-01-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

OIL SEAL (J10)

93101-10090-00

Unavailable

18

PLATE, STARTER

(137-13128-00-00)

Unavailable

19

. PIN, COTTER

91401-12018-00

Unavailable

20

SCREW, BIND

98980-04008-00

Unavailable

21

GASKET 137131870000

90430-04004-00

Unavailable

22

BALL

93505-32002-00

Unavailable

23

SPRING, COMPRESSION

(90501-02017-00)

Unavailable

24

GASKET(3FP)

90430-06224-00

Unavailable

25

BOLT UNION 137131650000

90401-06001-00

Unavailable

26

HOSE (L700)

90445-05M07-00

Unavailable

27

BANJO, DELIVERY PIPE

214-13162-01-00

Unavailable

28

CLIP (214-13164-00)

90468-02033-00

Unavailable

29

GASKET(3FP)

90430-06224-00

Unavailable

30

BOLT UNION 137131650000

90401-06001-00

Unavailable

31

. HOLDER, OIL PIPE

(363-13174-00-00)

Unavailable
