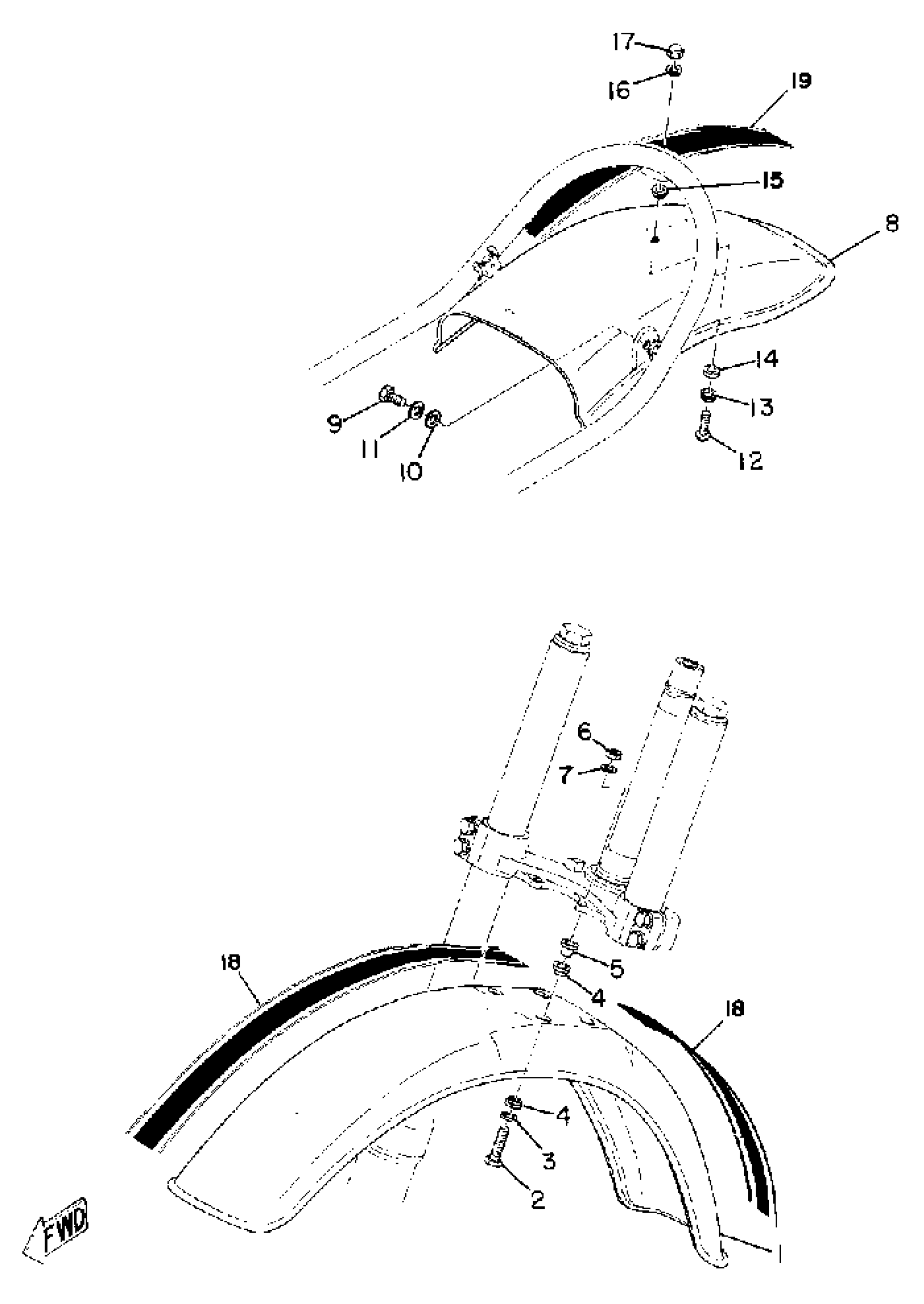

Yamaha RT2MX (RT2MX) 1972 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(322-21510-00-01)

Unavailable

1

FENDER, FRONT

(322-21510-00-02)

Unavailable

2

BOLT(JF7)

97080-06030-00

$5.49

3

WASHER, PLATE

90201-06380-00

$0.60

4

DAMPER, FENDER

322-21541-00-00

$7.99

5

COLLAR

90387-06158-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

FENDER, REAR

(322-21610-00-01)

Unavailable

8

FENDER, REAR

(322-21610-00-02)

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, PLATE

90201-06380-00

$0.60

11

WASHER, SPRING

92995-06100-00

Unavailable

12

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

13

WASHER, SPECIAL SHAPE

90209-06087-00

Unavailable

14

DAMPER 2

(322-21639-00-00)

Unavailable

15

DAMPER, FENDER

322-21541-00-00

$7.99

16

WASHER, SPRING

92995-06100-00

Unavailable

17

NUT (J17)

95380-06800-00

Unavailable

18

MOLD, FENDER

(322-21519-00-00)

Unavailable

18

MOLD, FENDER

(324-21519-00-00)

Unavailable

19

STRIPE, REAR FENDER

(322-21619-00-00)

Unavailable

19

STRIPE, REAR FENDER

(324-21619-00-00)

Unavailable
