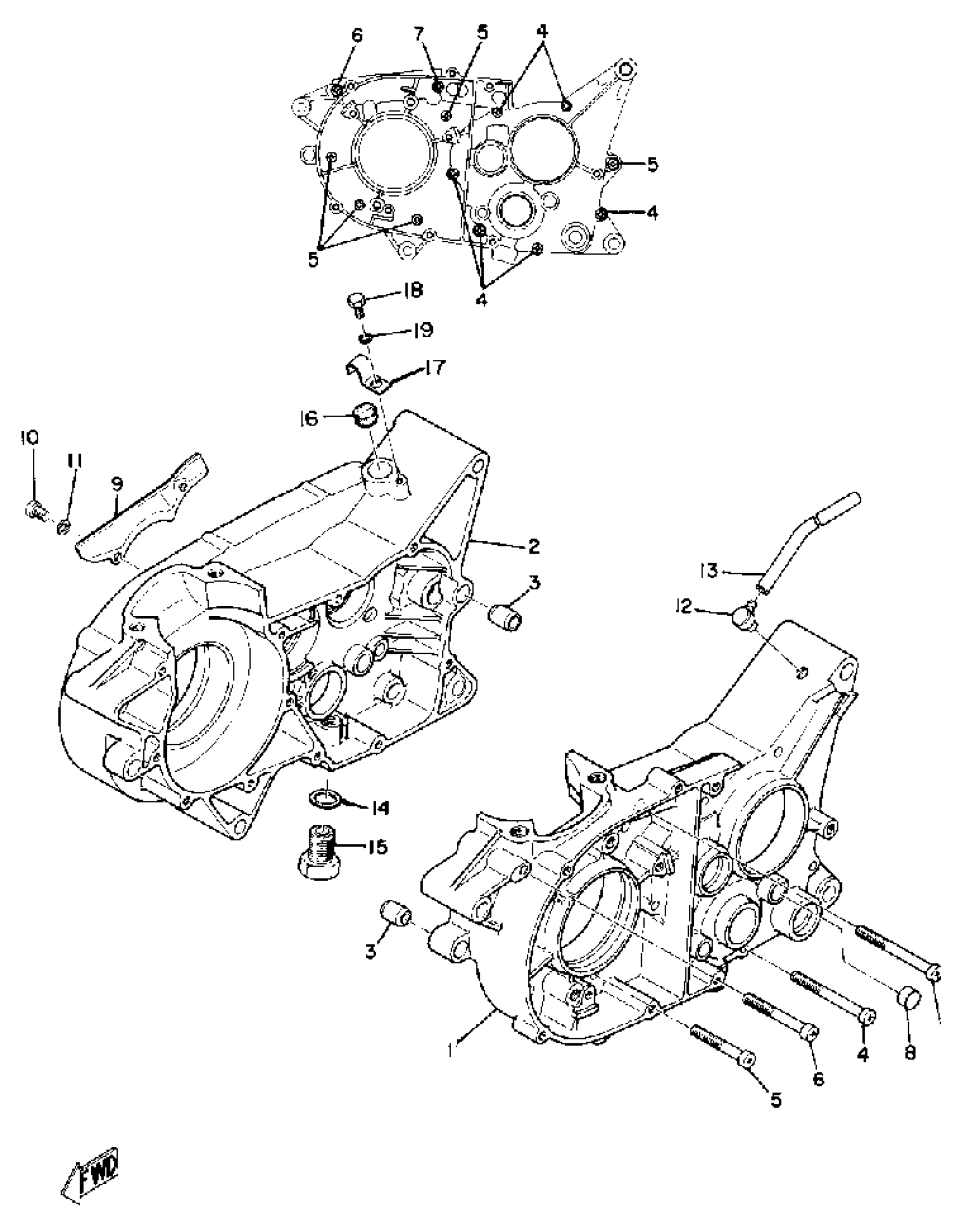

Yamaha RT2MX (RT2MX) 1972 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(322-15111-00-00)

Unavailable

1

CRANKCASE 1

(324-15111-00-00)

Unavailable

2

CRANKCASE 2

(322-15121-00-00)

Unavailable

2

CRANKCASE 2

(324-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW PAN HEAD

98580-06565-00

Unavailable

5

SCREW PAN HEAD

98580-06545-00

$5.60

6

SCREW, BIND (JH1)

98580-06560-00

Unavailable

7

SCREW PAN HEAD

98580-06565-00

Unavailable

8

PLUG, BLIND

214-15385-00-00

Unavailable

9

COVER

(214-15492-00-00)

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

BREATHER

583-15371-00-00

$6.99

13

HOSE(7EG)

90446-07241-00

$10.49

14

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

15

BOLT

90109-14385-00

Unavailable

16

PLUG(12Y)

90338-16029-00

Unavailable

17

CLAMP 363154850100

90462-05005-00

Unavailable

18

BOLT(3JP)

97017-06010-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable
