1972 Yamaha RT2MX (RT2MX) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

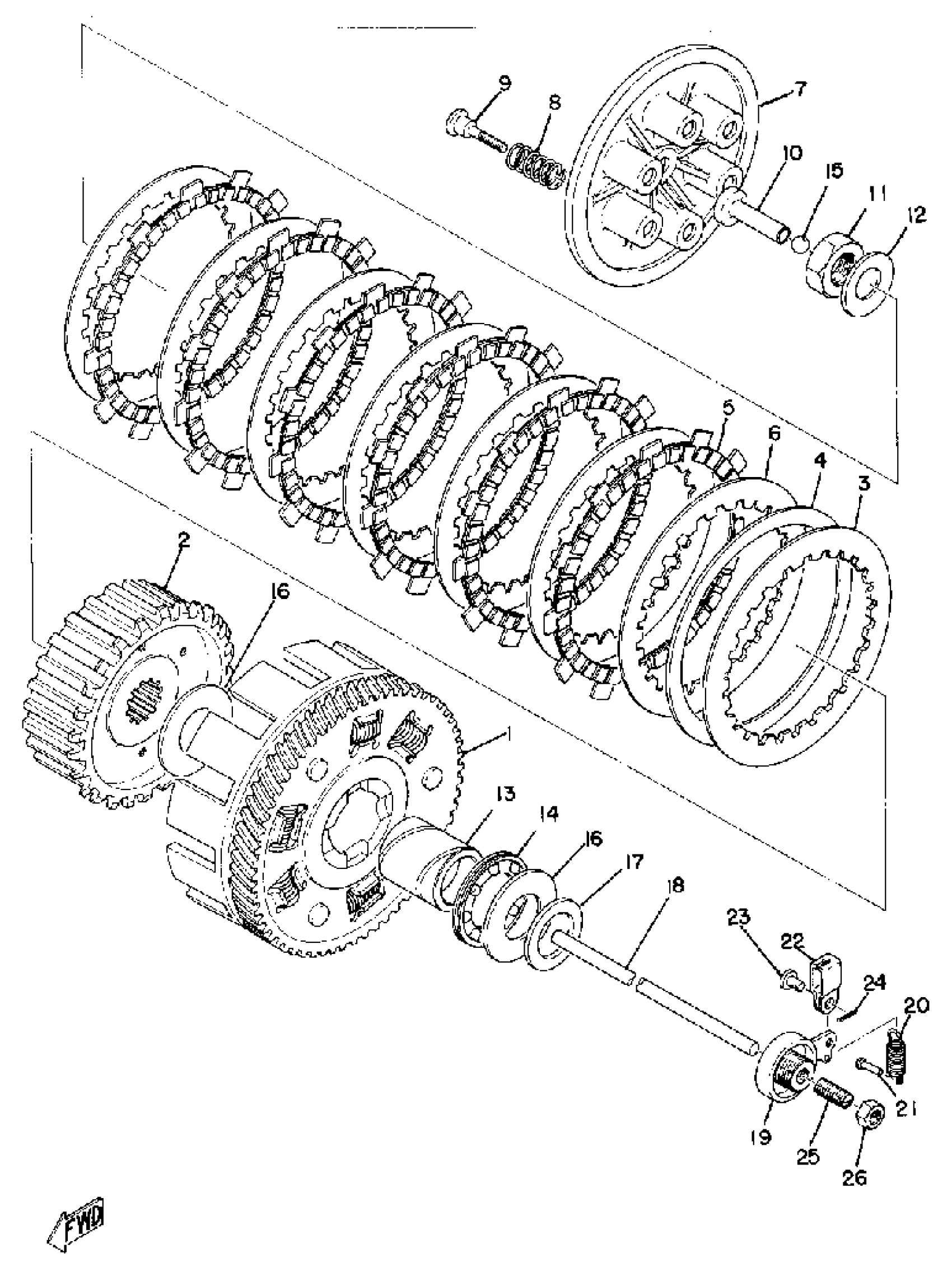

1972 Yamaha RT2MX (RT2MX) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(322-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(322-16301-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(324-16301-00-00)

1
Out of stock

2

BOSS, CLUTCH

(214-16371-02-00)

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

2A--

1
Out of stock

3

. PLATE, CLUTCH 1

214-16324-00-00

1
Out of stock

4

SPACER, CLUTCH SPR

(214-16332-00-00)

1
Out of stock

5

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

5

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

6

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

7

. PLATE, PRESSURE 1

214-16351-00-00

1
Out of stock

7

UNAVAILABLE IN PRICE BOOK

7A--

1
Out of stock

8

SPRING, COMPRESSION (400)

90501-20361-00

1

$10.92

In stock

8

SPRING, COMPRESSION

(90501-23139-00)

1
Out of stock

9

SCREW, SPEC''L SHAPE

(90149-05071-00)

1
Out of stock

10

ROD, PUSH

174-16356-00-00

—
Out of stock

11

NUT

90170-18089-00

1
Out of stock

12

SPRING

214-16119-00-00

—
Out of stock

13

SPACER 1

(214-16181-00-00)

1
Out of stock

14

BEARING, FLAT #41

93341-23307-00

1
Out of stock

15

BALL

93505-16006-00

—

$2.22

In stock

16

PLATE, THRUST (2)

170-16164-00-00

—
Out of stock

17

WASHER, PLATE(1FK)

90201-252K4-00

—
Out of stock

18

ROD, PUSH 2

183-16357-00-00

1
Out of stock

19

PUSH LEVER ASSEMBLY

214-16340-00-00

1
Out of stock

20

SPRING, TENSION

90506-10020-00

1
Out of stock

21

HOOK, SPRING

132-16346-00-00

—
Out of stock

22

JOINT

214-16389-00-00

—
Out of stock

23

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

24

. PIN, COTTER

91401-10015-00

1
Out of stock

25

BOLT, SET (214-16343-00)

90113-08017-00

1
Out of stock

26

NUT

90179-08179-00

—
Out of stock
