1972 Yamaha DT2 (RT2) Shifter A Diagram

← All diagrams

Find the part on the Shifter A diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

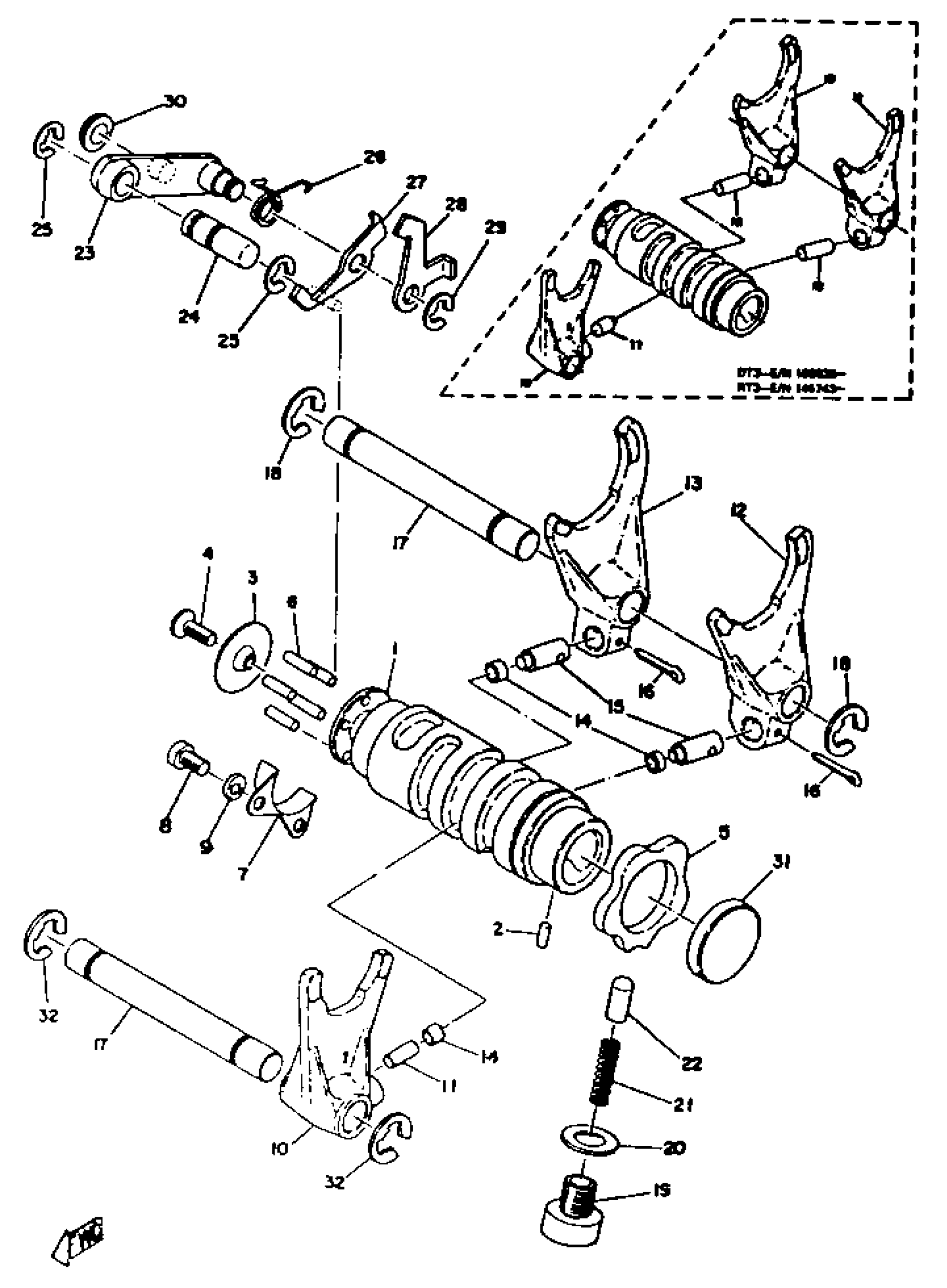

1972 Yamaha DT2 (RT2) Shifter A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

308-18541-00-00

1
Out of stock

2

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

3

PLATE, SIDE 1

214-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PLATE, STOPPER

(278-18141-00-00)

1
Out of stock

6

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

7

GUIDE

214-18179-00-00

1
Out of stock

8

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

FORK, SHIFT 1

291-18511-01-00

1
Out of stock

11

PIN, SPEC''L SHAPE

(90249-08089-00)

1
Out of stock

11

PIN, DOWEL

(93605-13077-00)

1
Out of stock

12

FORK, SHIFT 2

291-18512-02-00

1
Out of stock

13

FORK, SHIFT 3

(291-18513-02-00)

1
Out of stock

14

PIN,SPEC'L SHAPE

90249-05035-00

1
Out of stock

15

PIN, SPEC''L SHAPE (214-18552-00)

90249-05042-00

1
Out of stock

15

PIN, STRAIGHT

90250-08017-00

1
Out of stock

16

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

17

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

18

CIRCLIP

99006-10600-00

—

$6.91

In stock

19

SCREW, SPRING

(308-18577-01-00)

1
Out of stock

19

BOLT (59W)

90109-127A3-00

1
Out of stock

20

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

21

SPRING, CAM STOPPER

(308-18557-00-00)

1
Out of stock

21

SPRING, COMPRESSION

90501-09050-00

1
Out of stock

21

SPRING, COMPRESSION

(90501-10066-00)

1
Out of stock

22

STOPPER, CAM

137-18547-00-00

1
Out of stock

23

BRACKET

(214-18128-00-00)

1
Out of stock

24

AXLE, PAWL HOLDER

(214-18188-00-00)

1
Out of stock

25

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

26

SPRING, TORSION

90508-08007-00

1
Out of stock

27

LEVER, SHIFT 4

(214-18152-00-00)

1
Out of stock

28

LEVER, SHIFT 3

(214-18151-00-00)

1
Out of stock

29

CIRCLIP

99080-07600-00

1

$2.89

In stock

30

ROLLER, SHIFT LEVER

214-18178-00-00

1
Out of stock

31

PLUG, SPEC''L SHAPE

(90338-32031-00)

1
Out of stock

32

CIRCLIP

99006-10600-00

—

$6.91

In stock
