1972 Yamaha DT2 (RT2) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

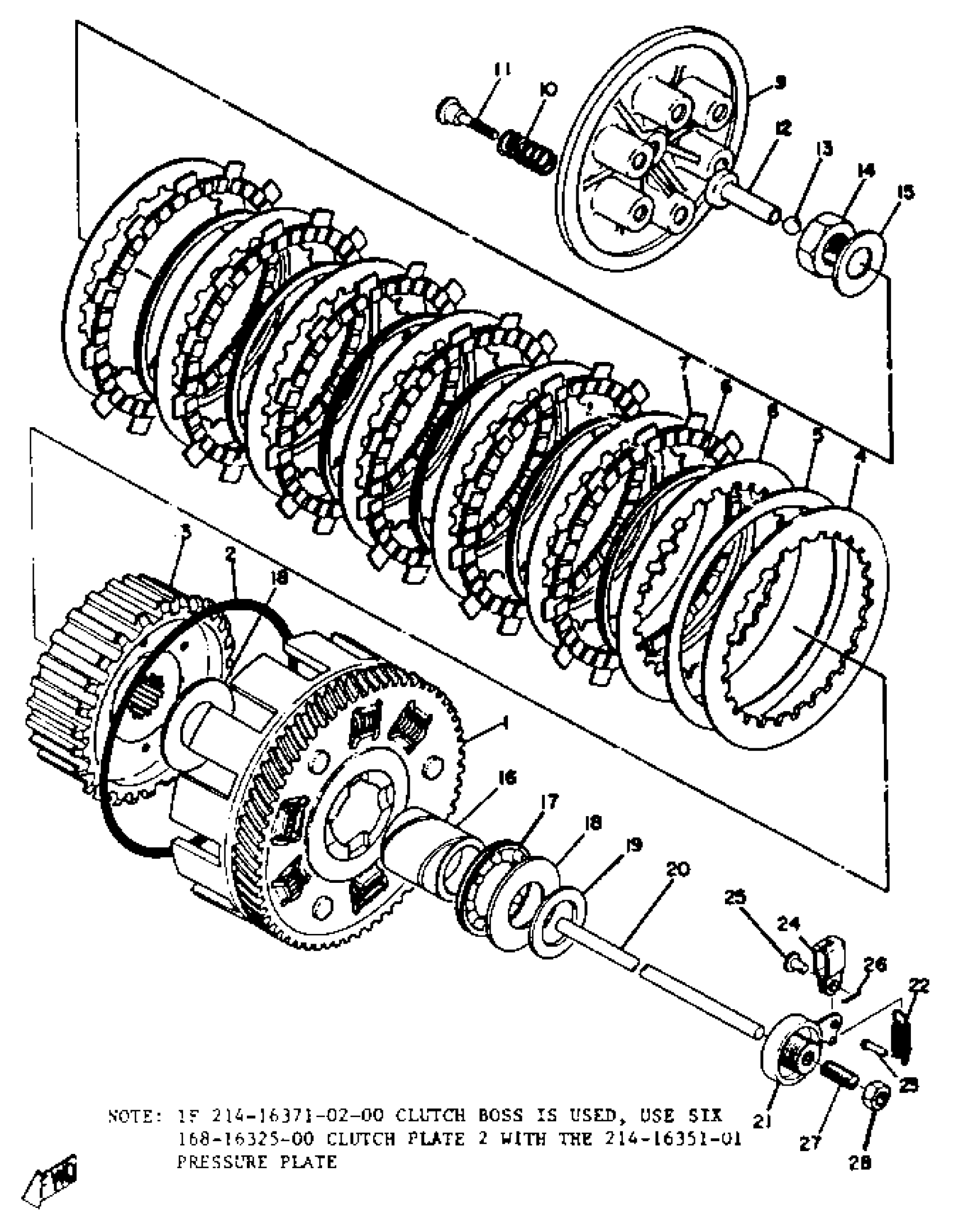

1972 Yamaha DT2 (RT2) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRVEN GEAR

(214-16150-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(214-16301-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(275-16301-00-00)

1
Out of stock

2

. O-RING

93211-15149-00

1
Out of stock

3

BOSS, CLUTCH

(214-16371-02-00)

1
Out of stock

4

. PLATE, CLUTCH 1

214-16324-00-00

1
Out of stock

5

SPACER, CLUTCH SPR

(214-16332-00-00)

1
Out of stock

6

. RING, CUSHION

168-16367-00-00

1
Out of stock

6

. RING, CUSHION

168-16367-00-00

1
Out of stock

7

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

7

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

8

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

8

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

9

. PLATE, PRESSURE 1

214-16351-00-00

1
Out of stock

9

PLATE, PRESSURE 1

(214-16351-01-00)

1
Out of stock

10

—

$6.17

In stock

11

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

12

ROD, PUSH

174-16356-00-00

—
Out of stock

13

BALL

93505-16006-00

—

$2.22

In stock

14

NUT

90170-18089-00

1
Out of stock

15

SPRING

214-16119-00-00

—
Out of stock

16

SPACER 1

(214-16181-00-00)

1
Out of stock

17

BEARING, FLAT #41

93341-23307-00

1
Out of stock

18

PLATE, THRUST (2)

170-16164-00-00

—
Out of stock

19

WASHER, PLATE(1FK)

90201-252K4-00

—
Out of stock

20

ROD, PUSH 2

183-16357-00-00

1
Out of stock

21

PUSH LEVER ASSEMBLY

214-16340-00-00

1
Out of stock

22

SPRING, TENSION

90506-10020-00

1
Out of stock

23

HOOK, SPRING

132-16346-00-00

—
Out of stock

24

JOINT

214-16389-00-00

—
Out of stock

25

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

26

. PIN, COTTER

91401-10015-00

1
Out of stock

27

BOLT, SET (214-16343-00)

90113-08017-00

1
Out of stock

28

NUT

90179-08179-00

—
Out of stock
