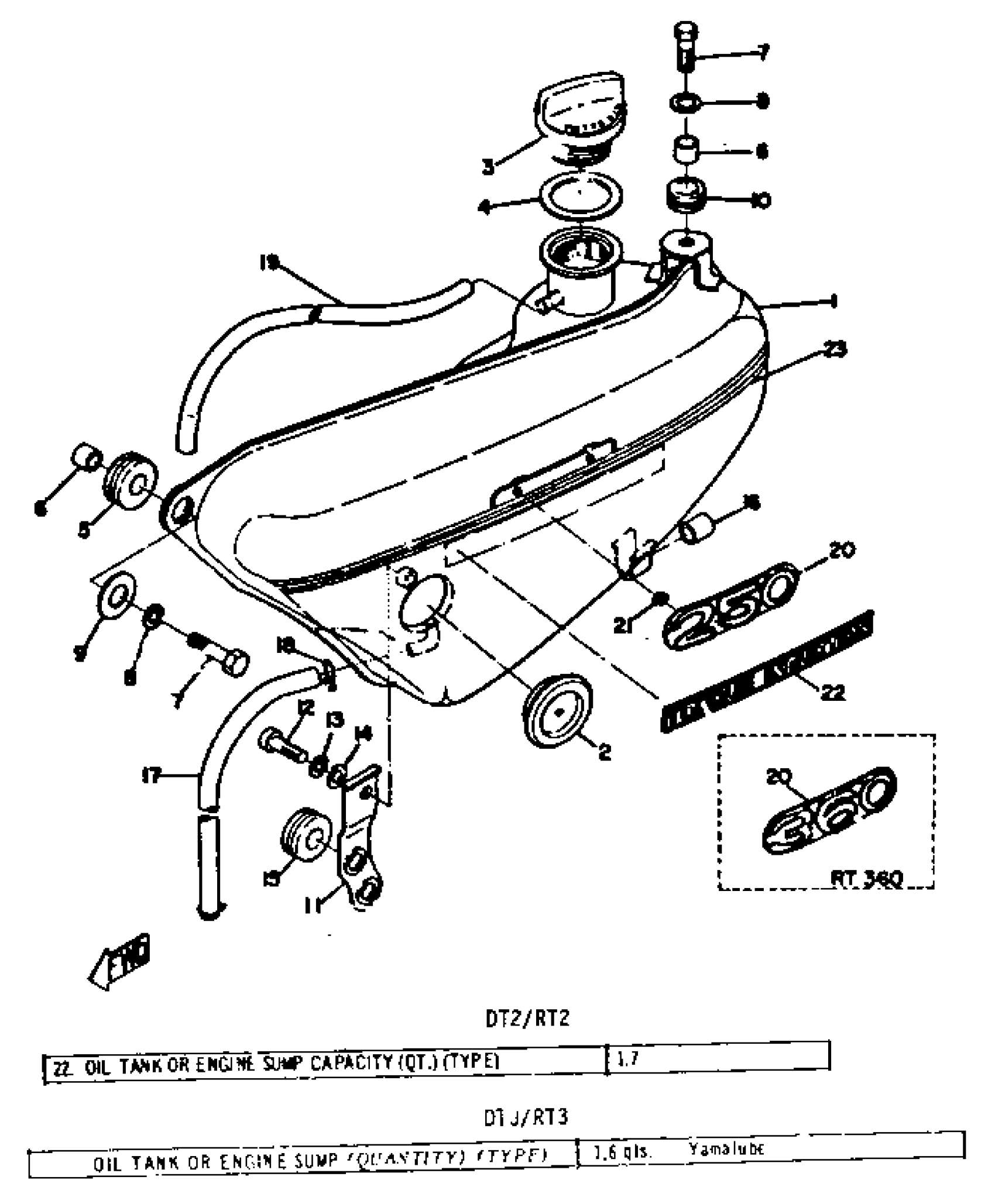

Yamaha RT2 (DT2) 1972 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY 001

(308-21705-01-11)

Unavailable

1

OIL TANK ASSEMBLY 000

(308-21705-01-35)

Unavailable

1

OIL TANK ASSEMBLY

(308-21705-01-K1)

Unavailable

1

OIL TANK ASSEMBLY

(308-21705-01-M3)

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

4

GASKET 214217720000

90430-29114-00

$8.49

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR (J10)

90387-06026-00

$8.49

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE

90201-06380-00

$0.60

10

GROMMET 839774310000

90480-14023-00

$7.49

11

BRACKET, OIL TANK 1

(308-21351-00-33)

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

15

GROMMET 214217460000

90480-10091-00

Unavailable

16

DAMPER, OIL TANK

437-21779-00-00

Unavailable

17

HOSE (L600)

90445-083J5-00

Unavailable

18

CLIP 101235600

90467-08003-00

Unavailable

19

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

20

EMBLEM 6

(308-21786-00-35)

Unavailable

20

NO LONGER AVAILABLE

308-21786-02-00

Unavailable

20

EMBLEM 6

(311-21786-00-11)

Unavailable

20

EMBLEM 6

(311-21786-02-00)

Unavailable

21

NUT

(304-21791-00-00)

Unavailable

22

EMBLEM 7

(308-21787-00-00)

Unavailable

22

EMBLEM 7

(308-21787-01-00)

Unavailable

23

GRAPHIC

(308-21799-00-33)

Unavailable
