1970 Yamaha RT1 (RT1M) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

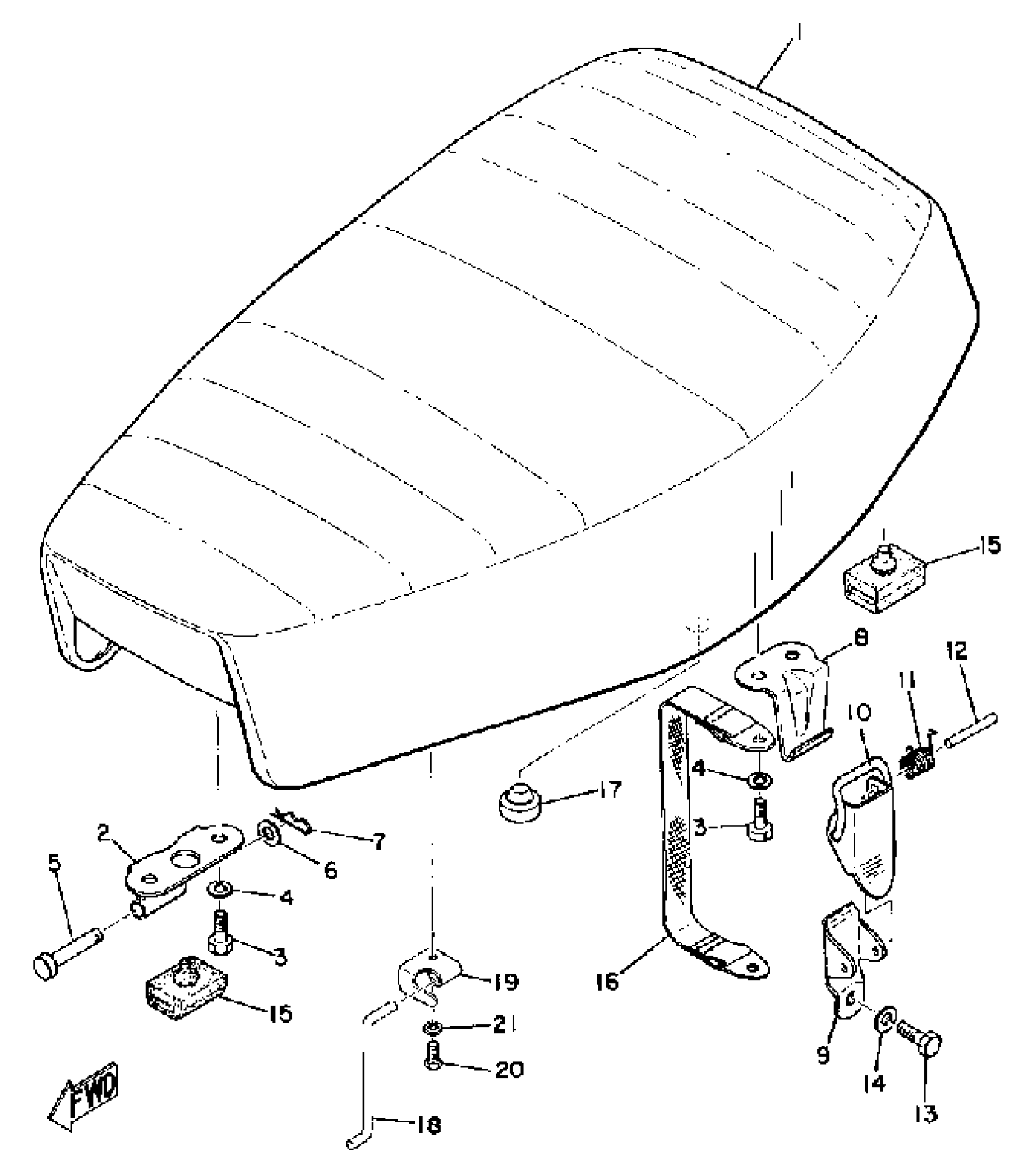

1970 Yamaha RT1 (RT1M) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SINGLE SEAT

(214-24711-00-00)

1
Out of stock

1

SINGLE SEAT ASSEMBLY

(275-24710-00-00)

1
Out of stock

2

HINGE, SEAT

(214-24726-00-00)

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

PIN, CLEVIS

91701-05055-00

1
Out of stock

6

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

7

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

8

BRACKET, SEAT

(214-24728-00-33)

1
Out of stock

9

BRACKET, SEAT

214-24718-00-00

1
Out of stock

10

LEVER, SEAT

214-24776-00-33

1
Out of stock

11

. SPRING, TORSION

90508-10012-00

1
Out of stock

12

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

13

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

DAMPER, SEAT

214-24724-00-00

—

$6.72

In stock

16

BAND, SEAT FITTING

(214-24778-00-00)

1
Out of stock

17

STOPPER, MAIN STAND

116-27114-00-00

—

$10.21

In stock

18

BRACKET, SEAT

(278-24748-00-00)

1
Out of stock

19

BRACKET, SEAT

(278-24748-00-00)

1
Out of stock

20

BOLT (661)

97013-06012-00

1

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
