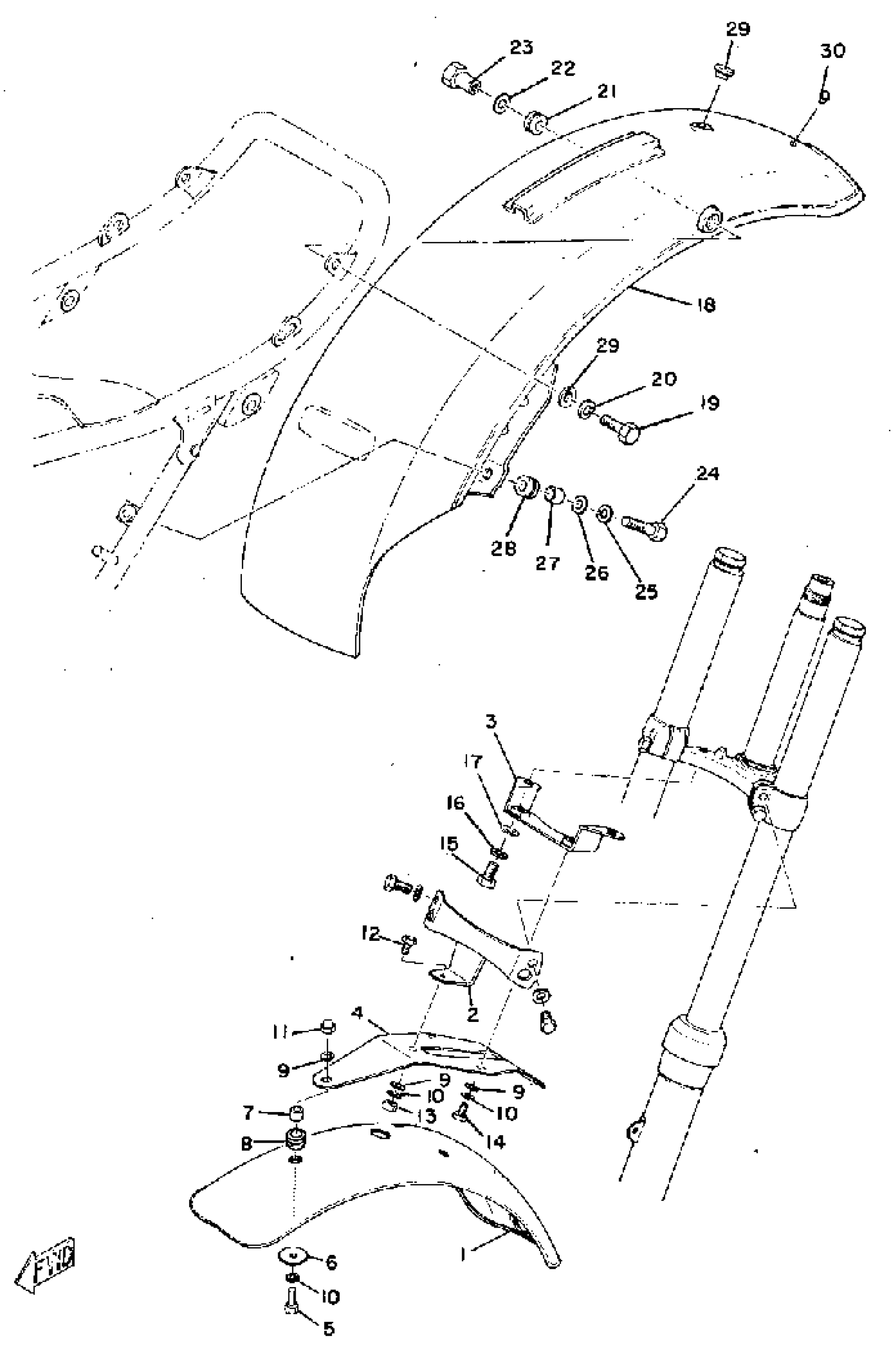

Yamaha RT1M (RT1) 1970 FRONT FENDER - REAR FENDER (RT1M, RT1MX) Diagram

#

Description
Price

1

FENDER, FRONT

(284-21510-00-35)

Unavailable

2

STAY, FENDER 1

(284-21513-00-35)

Unavailable

3

STAY, FENDER 2

284-21514-00-35

Unavailable

4

BRACKET, FENDER

(284-21512-00-35)

Unavailable

5

BOLT, HEXAGON

97017-06020-00

$2.37

6

WASHER PLATE 256216150000

90201-06062-00

$6.62

6

WASHER, PLATE

90201-06380-00

$0.54

7

COLLAR (J10)

90387-06026-00

$6.45

8

GROMMET (1E5)

90480-13163-00

$5.55

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

WASHER, SPRING

92995-06100-00

$2.95

11

NUT (J17)

95380-06800-00

$6.28

12

BOLT (661)

97013-06012-00

$4.40

13

NUT, HEXAGON

95380-06600-00

$4.11

14

BOLT (661)

97013-06012-00

$4.40

15

BOLT, HEXAGON

97013-08016-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

$2.36

18

FENDER, REAR

(275-21610-00-35)

Unavailable

19

BOLT, HEXAGON

97017-06020-00

$2.37

20

WASHER, SPRING

92995-06100-00

$2.95

21

DAMPER, REAR

168-21639-00-00

Unavailable

22

WASHER, PLATE

90201-15239-00

Unavailable

23

NUT, REAR FENDER

(275-21635-00-00)

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable

25

WASHER, SPRING

92995-06100-00

$2.95

26

WASHER, PLATE

90201-06380-00

$0.54

27

COLLAR (J10)

90387-06026-00

$6.45

28

GROMMET 839774310000

90480-14023-00

Unavailable

29

GROMMET 285216390000

90480-14100-00

Unavailable

30

DAMPER 2

5A8-21639-00-00

Unavailable
