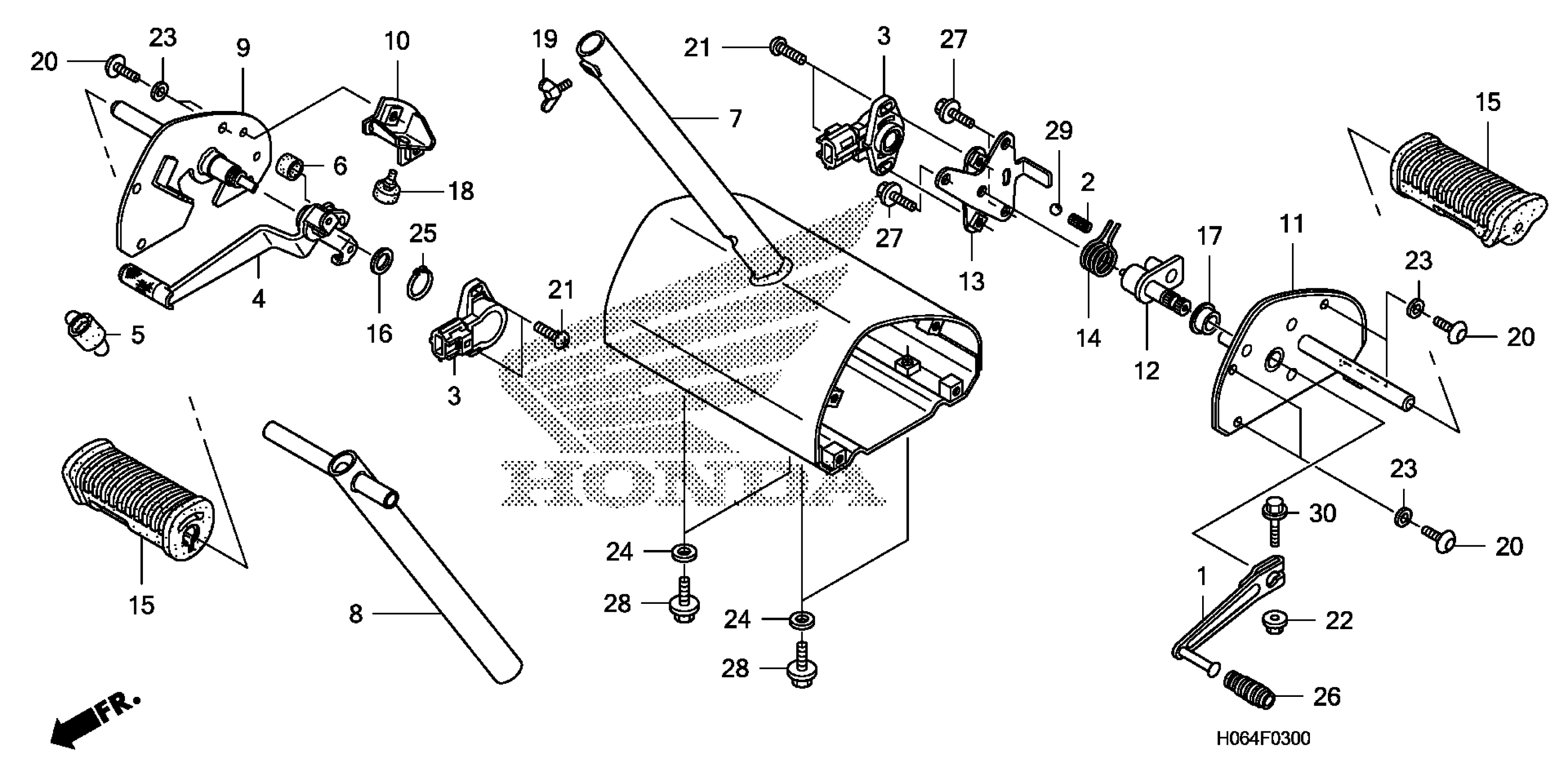

Honda RT1A (07) SMART, JPN, VIN# JH2TG010-7K000001 PEDAL@STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-H06-000

$15.40

2

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

3

SENSOR ASSY,THROT This part replaces 37890-HN2-006.

37890-H09-J02

$142.61

4

PEDAL, RR. BRAKE

46500-H06-010

$60.41

5

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

6

RUBBER, MAIN STAND STOPPER

50502-KAB-000

$2.24

7

PIPE, STEP (LOWER)

50602-H06-000

$198.59

8

PIPE (UPPER)

50603-H06-000

$30.04

9

BRACKET, R. PEDAL

50610-H06-000

$121.62

10

STOPPER, R. PEDAL

50614-H06-000

$27.87

11

BRACKET, L. STEP

50620-H06-000

$86.35

12

CAM, CHANGE PEDAL

50623-H06-000

$72.07

13

PLATE, CHANGE PEDAL

50624-H06-000

$15.15

14

SPRING, CHANGE PEDAL

50629-H06-000

$3.69

15

RUBBER, STEP

50660-H06-000

$4.50

16

BUSH, WASHER

53312-657-000

$9.38

17

BUSH, CHANGE ARM

54429-762-003

$2.79

18

RUBBER, STOPPER

68346-ZC3-700

$1.81

19

BOLT, WING (6X12)

90120-HA7-770

$5.56

20

BOLT, SOCKET (6X13)

90130-MEE-000

$1.75

21

SCREW, PAN (5X16)

93500-05016-0A

$0.90

22

NUT, FLANGE (6MM)

94050-06070

$1.44

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

24

WASHER, PLAIN (8MM)

94101-08000

Unavailable

25

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

26

RUBBER, CHANGE PEDAL

95011-40000

$1.16

27

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

28

BOLT, FLANGE (8X12)

95701-08012-00

$1.04

29

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable

30

BOLT, FLANGE (6X28)

96300-06028-00

$1.37
