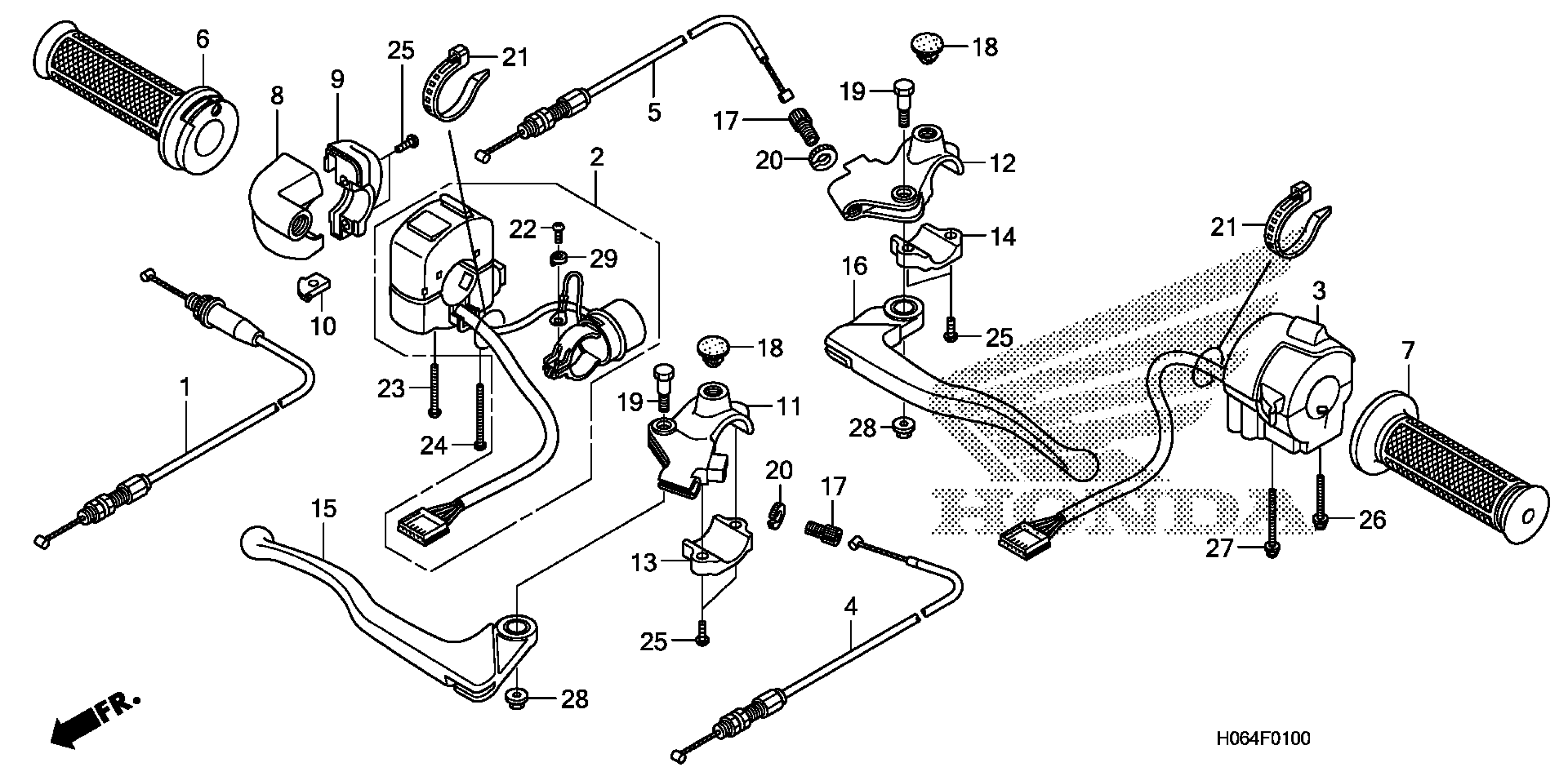

Honda RT1A (07) SMART, JPN, VIN# JH2TG010-7K000001 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-H06-000

$8.29

2

SWITCH ASSY.

35130-H06-010

$48.13

3

SWITCH, TURN SIGNAL

35200-H06-010

$57.78

4

CABLE, R. BRAKE

45430-H06-000

$5.17

5

CABLE, L. BRAKE

45440-H06-000

$5.06

6

GRIP, R.

53140-KRG-000

$13.75

7

GRIP SET, L. HANDLE This part replaces 53166-GW0-000.

53168-GW0-305

Unavailable

8

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$18.77

9

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$17.53

10

SLIDER, THROTTLE

53169-KA2-000

$4.53

11

BRACKET, R. HANDLE LEVER

53171-KE1-000

$31.49

12

BRACKET, L. HANDLE LEVER

53172-KS5-700

Unavailable

13

HOLDER, R. LEVER BRACKET

53173-KE1-000

Unavailable

14

HOLDER, L. LEVER BRACKET

53174-KE1-000

$14.11

15

LEVER, R. HANDLEBAR

53175-KE1-000

$17.45

16

LEVER, L. HANDLEBAR

53178-MG7-003

$32.62

17

BOLT, WIRE ADJUSTING

53192-H06-000

$1.07

18

PLUG, FR. FENDER

61105-KA8-000

$1.32

19

BOLT, HANDLE LEVER PIVOT

90113-HA6-770

$4.06

20

NUT, FIXING

90321-315-670

$6.80

21

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

22

SCREW, PAN (4X12)

93500-04012-0A

$0.75

22

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

23

SCREW, PAN (4X32)

93500-04032-0G

$0.43

24

SCREW, PAN (4X45)

93500-04045-0G

$0.78

25

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$0.83

26

SCREW-WASHER (5X35)

93892-05035-07

$0.99

27

SCREW-WASHER (5X45)

93892-05045-07

$1.17

28

NUT, FLANGE (6MM)

94050-06070

$1.32

29

WASHER, SPRING (4MM)

94111-04000

$0.97
