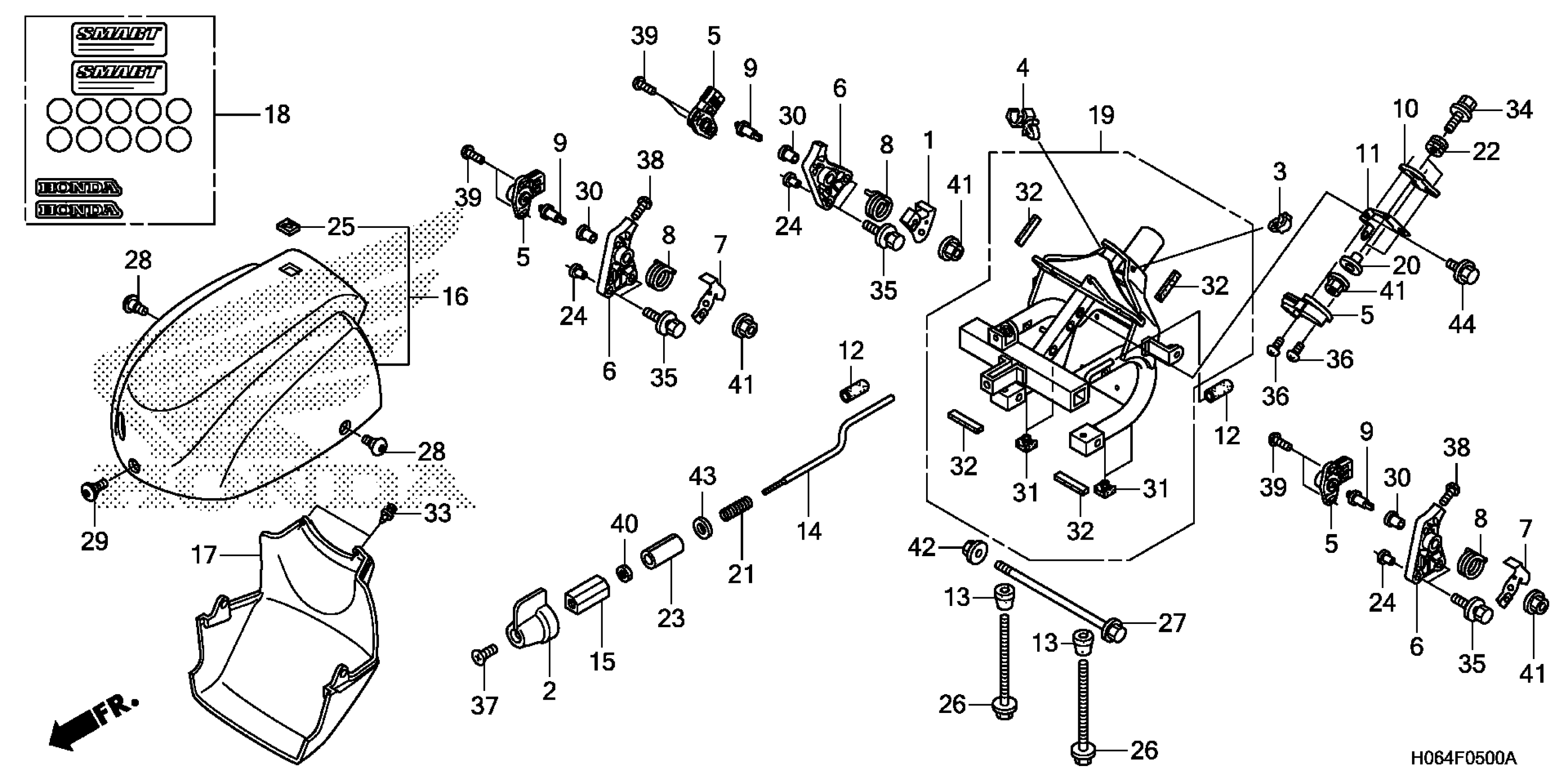

Honda RT1A (07) SMART, JPN, VIN# JH2TG010-7K000001 FRAME Diagram

#

Description
Price

1

ARM, THROTTLE

16503-H06-000

$5.93

2

LEVER, PETCOCK

16963-MY5-610

$12.30

3

CLIP A, HARNESS

32111-H06-003

$0.38

4

CLIP B, HARNESS

32112-H06-003

$0.38

5

SENSOR ASSY,THROT This part replaces 37890-HN2-006.

37890-H09-J02

$142.61

6

PANEL, BRAKE

45101-H06-000

$7.53

7

PULLEY, CABLE

45103-H06-000

$7.69

8

SPRING, ARM RETURN

45104-H06-000

$1.62

9

SHAFT, BRAKE SENSOR

45106-H06-000

$3.62

10

STAY A, SENSOR

50113-H06-000

$5.78

11

STAY B, SENSOR

50114-H06-000

$6.31

12

RUBBER, STOPPER

50121-H06-000

$1.72

13

STOPPER, SUB-FRAME

50122-H06-000

$6.35

14

ROD, ADJUST

50142-H06-000

$4.50

15

NUT, SPACER

50143-H06-000

$6.19

16

CVR (UPPER) *NH1*

50155-H06-000ZA

$22.79

17

COVER (LOWER) *NH1*

50160-H06-000ZA

$14.31

18

MARK

50170-H06-680

$16.81

19

FRAME ASSY.

50200-H06-000

$258.53

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

21

SPRING, SEAT LOCK

77302-MEE-000

$1.99

22

RUBBER, RR. FENDER MOUNTING

80106-382-770

$4.08

23

COLLAR, ADJUST ROD

80108-H06-000

$3.40

24

COLLAR, COVER MOUNTING

83505-MN0-000

$6.32

25

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

26

BOLT, FLANGE (8X95)

90001-H06-000

$5.49

27

BOLT, FLANGE (8X178)

90101-H06-000

$6.10

28

SCREW, PAN (6X14)

90113-MM5-000

$2.95

29

SCREW, SPECIAL (6X14)

90117-MCH-C10

$2.76

30

BUSH (10MM)

90303-H06-000

$1.41

31

RUB, FRAME MOUNTING

90310-H06-000

$2.32

32

RUBBER

90311-H06-000

$0.29

33

CLIP, BODY

90683-MBW-003

$1.93

34

BOLT-WASHER (6X25)

93404-06025-00

$1.01

35

BOLT-WASHER (6X30)

93404-06030-08

$3.18

36

SCREW, PAN (5X12)

93500-05012-0H

$0.90

37

SCREW, FLAT (5X10)

93600-05010-0G

$0.75

38

SCREW, TAPPING (5X12)

93911-25220

$0.71

39

SCREW, TAPPING (5X16)

93911-25420

$0.96

40

NUT, HEX. (5MM)

94001-05000-0S

$2.80

41

NUT, FLANGE (6MM)

94050-06000

$0.60

42

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

43

WASHER, PLAIN (6MM)

94103-06000

Unavailable

44

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50
