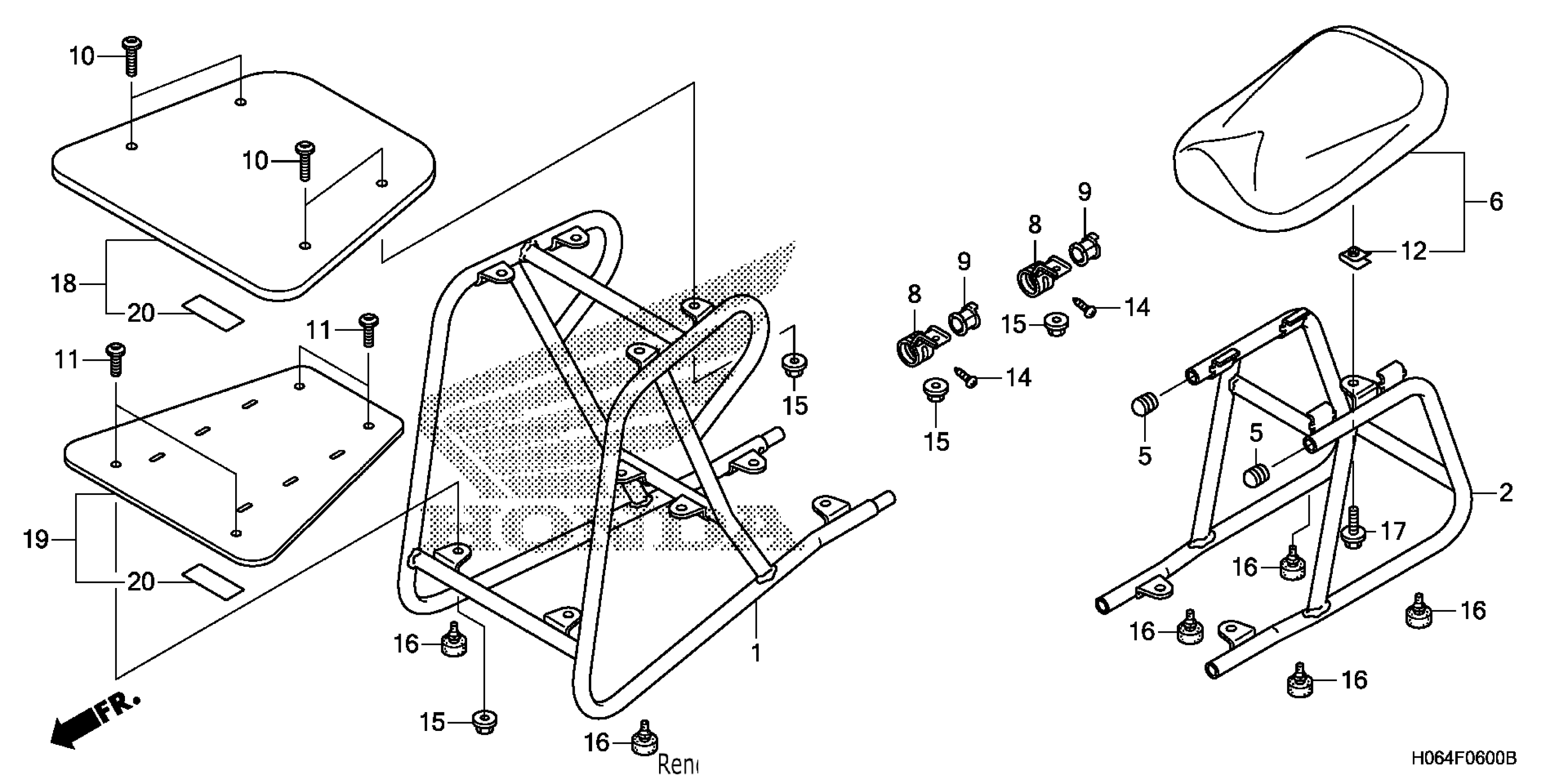

Honda RT1A (07) SMART, JPN, VIN# JH2TG010-7K000001 DESK@SEAT Diagram

#

Description
Price

1

DESK, FR.

50301-H06-640

$358.61

2

DESK, RR.

50303-H06-640

$278.70

3

PLATE, DESK (UPPER) This part replaces 50311-H06-640.

50311-H06-641

Unavailable

3

PLATE, DESK (UPPER)

50311-H06-641

Unavailable

4

PLATE, DESK (LOWER) This part replaces 50312-H06-640.

50312-H06-641

Unavailable

4

PLATE, DESK (LOWER)

50312-H06-641

Unavailable

5

CAP, PIPE END

50315-H06-000

$1.09

6

SEAT, SINGLE (TYPE1)

77100-GEZ-010ZA

$157.33

6

SEAT, SINGLE (TYPE1)

77100-H06-701ZA

$147.91

7

HOOK, SEAT

77125-GEZ-010

$3.59

8

HINGE, SEAT

77201-GEZ-000

$7.83

9

BUSH, SEAT HINGE

77205-GEZ-010

$2.80

10

BOLT, SPECIAL (6X25)

90085-MBW-000

$3.42

11

BOLT, SPECIAL (6X17)

90085-MCZ-000

$1.94

12

NUT, SPRING (6MM)

90320-747-000

$2.13

13

BOLT-WASHER (6X12)

93404-06012-07

$1.48

14

SCREW, TAPPING (4X10)

93903-34210

$0.83

15

NUT, FLANGE (6MM)

94050-06000

$0.59

16

RUBBER B, STAND STOPPER

95011-62000

$1.22

17

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

18

PLATE, DESK (UPPER)

50311-H06-641

Unavailable

19

PLATE, DESK (LOWER)

50312-H06-641

Unavailable

20

LABEL, EMISSION

87311-H06-640

$2.04
