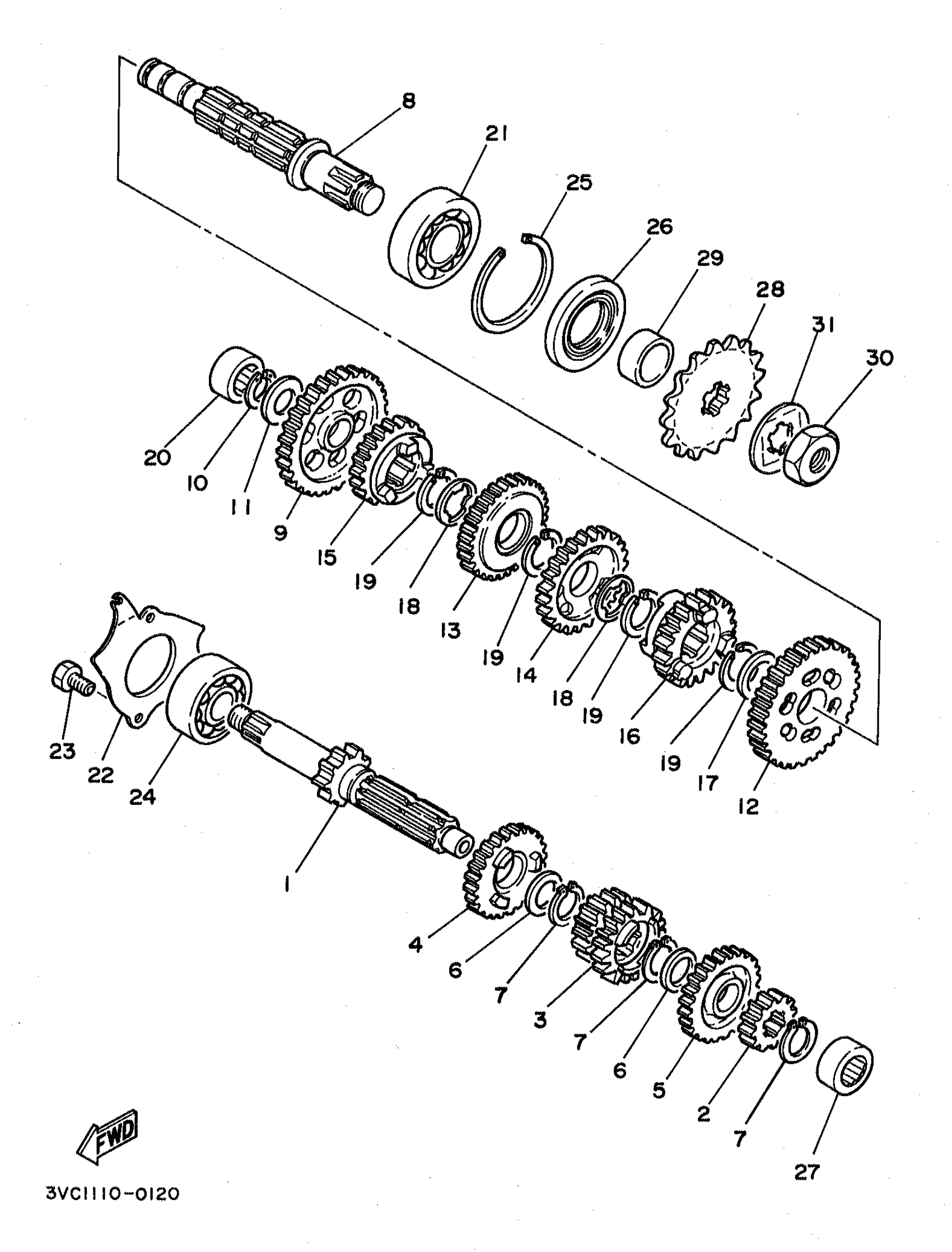

Yamaha RT180K (RT180) 3VC9 1998 TRANSMISSION Diagram

AXLE, MAIN

23K-E7411-00-00

Unavailable

GEAR, 2ND PINION

4J3-17121-00-00

Unavailable

GEAR, 3RD PINION

4J3-17131-00-00

$51.99

GEAR 5TH PINION

4J3-17151-01-00

Unavailable

GEAR, 6TH PINION

4J3-17161-00-00

Unavailable

WASHER PLATE 132172160000

90201-20266-00

$9.49

CIRCLIP (525)

93410-20038-00

$3.76

AXLE, DRIVE

23K-E7421-00-00

Unavailable

GEAR, 1ST WHEEL

5L9-E7211-00-00

Unavailable

CIRCLIP

93440-15012-00

$8.49

PLATE, SIDE

164-18561-00-00

$5.49

GEAR, 2ND WHEEL

23K-E7221-00-00

Unavailable

GEAR, 3RD WHEEL

4J3-17231-00-00

Unavailable

GEAR, 4TH WHEEL

4J3-17241-00-00

Unavailable

GEAR, 5TH WHEEL

4J3-17251-00-00

Unavailable

GEAR, 6TH WHEEL

4J3-17261-00-00

Unavailable

WASHER, PLATE (537)

90201-22555-00

Unavailable

WASHER (537)

90209-18135-00

Unavailable

CIRCLIP

93440-20800-00

Unavailable

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

PLATE, BEARING COVER

1W1-17471-01-00

Unavailable

BOLT (661)

97013-06012-00

Unavailable

BEARING(4HM)

93306-30317-00

Unavailable

. CIRCLIP

93450-52010-00

Unavailable

OIL SEAL (28X52X6-137)

93102-28023-00

Unavailable

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

COLLAR, DISTANCE

2H3-E7462-00-00

Unavailable

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

WASHER, LOCK (1L8)

90215-16127-00

Unavailable
