Description

Price

1

KICK AXLE ASSY

4F2-15660-01-00

Unavailable

2

GEAR, KICK

1W1-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$8.49

4

COVER, SPRING

401-15676-00-00

$7.99

5

SPRING, TORSION (4F2)

90508-26450-00

$11.49

6

SPACER, KICK AXLE SPRING

1W1-15666-00-00

$16.49

7

GEAR, KICK IDLE

525-15651-00-00

$68.99

8

SHIM 1

3V9-E7417-00-00

Unavailable

9

CIRCLIP

93440-15012-00

$8.49

10

KICK START ASSY

ACN-CK2TW-10-00

Unavailable

11

SPRING, COMPRESSION (1W1)

90501-10459-00

$7.49

12

BALL

93503-16003-00

$2.72

13

WASHER, PLATE (525)

90201-12541-00

$7.49

14

CIRCLIP(2R6)

99001-08600-00

$8.49

15

BOLT, SOCKET

91317-08025-00

$8.49

16

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

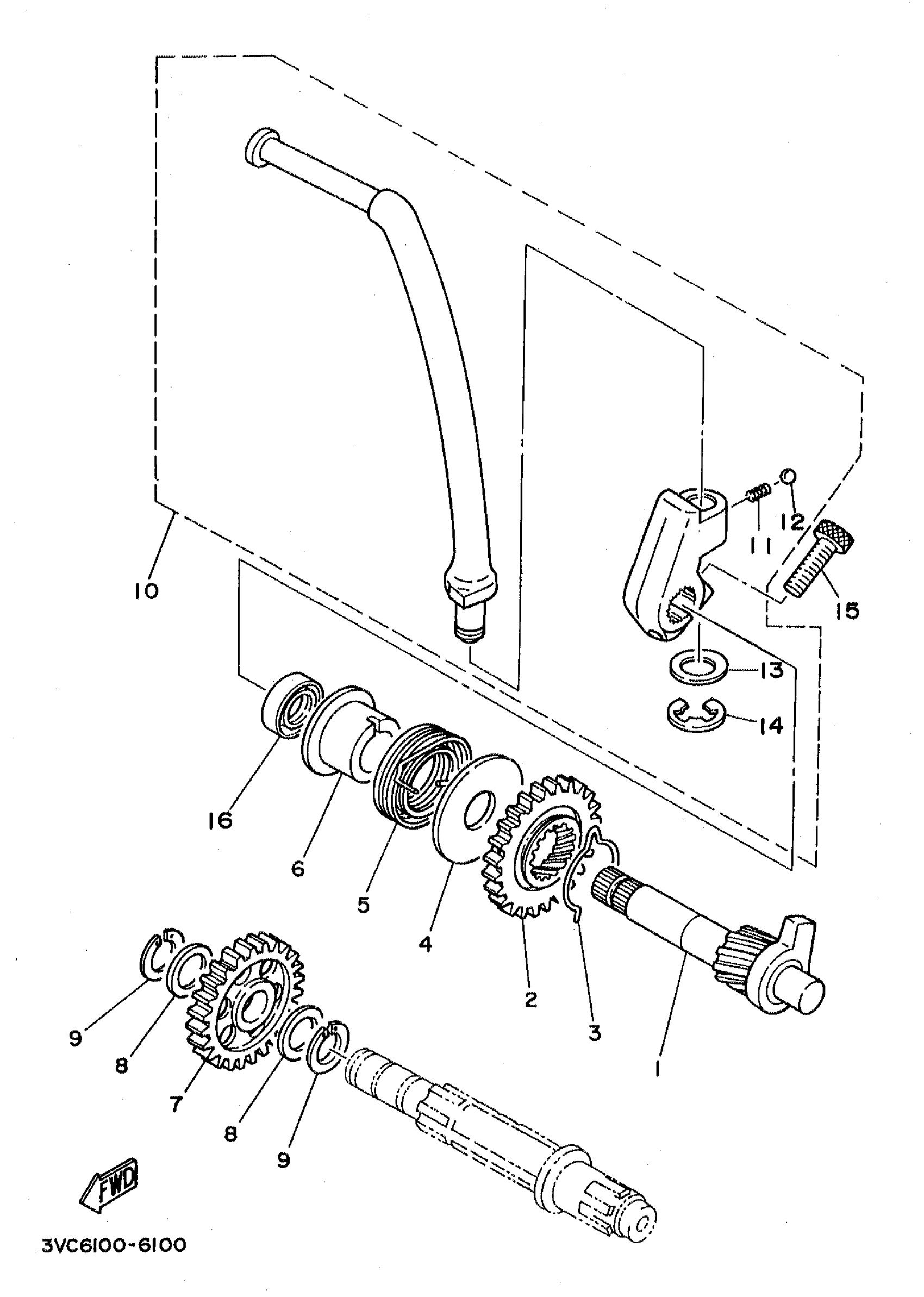

Yamaha RT180K (RT180) 3VC9 1998 STARTER Diagram

KICK AXLE ASSY

GEAR, KICK

CLIP 315156870000

COVER, SPRING

SPRING, TORSION (4F2)

SPACER, KICK AXLE SPRING

GEAR, KICK IDLE

SHIM 1

CIRCLIP

KICK START ASSY

SPRING, COMPRESSION (1W1)

BALL

WASHER, PLATE (525)

CIRCLIP(2R6)

BOLT, SOCKET

OIL SEAL (17X25X4-401)
