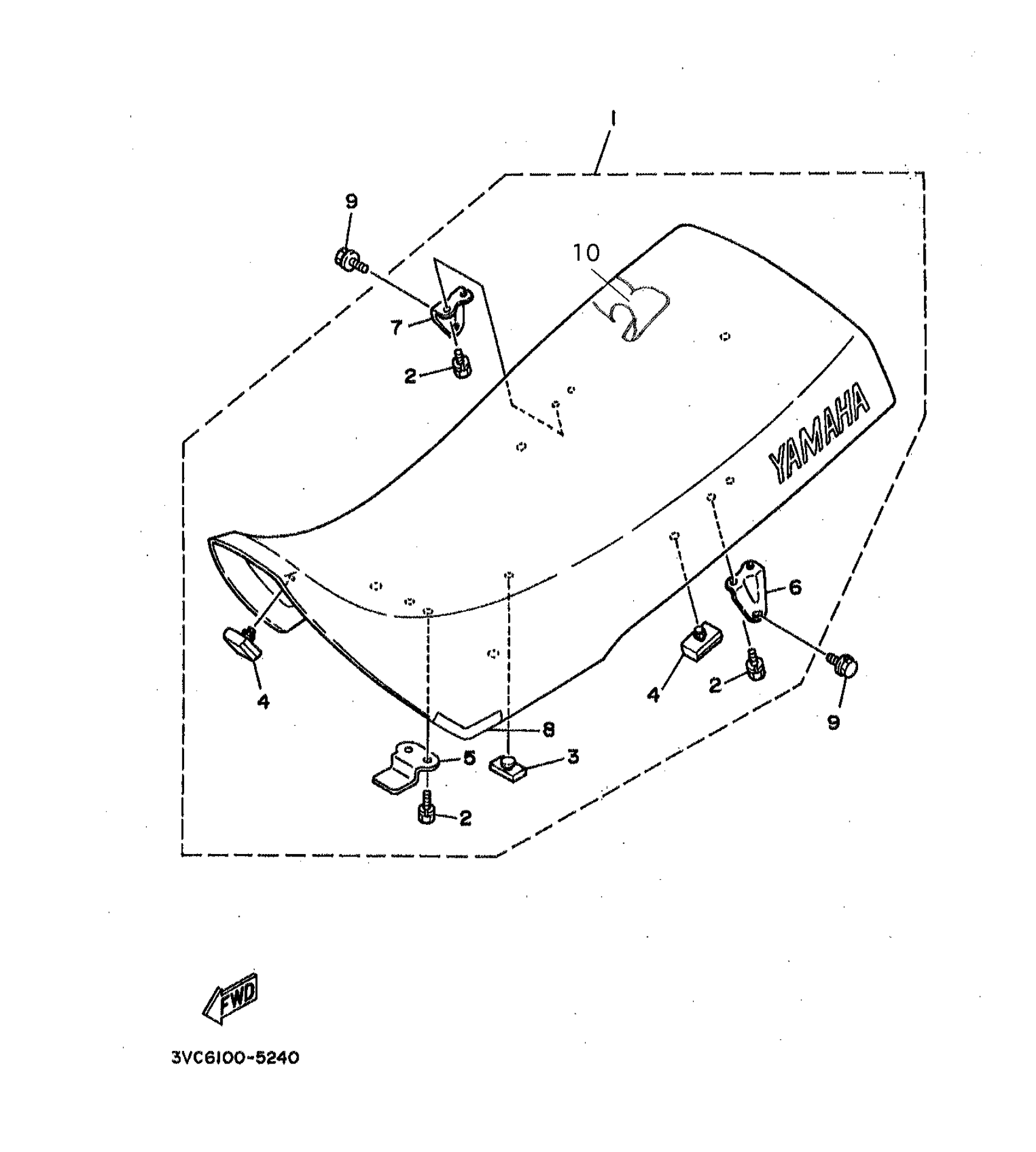

Yamaha RT180K (RT180) 3VC9 1998 SEAT Diagram

#

Description

Price

1

SEAT COVER (DEEP PURPLISH BLUE SOLID E)

3VC-F4770-50-00

Unavailable

2

BOLT, HEXAGON

97017-06012-00

$3.76

3

DAMPER, SEAT

509-24724-00-00

$10.99

4

PAD, SEAT

502-29472-00-00

Unavailable

5

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

6

BRACKET SEAT

5L9-F4738-10-00

Unavailable

7

BRACKET/SEAT

5L9-F4728-10-00

Unavailable

8

. DAMPER

3VC-F473Y-00-00

Unavailable

9

BOLT, WITH WASHER M8

97506-08512-00

Unavailable

10

SEAT COVER

3VC-F4731-50-00

Unavailable
