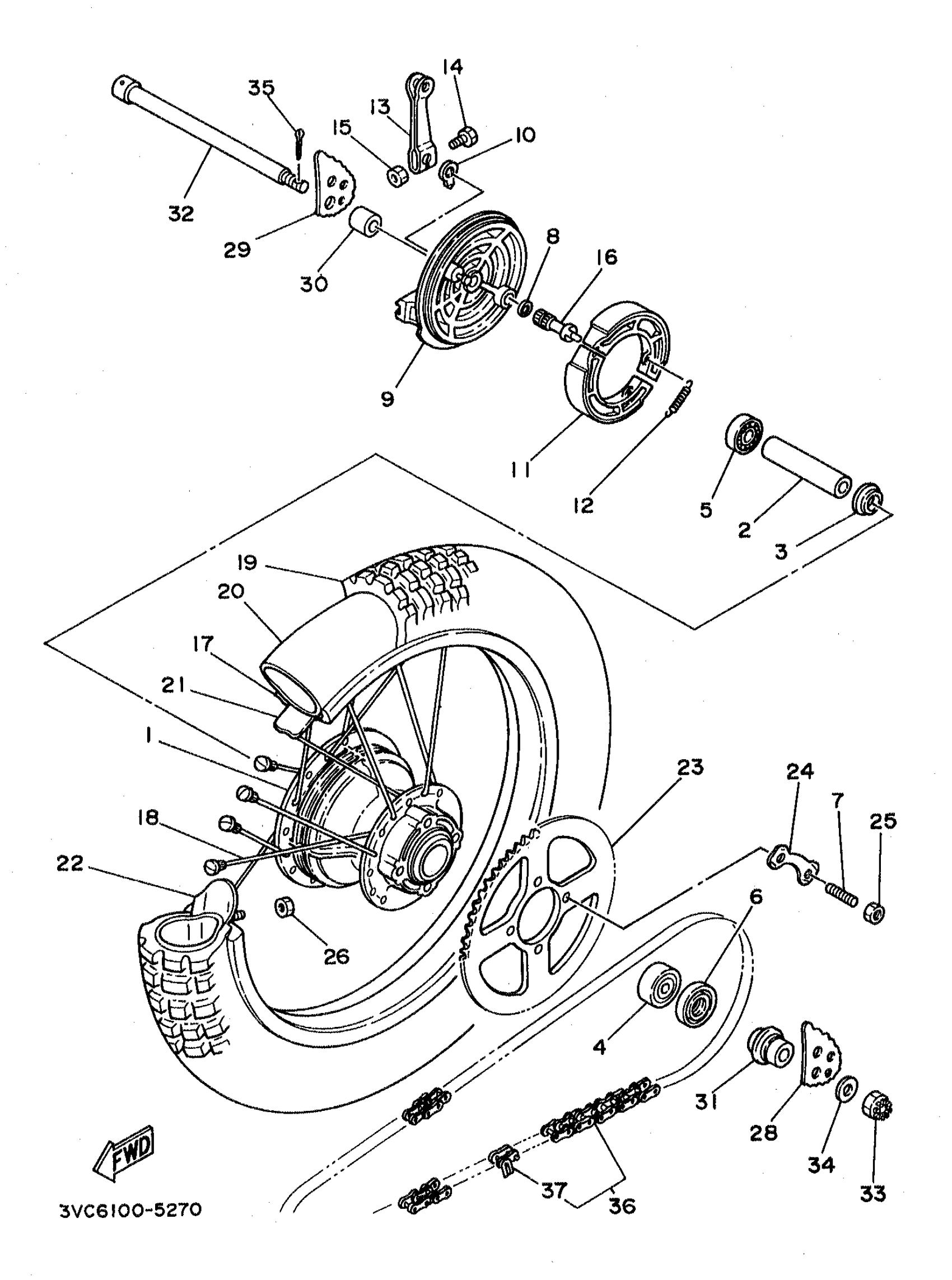

Yamaha RT180K (RT180) 3VC9 1998 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

10V-25311-00-98

Unavailable

2

SPACER

90560-15313-00

$46.99

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

BEARING

93306-20205-00

$38.99

6

SEAL,OIL

93106-26005-00

$7.20

7

BOLT, STUD (10V)

90116-10390-00

$2.87

8

SEAL, CAM SHAFT

148-25359-00-00

$4.78

9

PLATE, BRAKE SHOE

10V-25321-00-98

Unavailable

10

PLATE

3Y6-2533A-01-00

$5.49

11

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

12

SPRING, TENSION

90506-15260-00

$8.49

13

LEVER, CAM SHAFT

1E2-25155-00-00

Unavailable

14

BOLT, HEXAGON (538)

90101-06278-00

$2.17

15

NUT(6TA)

95317-06600-00

$3.55

16

CAMSHAFT

2RH-25351-00-00

Unavailable

17

RIM 2.15-18

94421-18854-00

Unavailable

18

SPOKE SET, REAR

10V-25304-01-00

Unavailable

19

TIRE (100/100-18 59P MT21 TT)

94110-188F3-00

Unavailable

20

TUBE (3R9)

94241-18153-00

Unavailable

21

BAND, RIM (2J4)

94340-18086-00

Unavailable

22

SPACER, BEAD

1T2-25394-00-00

Unavailable

23

SPROCKET, DRIVEN (51T)

53V-25451-50-00

Unavailable

24

WASHER

10V-25412-00-00

Unavailable

25

NUT

90170-10011-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

28

PULLER, CHAIN (L.H)

1W2-25388-01-00

Unavailable

29

PULLER, CHAIN (R.H)

1W2-25389-01-00

Unavailable

30

COLLAR

90387-15115-00

Unavailable

31

COLLAR, WHEEL

23K-F5383-00-00

Unavailable

32

AXLE, WHEEL

5X3-25381-00-00

Unavailable

33

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

34

WASHER (525)

90201-15238-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

36

CHAIN

9Y582-51121-00

Unavailable

37

JOINT, CHAIN

94682-51001-00

Unavailable
