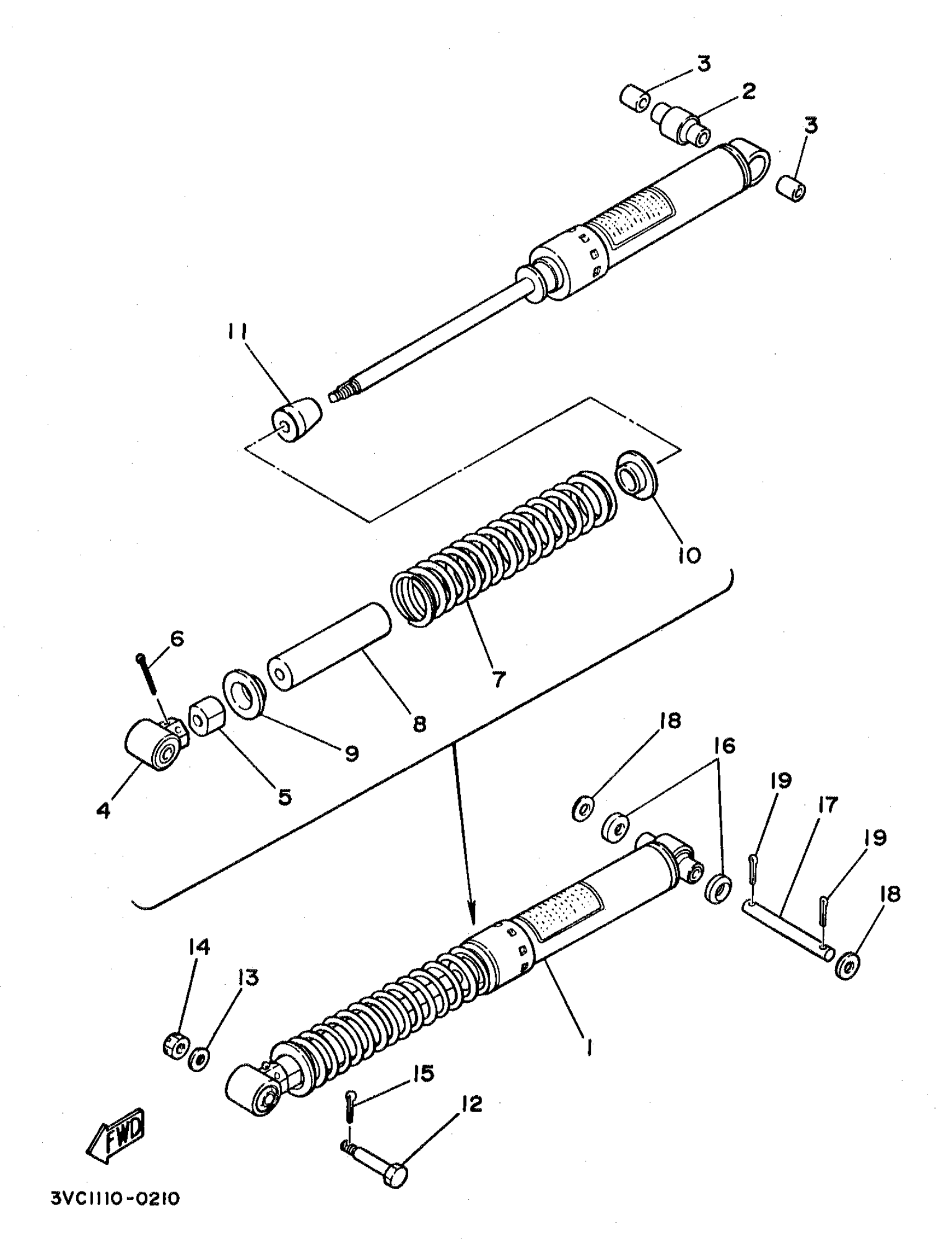

Yamaha RT180K (RT180) 3VC9 1998 REAR SUSPENSION Diagram

#

Description
Price

1

SHOK/ABS ASSY/REAR

3VC-F2210-20-00

Unavailable

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

Unavailable

3

BUSH, SOLID (1M1)

90380-12051-00

$15.99

4

. BRACKET, UPPER

1M1-22219-01-00

Unavailable

5

. SEAT, SPRING UPPER

5L9-F2213-00-00

Unavailable

6

PIN, COTTER (AM5)

91490-30045-00

$8.99

7

. SPRING, COMPRESSION

90501-90514-09

Unavailable

8

. SLEEVE, ROD

5L9-F2496-00-00

Unavailable

9

. GUIDE, SPRING 1

5L9-F2214-00-00

Unavailable

10

. SEAT, SPRING LOWER

3VC-F2223-00-00

Unavailable

11

. STOPPER, BUMP

2A6-22493-00-00

Unavailable

12

BOLT SPECIAL SHAPE M10

90109-10W11-09

Unavailable

13

WASHER

92902-10200-09

Unavailable

14

NUT (682)

95380-10700-00

Unavailable

15

PIN, COTTER

91490-20035-00

$4.77

16

COVER, THRUST

1W1-22128-00-00

Unavailable

17

PIN, CLEVIS (3Y2)

90240-12075-00

Unavailable

18

WASHER(6TA)

92907-12600-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable
