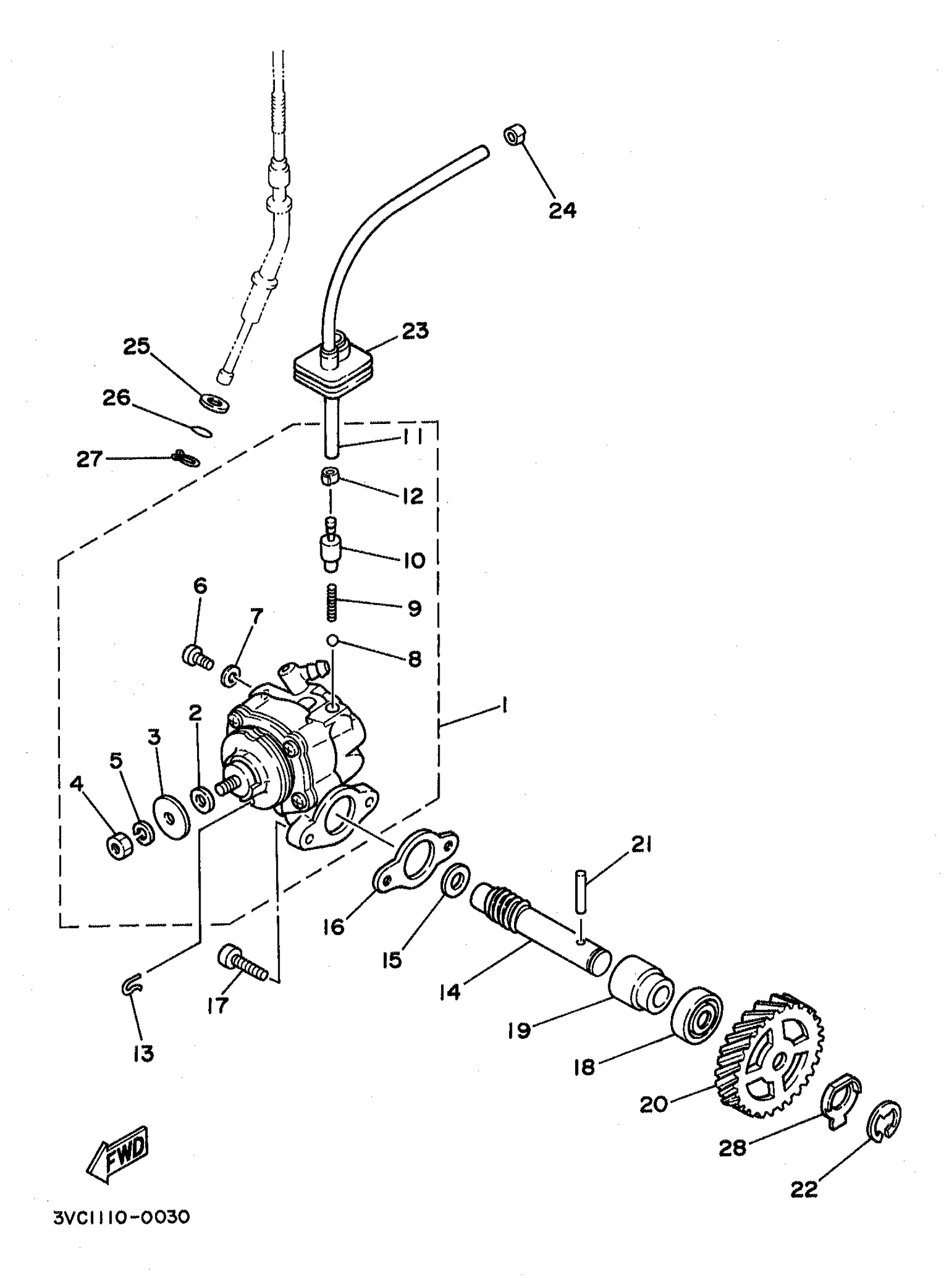

Yamaha RT180K (RT180) 3VC9 1998 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

525-13101-01-00

Unavailable

2

SHIM,PLUNGER

137-13137-00-10

$7.99

3

PLATE, ADJUSTING

137-13138-01-00

Unavailable

4

NUT, HEXAGON (663)

95380-05600-00

$8.49

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

SCREW, BIND

98980-04008-00

Unavailable

7

GASKET 137131870000

90430-04004-00

$9.49

8

BALL

93505-32002-00

$2.92

9

SPRING, CHECK BALL (451)

90501-02217-00

$7.49

10

NOZZLE

402-13552-00-00

Unavailable

11

HOSE (L200)

90445-05N13-00

$8.49

12

CLIP (214-13164-00)

90468-02033-00

$8.49

13

CLIP (PUMP ADJUSTING PULLEY)

363-13133-01-00

$7.99

14

SHAFT, WORM

2H3-E3175-01-00

Unavailable

15

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

16

GASKET, PUMP CASE

126-13116-01-00

Unavailable

17

SCREW, PAN HEAD

98507-05014-00

Unavailable

18

OIL SEAL (10X22X7-137)

93101-10002-00

Unavailable

19

METAL, WORM SHAFT OUTER

2H3-E3176-00-00

Unavailable

20

GEAR, DRIVE

2A6-13178-00-00

Unavailable

21

PIN, SPRING

91609-25020-00

Unavailable

22

CIRCLIP(2R6)

99001-08600-00

Unavailable

23

HOLDER, OIL PIPE

5L9-E3174-00-00

Unavailable

24

CLIP (214-13164-00)

90468-02033-00

$8.49

25

WASHER(6TA)

92907-08600-00

Unavailable

26

O-RING (214)

93210-07100-00

Unavailable

27

CIRCLIP (2A6)

90468-08086-00

Unavailable

28

WASHER, LOCK

90215-10253-00

Unavailable
