Description

Price

1

REED VALVE ASSY

345-13610-20-00

$228.99

2

REED, VALVE

345-13613-70-00

$72.99

3

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET,VALVE SEAT

3VC-13622-01-00

Unavailable

7

JOINT, CARBURETOR

5L9-E3565-00-00

Unavailable

8

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

9

BOLT,W/WASHER

97502-06525-09

Unavailable

10

CLAMP SPECIAL SHAPE

90465-20800-09

Unavailable

11

CHAMBER, AIR

5L9-E3581-00-00

Unavailable

12

PIPE

5L9-E4465-01-00

Unavailable

13

GROMMET 839774310000

90480-14023-00

$7.49

14

SCREW, PAN HEAD WITH WASHER

97602-06125-09

Unavailable

15

COLLAR

90387-06158-00

$8.49

16

PIPE, INTAKE MANIFOLD

5L9-E3584-00-00

Unavailable

17

SPRING, COMPRESSION

90501-20802-09

Unavailable

18

CLAMP,HOSE

90460-16W00-00

Unavailable

19

CLAMP,HOSE

90460-16W00-00

Unavailable

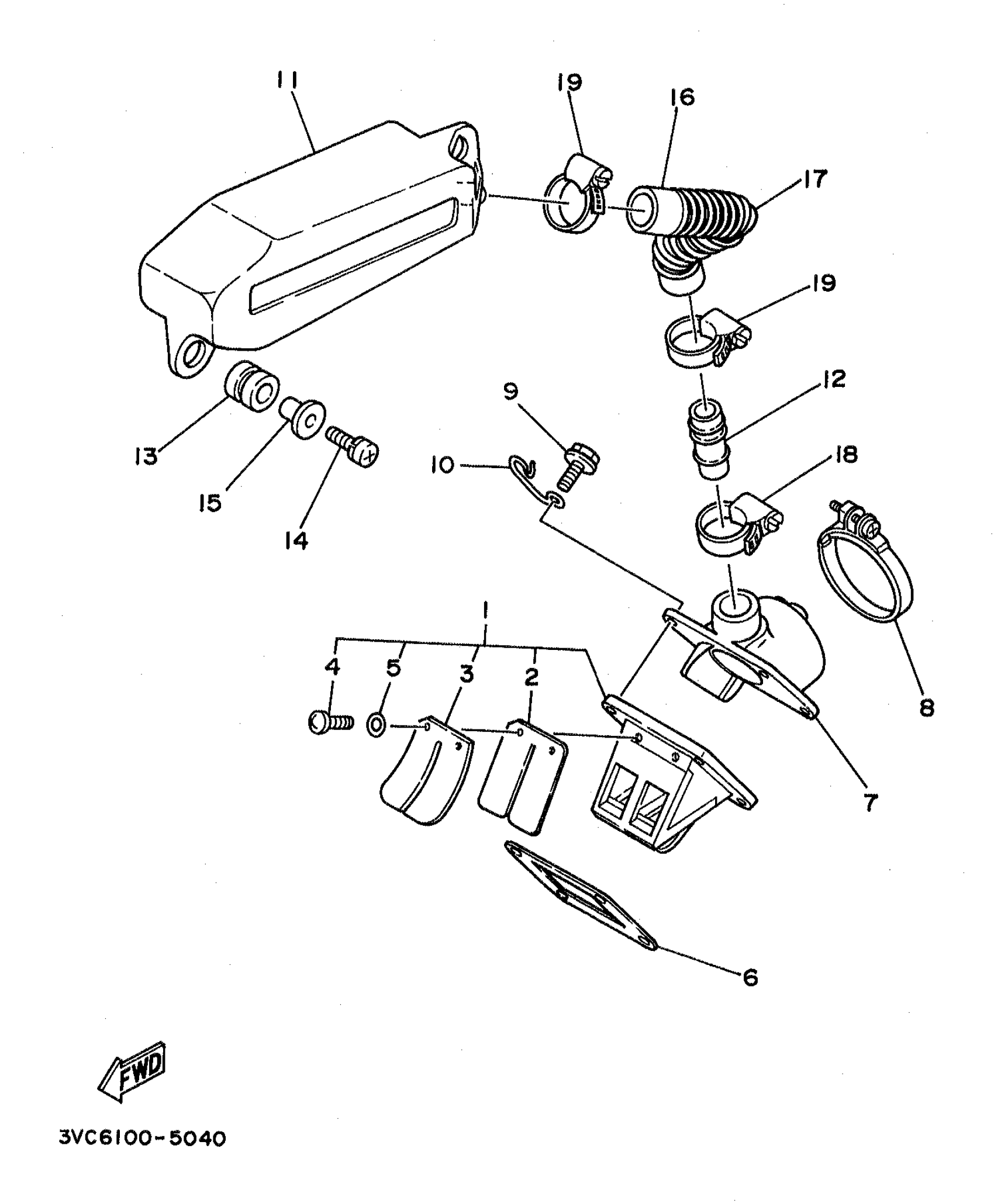

Yamaha RT180K (RT180) 3VC9 1998 INTAKE Diagram

REED VALVE ASSY

REED, VALVE

SCREW, PAN HEAD(3AC)

SCREW, PAN HEAD (J10)

WASHER, SPRING

GASKET,VALVE SEAT

JOINT, CARBURETOR

CLAMP, HOSE (5H0)

BOLT,W/WASHER

CLAMP SPECIAL SHAPE

CHAMBER, AIR

PIPE

GROMMET 839774310000

SCREW, PAN HEAD WITH WASHER

COLLAR

PIPE, INTAKE MANIFOLD

SPRING, COMPRESSION

CLAMP,HOSE

CLAMP,HOSE
