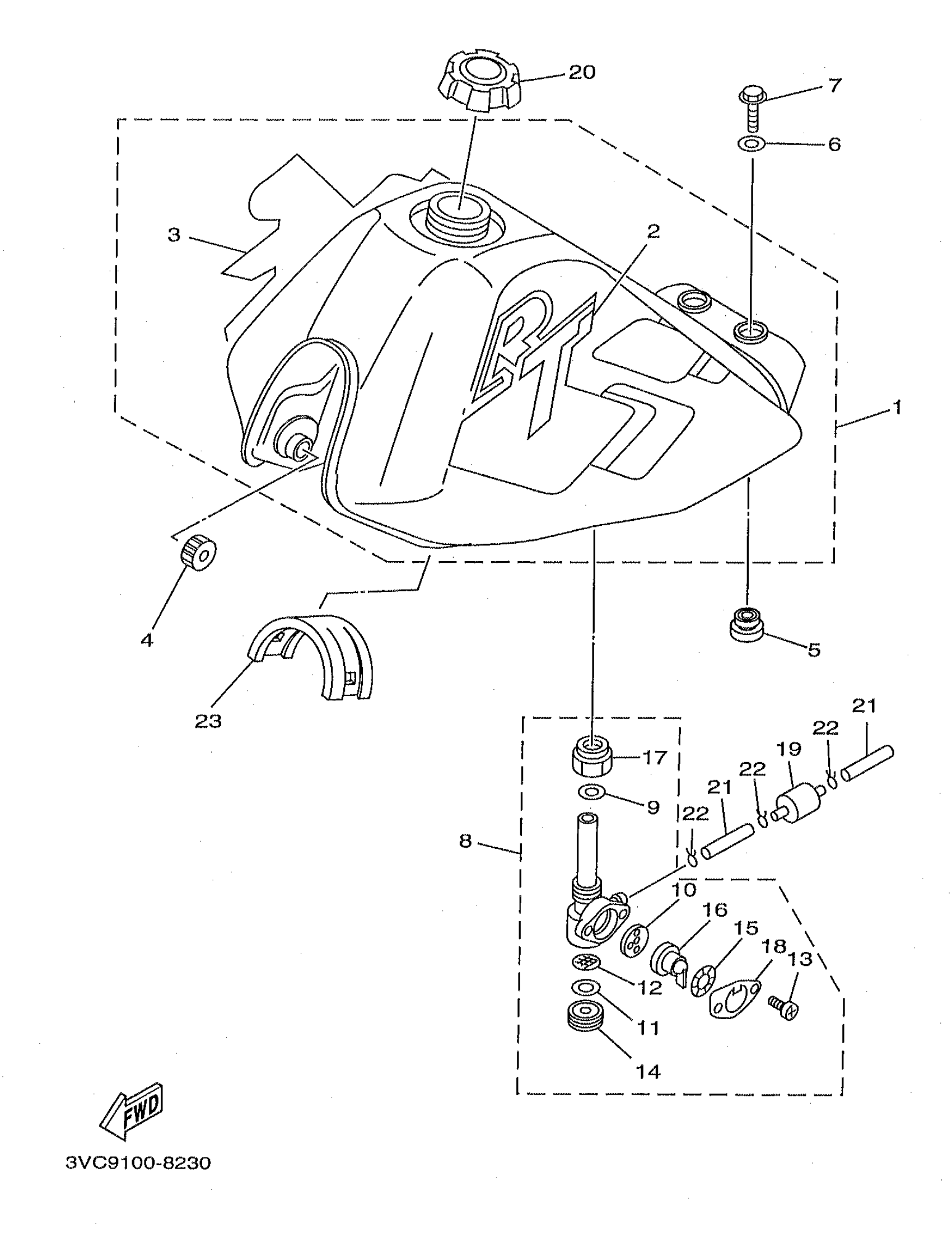

Yamaha RT180K (RT180) 3VC9 1998 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK ASSEMBLY (DEEP PURPLISH BLUE SOLID E)
3VC-F4100-70-00
Unavailable
2
. GRAPHIC, FUEL TANK 1
3VC-F4244-70-00
Unavailable
3
. GRAPHIC, FUEL TANK 2
3VC-F4245-70-00
Unavailable
5
GROMMET
90480-22231-00
Unavailable
8
FUEL COCK ASSEMBLY 1
3VC-F4500-00-00
Unavailable
9
. GASKET
3VC-F4532-01-00
Unavailable
10
VALVE/GASKET
2MW-F4523-00-00
Unavailable
12
. GASKET, FILTER
434-24576-00-00
Unavailable
13
SCREW, PAN HEAD(78G)
98580-03006-00
Unavailable
14
. CUP, FILTER
434-24521-00-00
Unavailable
16
. LEVER, COCK
447-24524-00-00
Unavailable
17
. NUT
2TW-F4531-00-00
Unavailable
18
. PLATE, LEVER FITTING
447-24525-00-00
Unavailable
19
FILTER, FUEL
4AN-F4501-10-00
Unavailable
20
CAP ASSEMBLY
5Y1-24610-01-00
Unavailable
21
HOSE
90445-09W02-00
Unavailable
22
CLIP
90467-09W02-00
Unavailable
23
DAMPER,LOCATING 2
5L9-F4182-00-00
Unavailable
