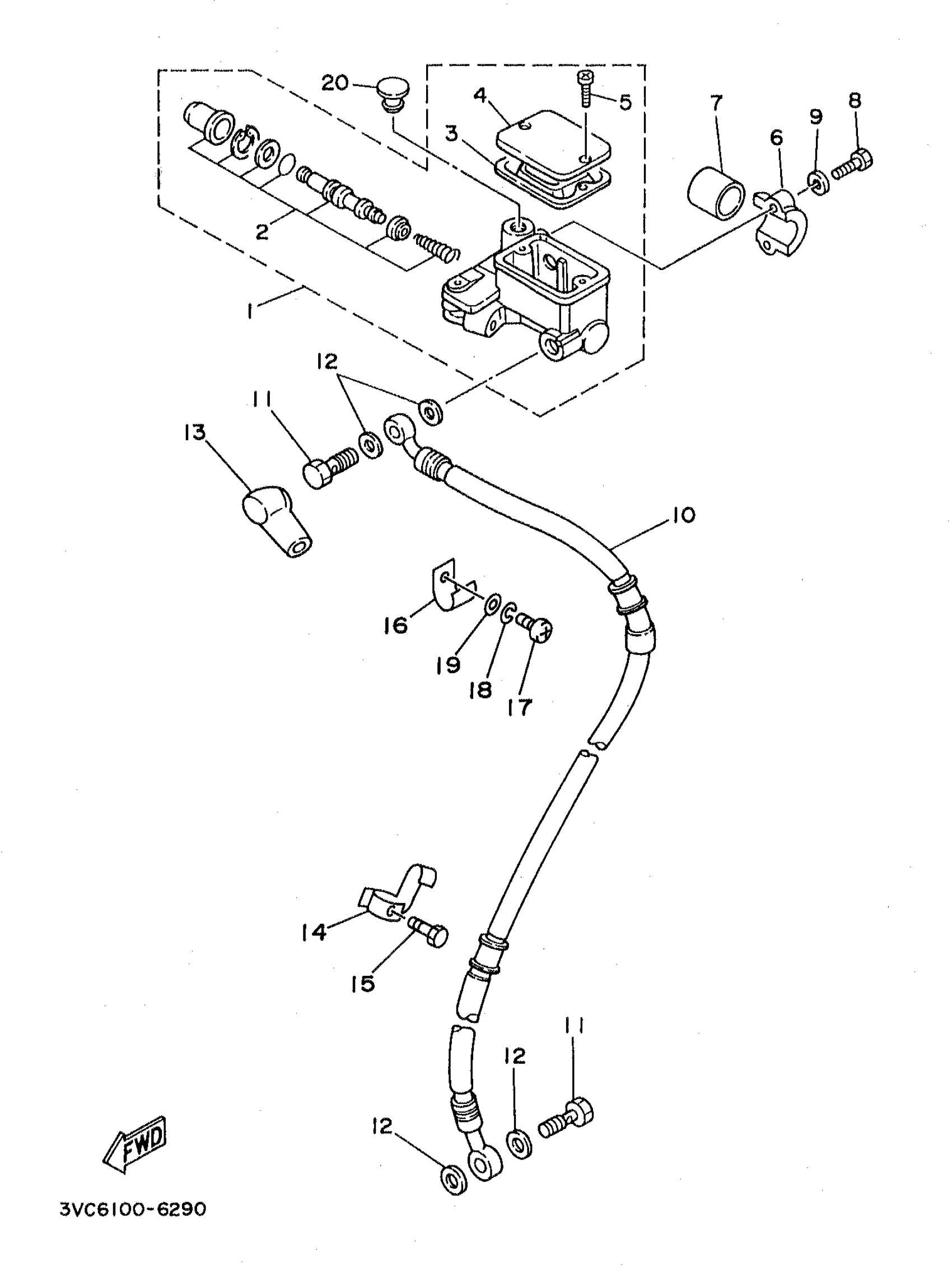

Yamaha RT180K (RT180) 3VC9 1998 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

39F-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$69.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

SPACER

90560-22807-09

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER(6TA)

92907-06600-00

$2.72

HOSE,BRAKE 1

2TW-F5872-19-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE

90201-10886-00

Unavailable

BOOT, MASTER CYLINDER

3V9-F5862-00-00

Unavailable

HOLDER, CABLE 1

4BN-F3318-00-00

Unavailable

BOLT,SOCKET

91317-06010-00

$9.49

HOLDER, BRAKE HOSE 1

4BN-F5875-00-00

Unavailable

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

WASHER, SPRING

92907-06100-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable

CAP

2WL-F5825-00-00

Unavailable
