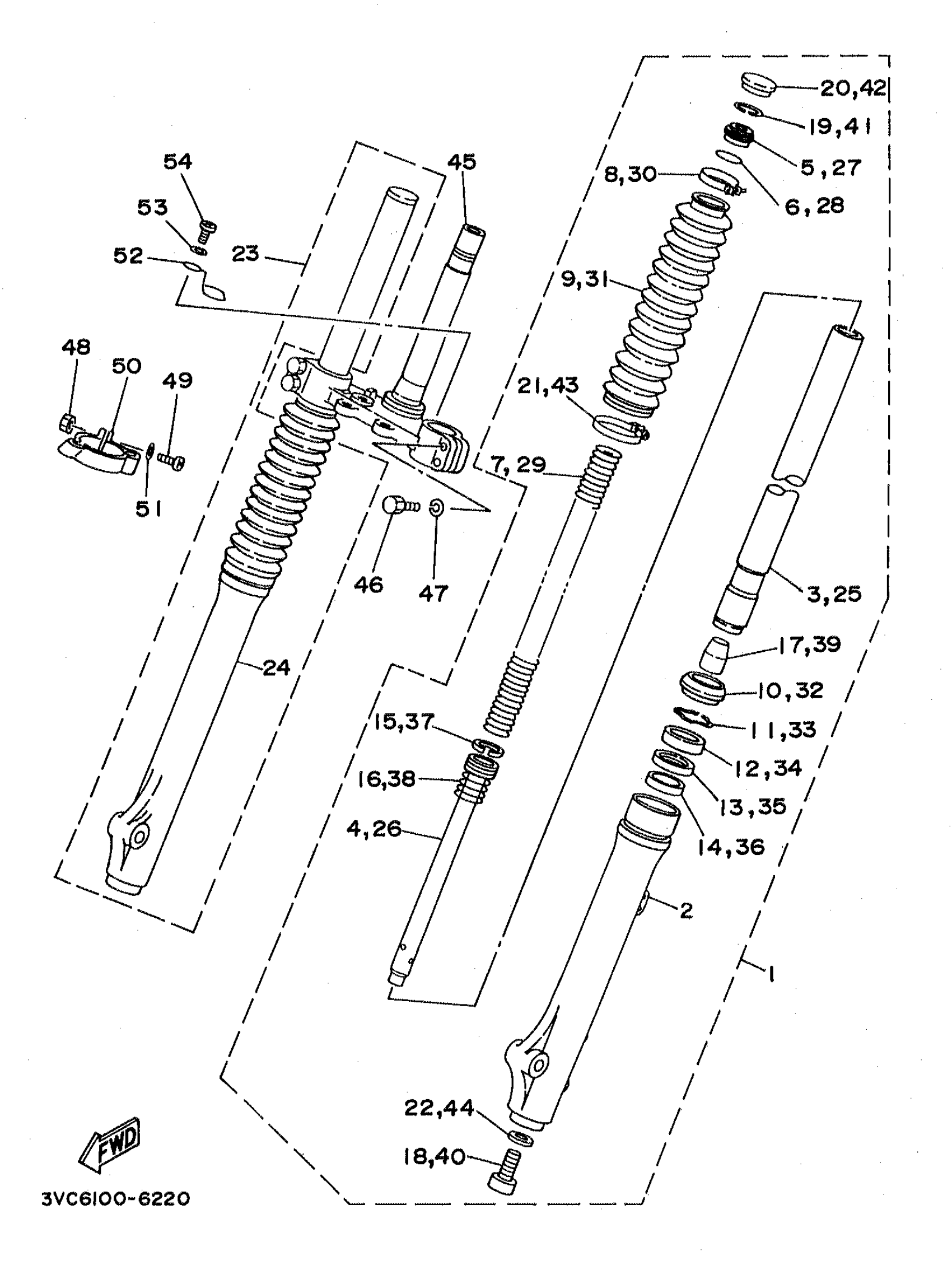

Yamaha RT180K (RT180) 3VC9 1998 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

2TW-F3102-L0-00

Unavailable

2

. TUBE, OUTER (LEFT)

2TW-F3126-A0-00

Unavailable

3

. INNER TUBE COMP1

2TW-F3110-A0-00

Unavailable

4

. PISTON, FRONT FORK

2TW-F3171-A0-00

Unavailable

5

. BOLT, CAP

2TW-F3111-A0-00

Unavailable

6

O-RING(1HX)

93210-24709-00

$9.49

7

. SPRING, FRONT FORK

2TW-F3141-A0-00

Unavailable

8

BAND

4AN-F3192-00-00

$11.99

9

. BOOT

2TW-F3191-L0-00

Unavailable

10

. SEAL, DUST

2TW-F3144-A0-00

Unavailable

11

CLIP, OIL SEAL

34X-23156-00-00

$8.99

12

. OIL SEAL

2TW-F3145-A0-00

Unavailable

13

SPACER, SEAL

10V-23147-00-00

Unavailable

14

. METAL, SLIDE 1

10V-23125-00-00

Unavailable

15

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

16

. SPRING, REBOUND

2TW-F3151-A0-00

Unavailable

17

SPACER, OIL LOCK

4AN-F3166-00-00

Unavailable

18

BOLT

3M7-23181-00-00

Unavailable

19

RING, SNAP

1UA-23153-00-00

Unavailable

20

CAP, FRONT FORK

2TW-F3168-A0-00

Unavailable

21

BAND

4AN-F3192-10-00

Unavailable

22

WASHER, PLATE

90201-10801-00

Unavailable

23

FRONT FORK ASSEMBLY (R.H)

2TW-F3103-L0-00

Unavailable

24

. TUBE, OUTER (RIGHT)

2TW-F3136-A0-00

Unavailable

25

. INNER TUBE COMP1

2TW-F3110-A0-00

Unavailable

26

. PISTON, FRONT FORK

2TW-F3171-A0-00

Unavailable

27

. BOLT, CAP

2TW-F3111-A0-00

Unavailable

28

O-RING(1HX)

93210-24709-00

$9.49

29

. SPRING, FRONT FORK

2TW-F3141-A0-00

Unavailable

30

BAND

4AN-F3192-00-00

$11.99

31

. BOOT

2TW-F3191-L0-00

Unavailable

32

. SEAL, DUST

2TW-F3144-A0-00

Unavailable

33

CLIP, OIL SEAL

34X-23156-00-00

$8.99

34

. OIL SEAL

2TW-F3145-A0-00

Unavailable

35

SPACER, SEAL

10V-23147-00-00

Unavailable

36

. METAL, SLIDE 1

10V-23125-00-00

Unavailable

37

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

38

. SPRING, REBOUND

2TW-F3151-A0-00

Unavailable

39

SPACER, OIL LOCK

4AN-F3166-00-00

Unavailable

40

BOLT

3M7-23181-00-00

Unavailable

41

RING, SNAP

1UA-23153-00-00

Unavailable

42

CAP, FRONT FORK

2TW-F3168-A0-00

Unavailable

43

BAND

4AN-F3192-10-00

Unavailable

44

WASHER, PLATE

90201-10801-00

Unavailable

45

UNDER BRACKET COMP

2TW-F3340-10-35

Unavailable

46

BOLT, HEXAGON

97013-08030-00

Unavailable

47

WASHER(JN5)

92907-08100-00

Unavailable

48

NUT, HEXAGON (663)

95380-05600-00

Unavailable

49

SCREW, PAN HEAD

98517-05020-00

Unavailable

50

HOLDER, CABLE

34X-23317-00-00

Unavailable

51

. WASHER, PLAIN

92990-05200-00

Unavailable

52

GUIDE, CABLE

4AN-F331E-00-00

Unavailable

53

WASHER, SPRING

92907-06100-00

Unavailable

54

SCREW, PAN

98517-06012-00

Unavailable
