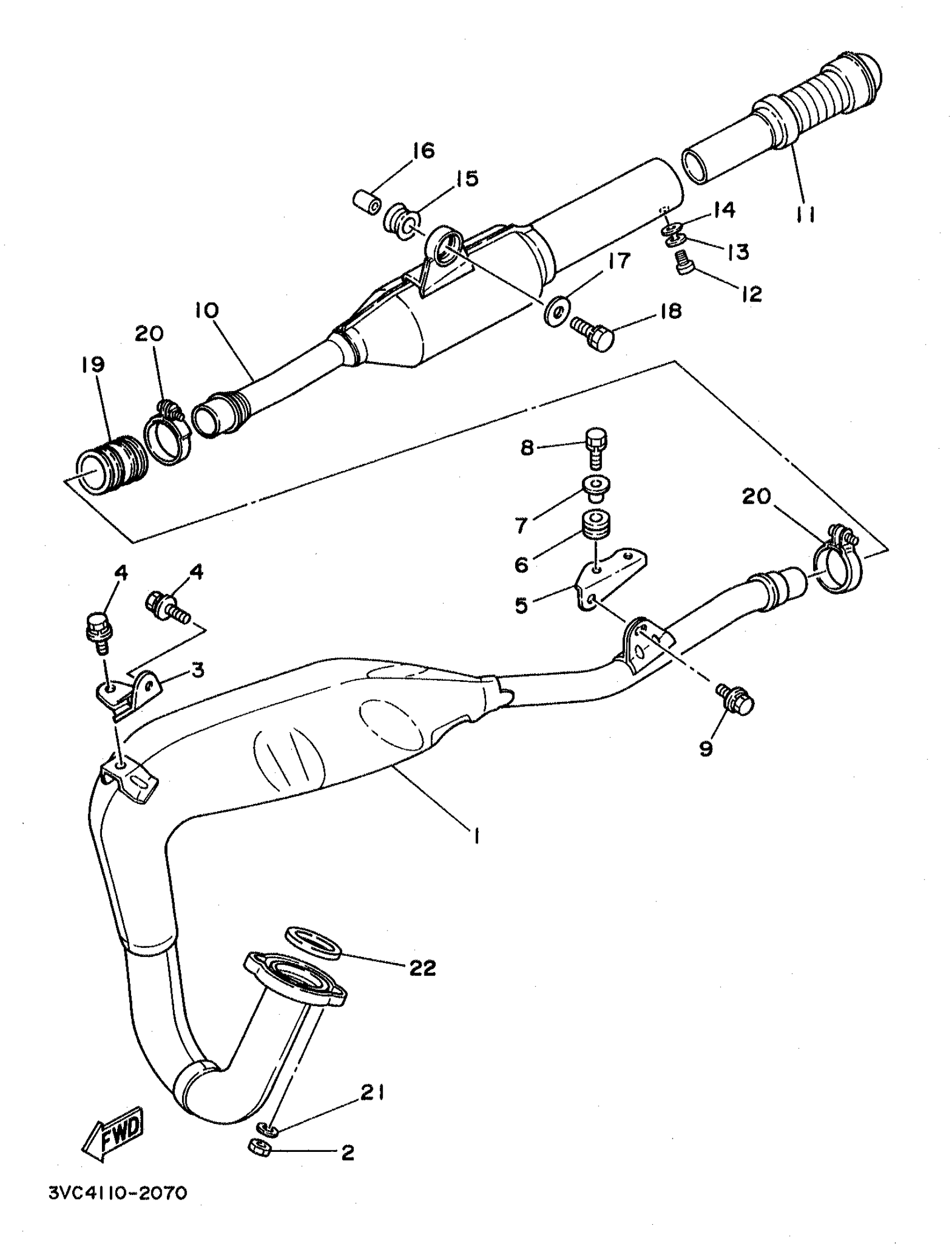

Yamaha RT180K (RT180) 3VC9 1998 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

3VC-E4610-00-00

Unavailable

2

NUT, HEXAGON

95380-06600-00

Unavailable

3

STAY, MUFFLER 2

2A6-14772-01-00

$11.99

4

BOLT, WITH WASHER M8

97502-08616-09

Unavailable

5

STAY, MUFFLER 1

5L9-E4771-00-00

Unavailable

6

GROMMET 839774310000

90480-14023-00

$7.49

7

COLLAR

90387-06158-00

$8.49

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

BOLT, WITH WASHER M8

97502-08616-09

Unavailable

10

SILENCER, EXHAUST

3VC-14753-00-00

Unavailable

11

PIPE, OUTLET

1M1-14752-01-00

Unavailable

12

SCREW, PAN

98517-06012-00

$3.78

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER(6TA)

92907-06600-00

$2.72

15

DAMPER

565-14747-00-00

Unavailable

16

COLLAR (437)

90387-08258-00

Unavailable

17

WASHER,PLATE

90201-08802-00

Unavailable

18

BOLT, WITH WASHER M8

97506-08512-00

Unavailable

19

GASKET, MUFFLER JOINT

1W2-14714-00-00

Unavailable

20

CLAMP, HOSE

90460-37130-00

Unavailable

21

WASHER, SPRING

92907-06100-00

$4.25

22

GASKET, EXHAUST PIPE

3PA-14613-10-00

Unavailable
