Description

Price

1

CRANKCASE SET

5L9-E5150-00-00

Unavailable

2

CRANKCASE SET

5L9-E5150-00-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

PIN, DOWEL

99530-20020-00

Unavailable

5

DAMPER

90388-08003-00

$17.99

6

SPACER, ENGINE MOUNT

401-15317-00-00

$14.49

7

O-RING (P95)

93210-11073-00

$7.49

8

SCREW, PAN

98507-06045-00

$3.14

9

SCREW, PAN

98507-06065-00

$7.49

10

BREATHER

583-15371-00-00

$6.99

11

HOSE (L1050)

90445-072G8-00

$29.99

12

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

13

GASKET (3JD1)

90430-12207-00

$7.99

14

HOLDER

2H3-E5128-00-00

Unavailable

15

SCREW, PAN

98507-08010-00

$8.49

16

PLATE, COVER

2TW-E7476-00-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

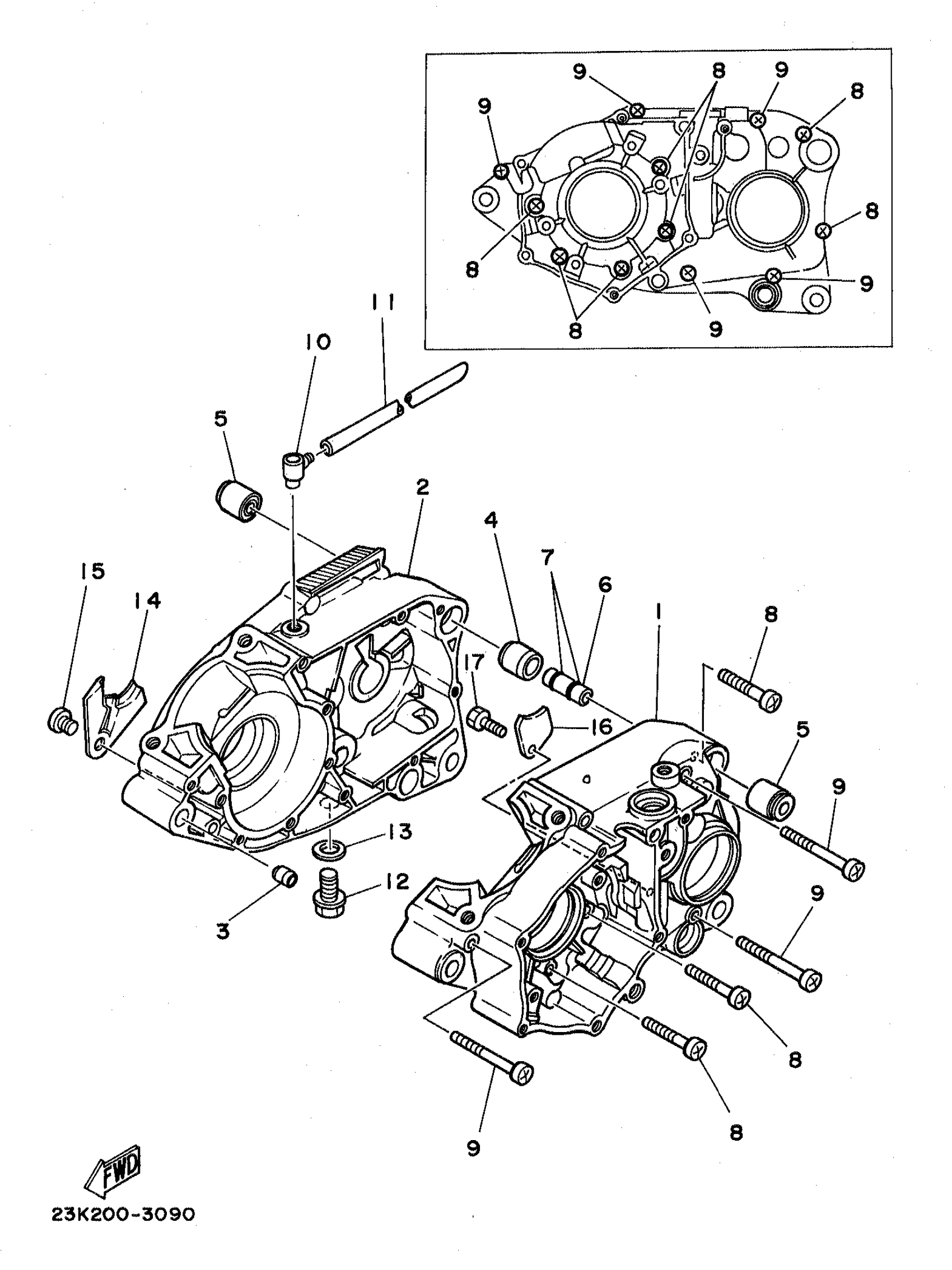

Yamaha RT180K (RT180) 3VC9 1998 CRANKCASE Diagram

CRANKCASE SET

CRANKCASE SET

PIN, DOWEL(3VD)

PIN, DOWEL

DAMPER

SPACER, ENGINE MOUNT

O-RING (P95)

SCREW, PAN

SCREW, PAN

BREATHER

HOSE (L1050)

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

HOLDER

SCREW, PAN

PLATE, COVER

BOLT (661)
