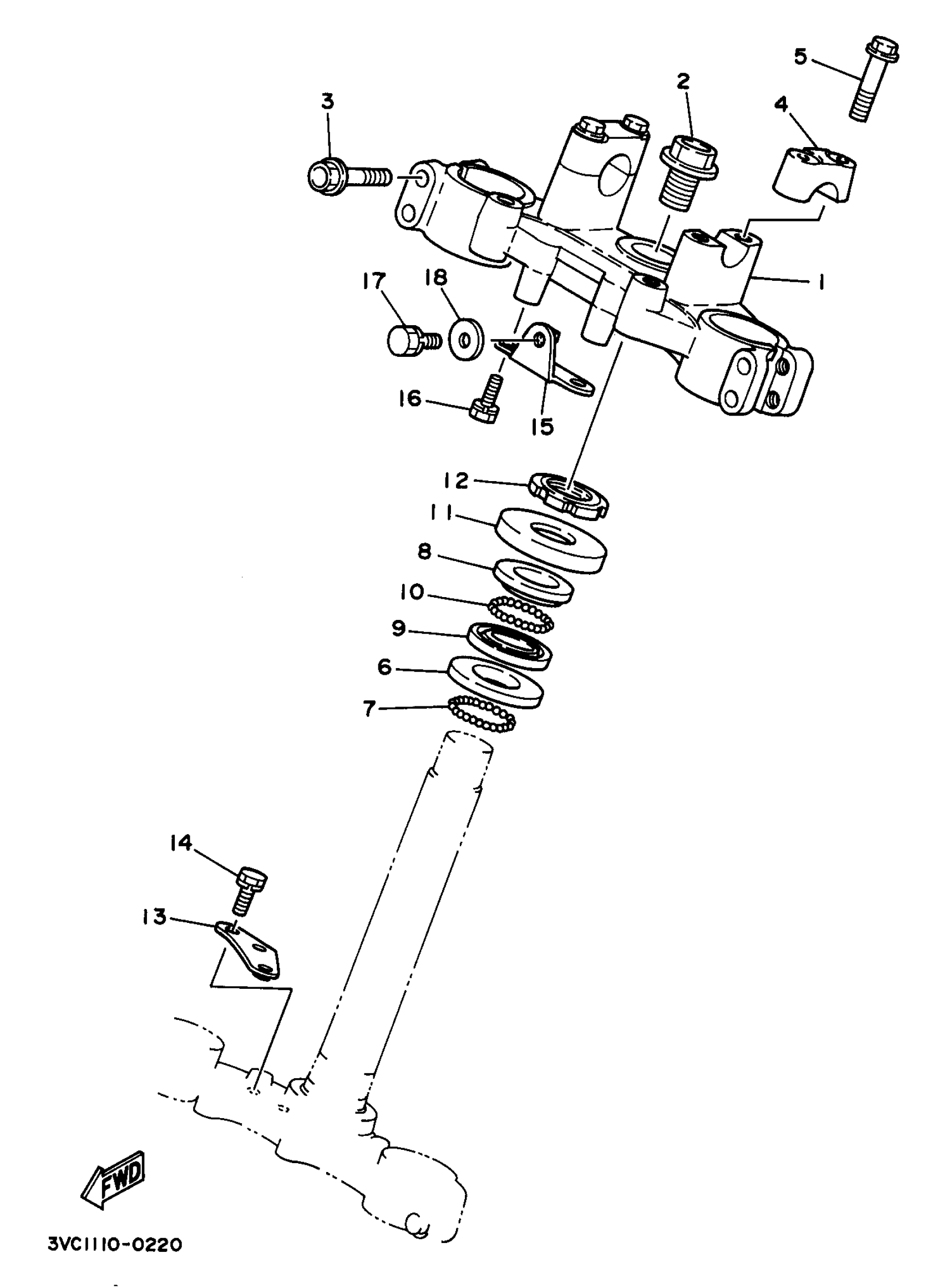

Yamaha RT180J (RT180) 1997 STEERING Diagram

#

Description
Price

1

CROWN, HANDLE

2TW-F3435-00-AC

Unavailable

2

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

3

BOLT, FLANGE

95817-08040-00

$7.49

4

HOLDER, HANDLE UPPER

1E6-23441-10-33

Unavailable

5

BOLT, FLANGE

95822-08035-00

$4.14

6

RACE, BALL 2

B6E-23412-00-00

$13.49

7

BALL

93501-04803-00

Unavailable

8

RACE, BALL 1

BP2-23411-00-00

$11.49

9

RACE, BALL 2

BP2-23412-00-00

$7.49

10

BALL

93503-16003-00

$2.72

11

COVER BALL RACE

10V-23416-01-00

Unavailable

12

NUT SPECIAL SHAPE M25

90179-25W23-00

$13.99

13

STAY, PLATE

3VC-F3486-00-00

Unavailable

14

BOLT, WITH WASHER

97502-06412-00

Unavailable

15

STAY, PLATE

3VC-F3487-00-00

Unavailable

16

BOLT, WITH WASHER

97502-06412-00

Unavailable

17

SCREW, PAN HEAD WI

9760N-06116-00

Unavailable

18

WASHER, PLATE

90201-06380-00

Unavailable
