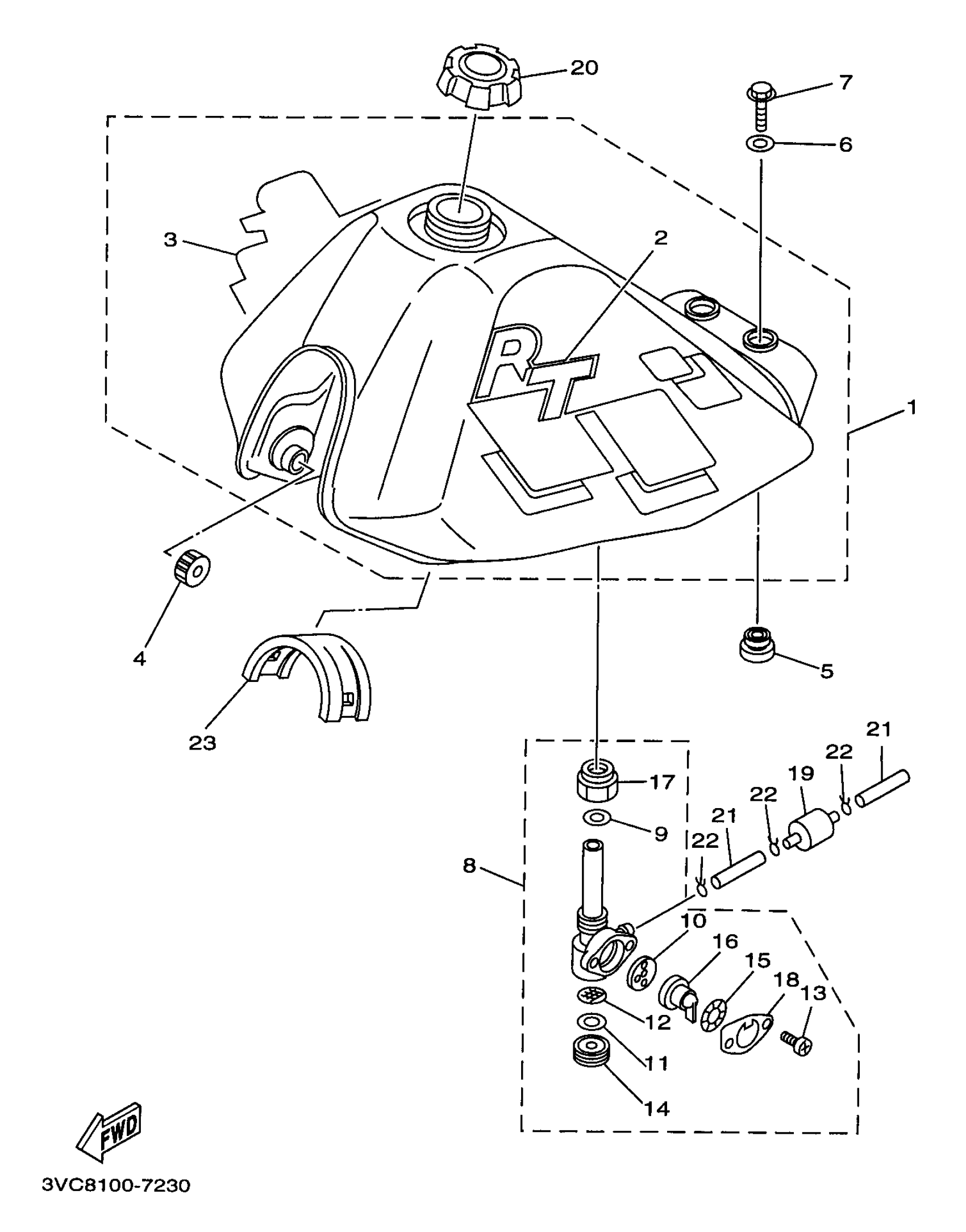

Yamaha RT180J (RT180) 1997 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3VC-F4100-60-00

Unavailable

2

. GRAPHIC TANK 1

3VC-F4244-60-00

Unavailable

3

. GRAPHIC TANK 2

3VC-F4245-60-00

Unavailable

4

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

5

GROMMET

90480-22231-00

Unavailable

6

WASHER, PLATE

90201-06086-00

$7.49

7

BOLT, WITH WASHER

97502-06412-00

Unavailable

8

FUEL COCK ASSY 1

2TW-F4500-02-00

Unavailable

9

. GASKET

3VC-F4532-01-00

Unavailable

10

VALVE/GASKET

2MW-F4523-00-00

Unavailable

11

GASKET, FILTER

498-24522-00-00

$39.99

12

. GASKET, FILTER

434-24576-00-00

Unavailable

13

SCREW, PAN HEAD(78G)

98580-03006-00

Unavailable

14

. CUP, FILTER

434-24521-00-00

Unavailable

15

WASHER, WAVE

132-24518-00-00

$5.49

16

. LEVER, COCK

447-24524-00-00

Unavailable

17

. NUT

2TW-F4531-00-00

Unavailable

18

. PLATE, LEVER FITTING

447-24525-00-00

Unavailable

19

FILTER, FUEL

4AN-F4501-10-00

Unavailable

20

CAP ASSEMBLY

5Y1-24610-01-00

Unavailable

21

HOSE

90445-09W02-00

Unavailable

22

CLIP

90467-09W02-00

Unavailable

23

DAMPER,LOCATING 2

5L9-F4182-00-00

Unavailable
