1997 Yamaha RT180 (RT180J) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

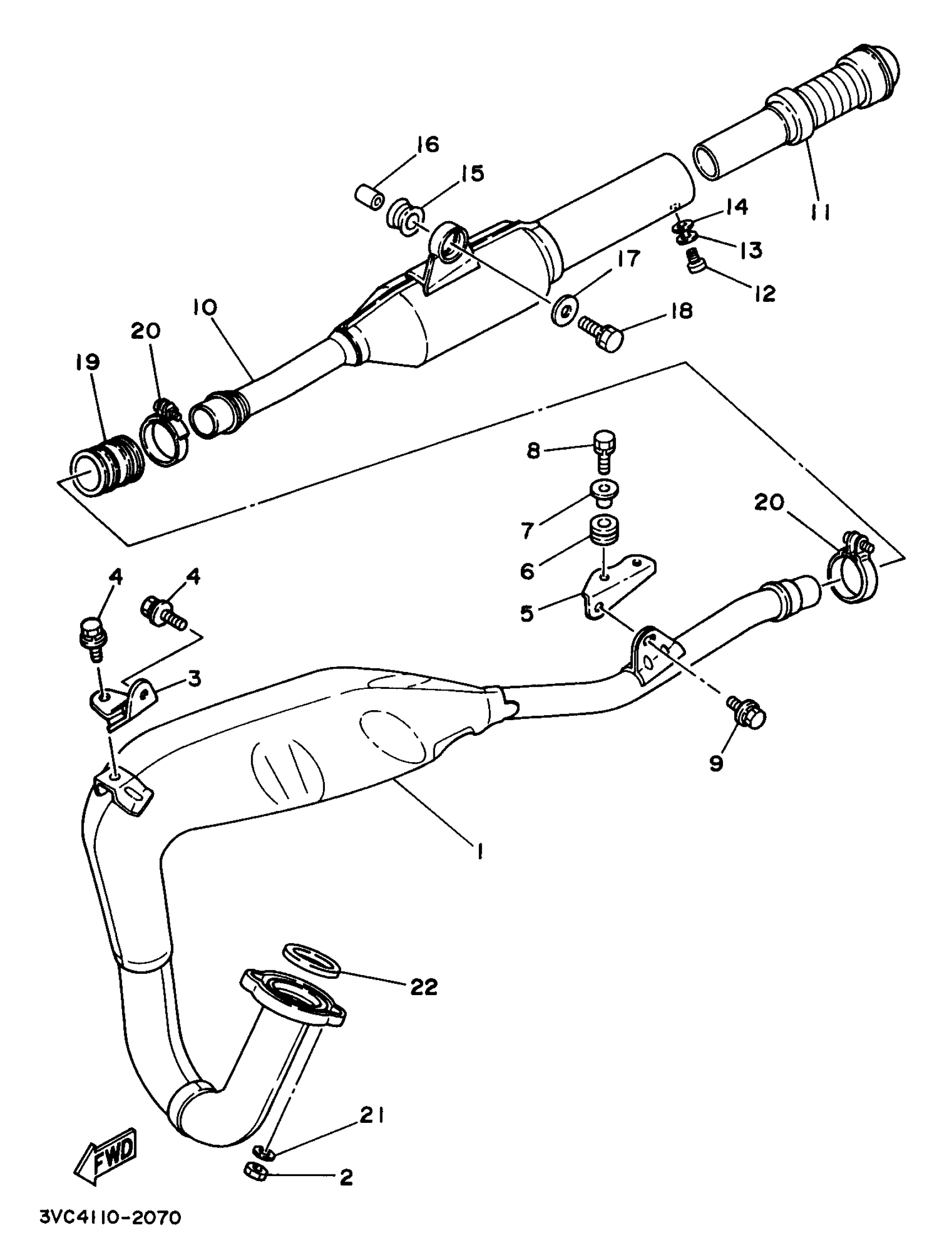

1997 Yamaha RT180 (RT180J) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY 1

3VC-E4610-00-00

1
Out of stock

2

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

3

STAY, MUFFLER 2

2A6-14772-01-00

1
Out of stock

4

BOLT, WITH WASHER M8

97502-08616-09

1
Out of stock

5

STAY, MUFFLER 1

5L9-E4771-00-00

1
Out of stock

6

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

7

COLLAR

90387-06158-00

1

$6.17

In stock

8

BOLT, WITH WASHER

97502-06425-00

1
Out of stock

9

BOLT, WITH WASHER M8

97502-08616-09

1
Out of stock

10

SILENCER, EXHAUST

3VC-14753-00-00

1
Out of stock

11

PIPE, OUTLET

1M1-14752-01-00

1
Out of stock

12

SCREW, PAN

98517-06012-00

1

$3.14

In stock

13

WASHER, SPRING

92907-06100-00

1
Out of stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

DAMPER

565-14747-00-00

—
Out of stock

16

COLLAR (437)

90387-08258-00

—
Out of stock

17

WASHER,PLATE

90201-08802-00

1
Out of stock

18

BOLT, WITH WASHER

97506-08430-00

1
Out of stock

19

GASKET, MUFFLER JOINT

1W2-14714-00-00

—
Out of stock

20

CLAMP, HOSE

90460-37130-00

1
Out of stock

21

WASHER, SPRING

92907-06100-00

1
Out of stock

22

GASKET, EXHAUST PIPE

3PA-14613-10-00

—
Out of stock
