1997 Yamaha RT180 (RT180J) Crankshaft Piston Diagram

← All diagrams

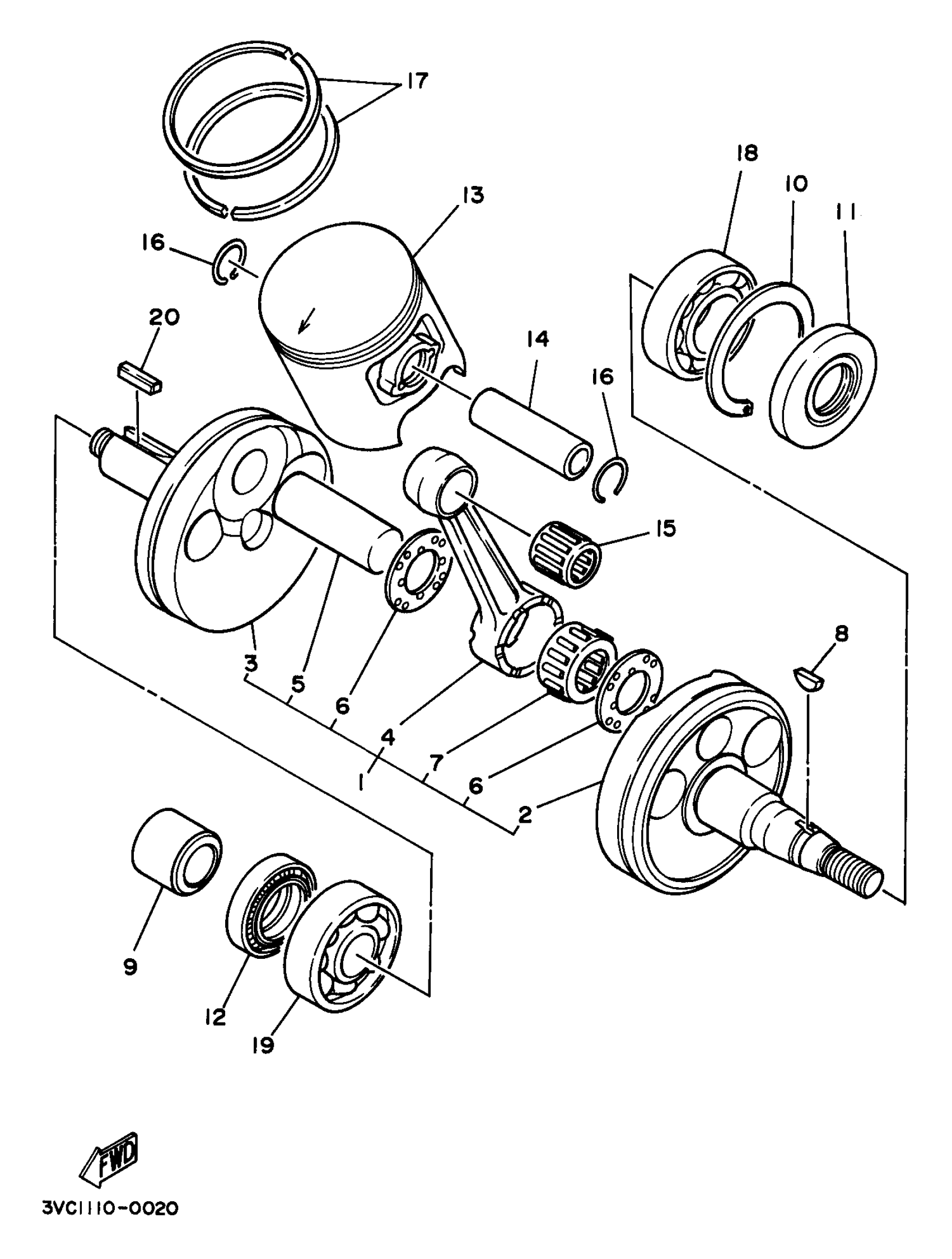

Find the part on the Crankshaft Piston diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha RT180 (RT180J) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

5L9-E1400-00-00

1
Out of stock

2

. CRANK 1

5L9-E1412-00-00

1
Out of stock

3

. CRANK 2

5L9-E1422-00-00

1
Out of stock

4

. ROD, CONNECTING 1

25V-11651-00-00

1
Out of stock

5

PIN,CRANK 1

3AK-11681-00-00

1
Out of stock

6

WASHER (164-11685-00)

90209-22071-00

—

$10.95

In stock

7

—

$48.62

In stock

8

KEY WOODRUFF 146115450000

90280-03017-00

1

$5.78

In stock

9

COLLAR 20 X 28

90387-20823-00

1
Out of stock

10

. CIRCLIP

93450-52010-00

1
Out of stock

11

OIL SEAL

93102-25018-00

1
Out of stock

12

OIL SEAL (28X40X8-132)

93103-28011-00

1

$12.05

In stock

13

PISTON (STD)

58W-E1631-U0-0B

1
Out of stock

13

PISTON (0.25MM O/S)

58W-E1635-00-00

1
Out of stock

13

PISTON (0.50MM O/S)

58W-E1636-00-00

1
Out of stock

13

PISTON (0.75MM O/S)

58W-E1637-00-00

1
Out of stock

14

PIN, PISTON

4L0-11633-00-00

—
Out of stock

15

—

$23.03

In stock

16

CIRCLIP (1L9)

93450-17044-00

—

$5.10

In stock

17

RING, PISTON

3V9-E1611-00-00

1
Out of stock

17

RING, PISTON

3V9-E1611-10-00

1
Out of stock

17

RING, PISTON

3V9-E1611-20-00

1
Out of stock

17

RING, PISTON

3V9-E1611-30-00

1
Out of stock

18

—

$35.25

In stock

19

—

$54.91

In stock

20

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock
