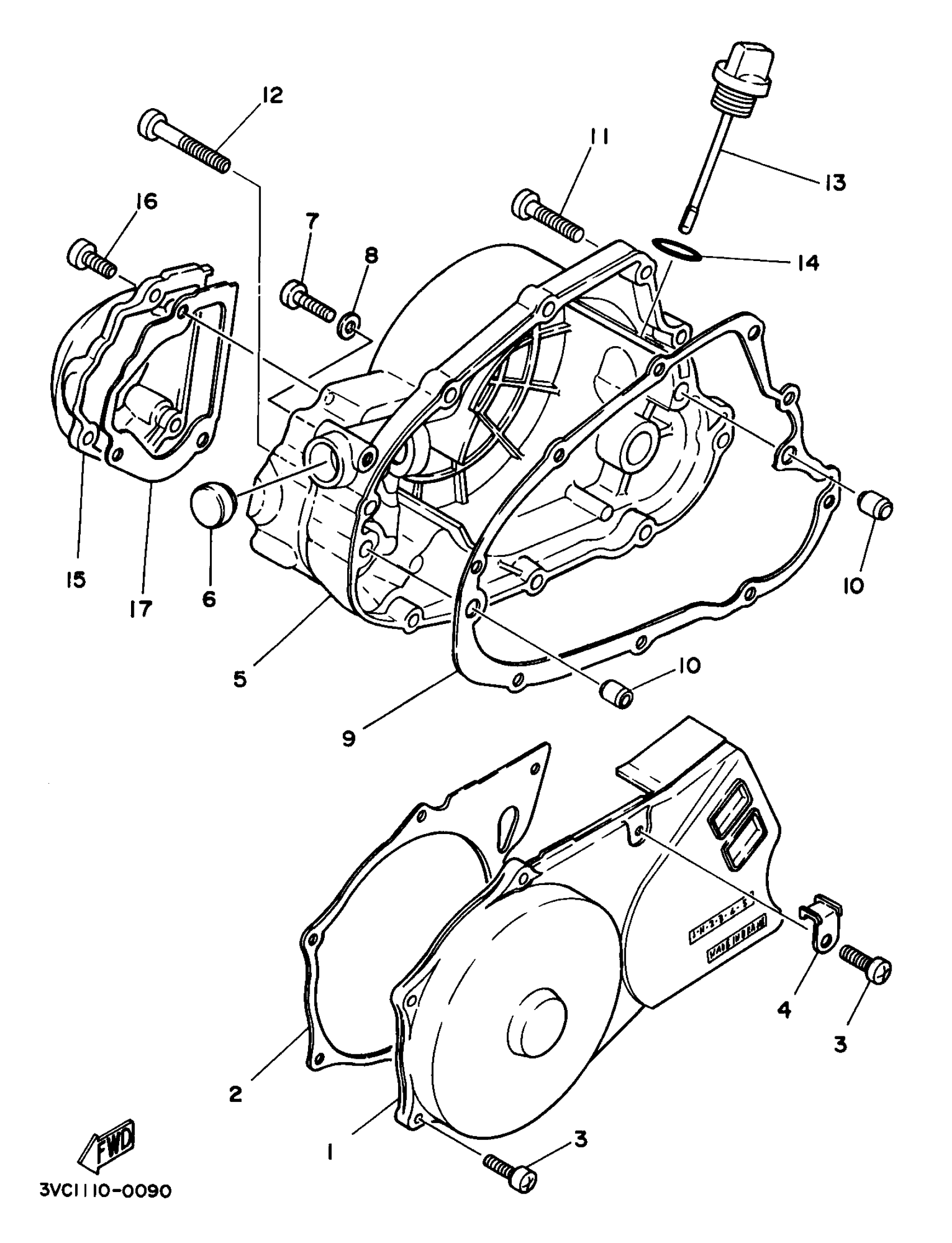

Yamaha RT180J (RT180) 1997 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

23K-E5411-00-00

Unavailable

2

GASKET 1

3VC-15455-01-00

Unavailable

3

SCREW, PAN

98517-06020-00

$8.49

4

CLAMP 2

5L9-E5484-00-00

Unavailable

5

COVER,CRANKCASE 3

5L9-E5431-00-AC

Unavailable

6

PLUG

90338-19078-00

Unavailable

7

SCREW, PAN

98517-06030-00

Unavailable

8

GASKET 256113960000

90430-06014-00

Unavailable

9

GASKET, CRANKCASE COVER 1

3VC-15451-01-00

Unavailable

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

SCREW, PAN

98507-06045-00

$3.14

13

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

14

O-RING (646)

93210-19123-00

Unavailable

15

COVER, OIL PUMP

5L9-E5416-00-AC

Unavailable

16

SCREW, PAN

98517-06020-00

$8.49

17

GASKET, OIL PUMP COVER 1

3VC-E5456-00-00

Unavailable
