Description

Price

1

CROWN, HANDLE

2TW-F3435-00-AC

Unavailable

2

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

3

BOLT, FLANGE

95817-08040-00

$7.49

4

HOLDER, HANDLE UPPER

1E6-23441-10-33

Unavailable

5

BOLT, FLANGE

95817-08035-00

$9.49

6

RACE, BALL 2

B6E-23412-00-00

$13.49

7

BALL

93501-04803-00

Unavailable

8

RACE, BALL 1

BP2-23411-00-00

$11.49

9

RACE, BALL 2

BP2-23412-00-00

$7.49

10

BALL

93503-16003-00

$2.72

11

COVER BALL RACE

10V-23416-01-00

Unavailable

12

NUT SPECIAL SHAPE M25

90179-25W23-00

$13.99

13

STAY, PLATE

3VC-F3486-00-00

Unavailable

14

BOLT, HEXAGON

97017-06012-00

$3.76

15

STAY, PLATE

3VC-F3487-00-00

Unavailable

16

BOLT, HEXAGON

97017-06012-00

$3.76

17

SCREW, PAN HEAD WI

9760N-06116-00

Unavailable

18

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

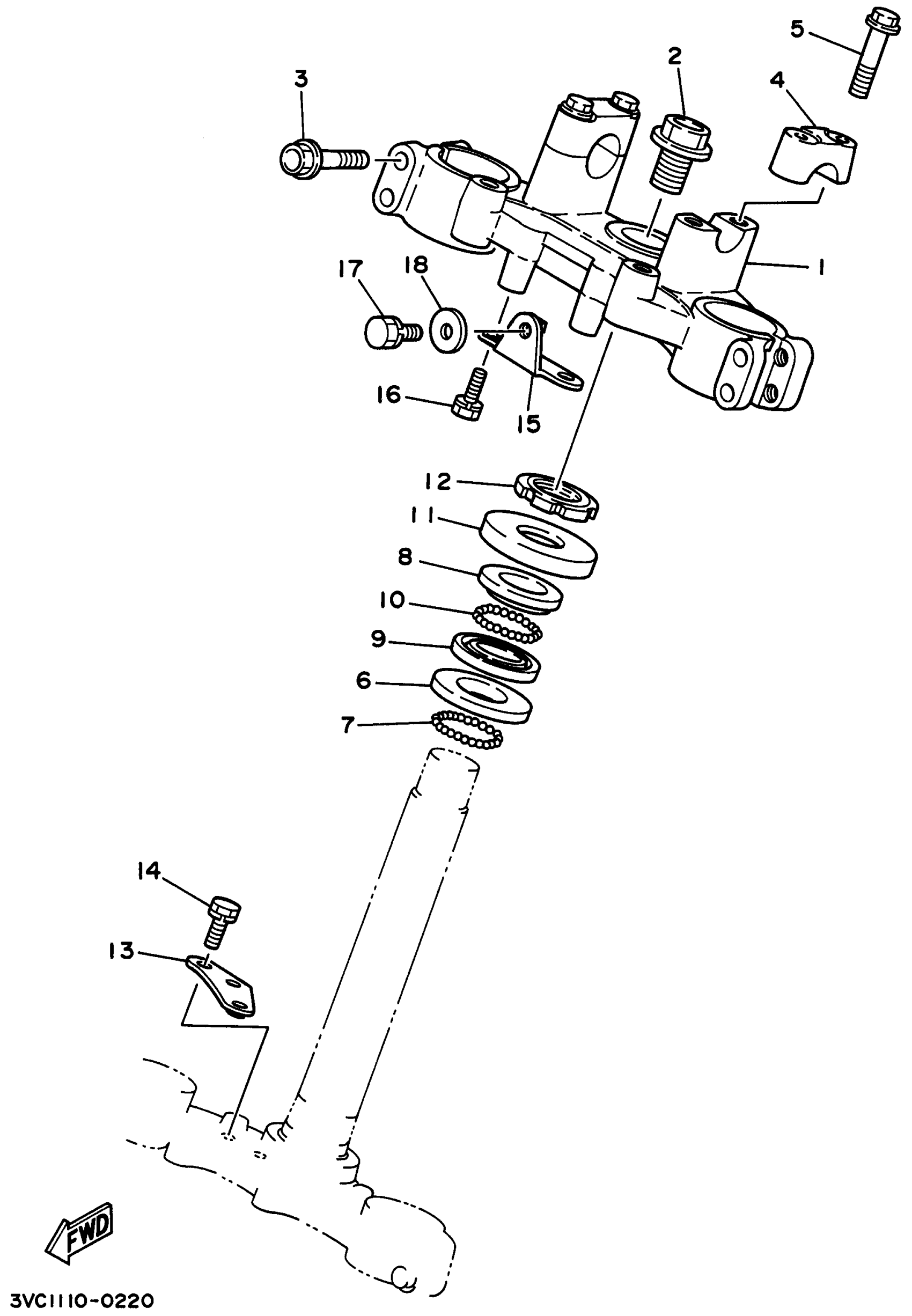

Yamaha RT180H (RT180) 1996 STEERING Diagram

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

BOLT, FLANGE

HOLDER, HANDLE UPPER

BOLT, FLANGE

RACE, BALL 2

BALL

RACE, BALL 1

RACE, BALL 2

BALL

COVER BALL RACE

NUT SPECIAL SHAPE M25

STAY, PLATE

BOLT, HEXAGON

STAY, PLATE

BOLT, HEXAGON

SCREW, PAN HEAD WI

WASHER, PLATE 8221447500
