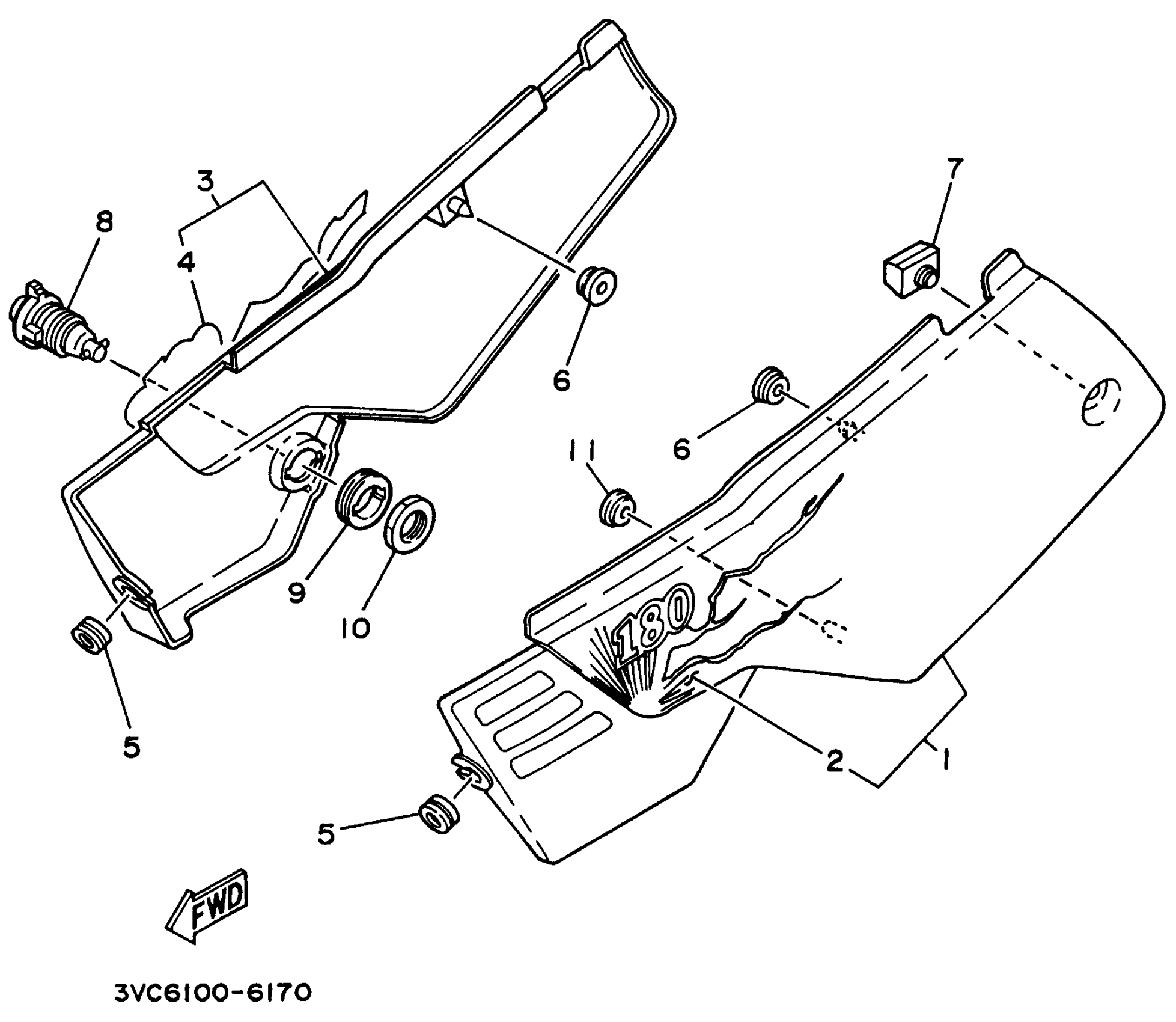

Yamaha RT180H (RT180) 1996 SIDE COVER Diagram

#

Description

Price

1

SD.CVR.LH(INVALID)

3VC-F1711-20-00

Unavailable

2

. EMBLEM 6

3VC-F1786-30-00

Unavailable

3

SD.CVR.RH

3VC-F1721-20-00

Unavailable

4

. EMBLEM 7

3VC-F1787-30-00

Unavailable

5

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

6

GROMMET

90480-01827-00

Unavailable

7

PAD, SEAT

502-29472-00-00

Unavailable

8

LOCK ASSEMBLY

3VC-F178K-00-00

Unavailable

9

GROMMET (1E6)

90480-24186-00

$8.49

10

NUT, HEXAGON (1E6)

90170-22187-00

$9.49

11

GROMMET

90480-13014-00

$8.49
