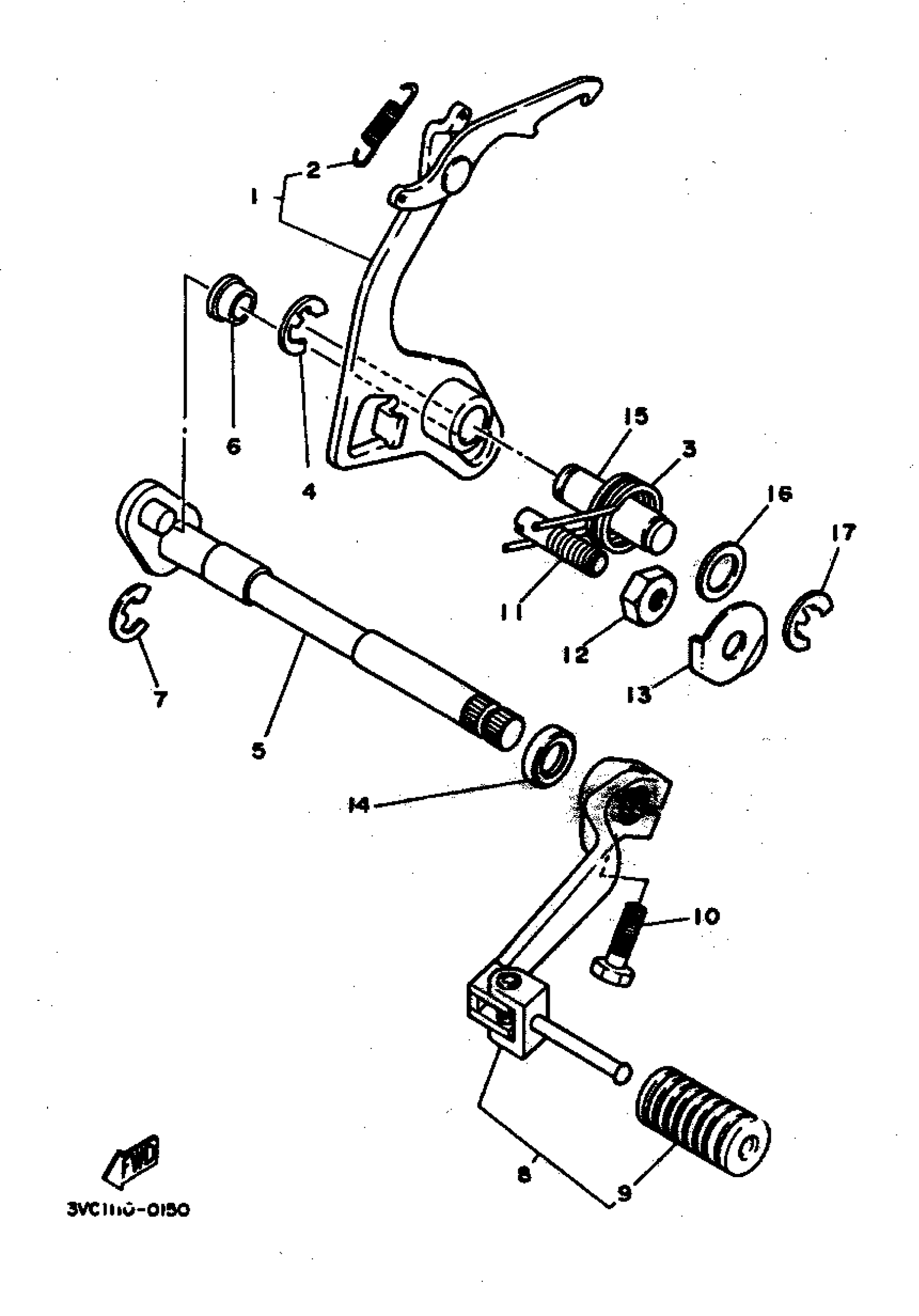

Yamaha RT180G (RT180) 1995 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASSEMBLY

23K-E8120-00-00

Unavailable

2

SPRING, TENSION (1W1)

90506-08155-00

$10.49

3

SPRING, TORSION (1W1)

90508-32349-00

$10.49

4

CIRCLIP

99006-10600-00

$9.49

5

SHIFT SHAFT ASSEMBLY

5L9-E8101-00-00

Unavailable

6

ROLLER, CHANGE LEVER

401-18178-00-00

$19.99

7

CIRCLIP

99006-10600-00

$9.49

8

SHIFT PEDAL ASSEMBLY

23K-E8110-00-00

Unavailable

9

COVER, SHIFT PEDAL

4VW-E8113-00-00

$3.13

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

SCREW (1W1)

90149-08111-00

Unavailable

12

NUT (583)

90170-08193-00

$4.29

13

WASHER LOCK 248181390000

90215-08014-00

$5.60

14

OIL SEAL

93101-12173-00

$13.49

15

SHAFT, CHANGE STOPPER SPRING

1W1-18197-01-00

Unavailable

16

WASHER (692)

90201-12M34-00

Unavailable

17

CIRCLIP

99006-10600-00

$9.49
