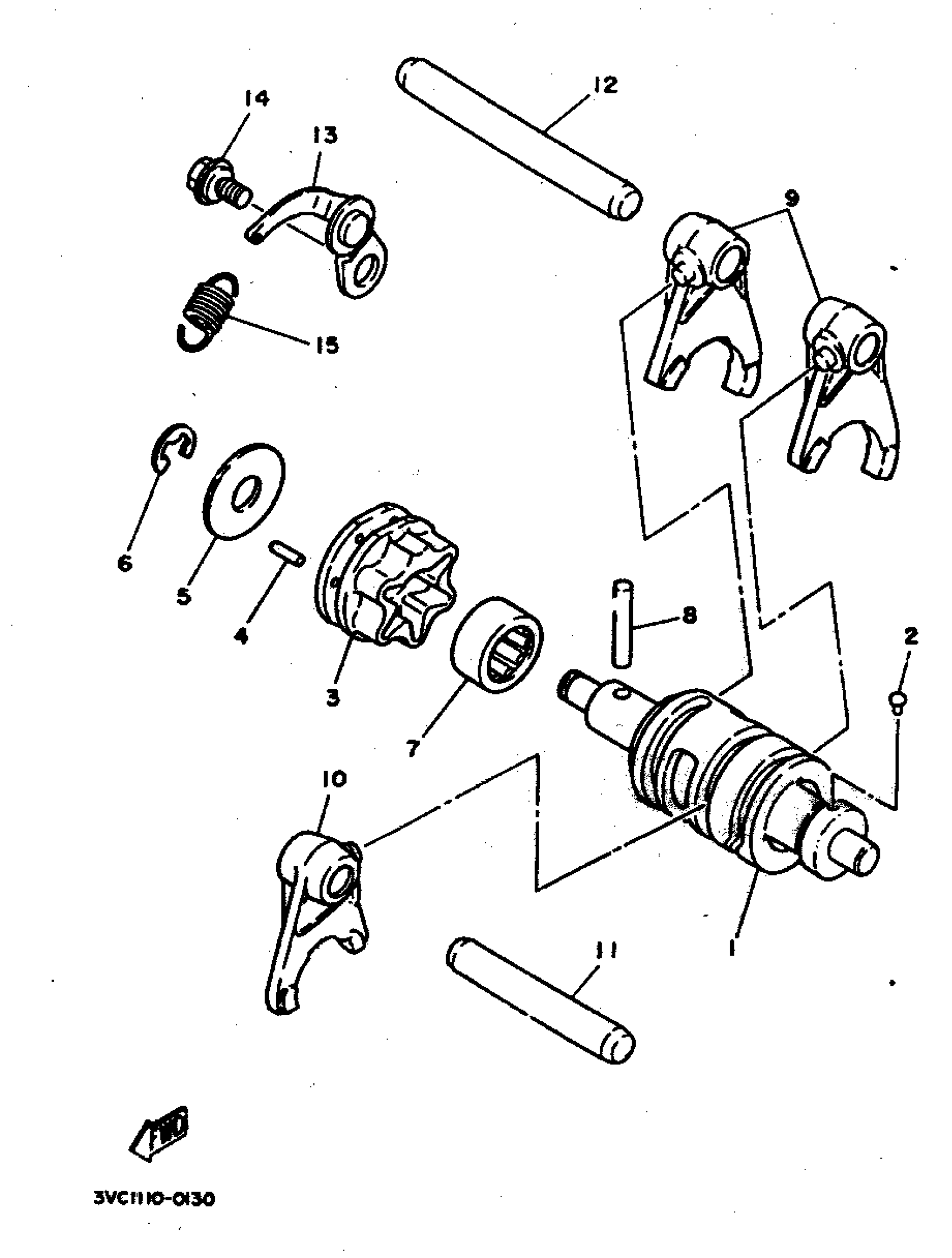

Yamaha RT180G (RT180) 1995 SHIFT CAM - SHIFT FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

1W1-18540-00-00

$106.99

2

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

3

SEGMENT, SHIFT CAM

1W1-18185-00-00

Unavailable

4

PIN,DOWEL (168)

93604-12037-00

$8.49

5

PLATE, SIDE

1W1-18561-00-00

$6.99

6

CIRCLIP(2R6)

99001-08600-00

$8.49

7

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

8

PIN,DOWEL (611)

93604-30018-00

$2.44

9

FORK, SHIFT 1

2A6-18511-00-00

$35.99

10

FORK, SHIFT 2

2A6-18512-00-00

Unavailable

11

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

Unavailable

12

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

Unavailable

13

STOPPER LEVER ASSEMBLY

5L9-E8140-00-00

Unavailable

14

BOLT, STOPPER

5L9-E8177-00-00

Unavailable

15

SPRING, TENSION (1W1)

90506-09156-00

Unavailable
