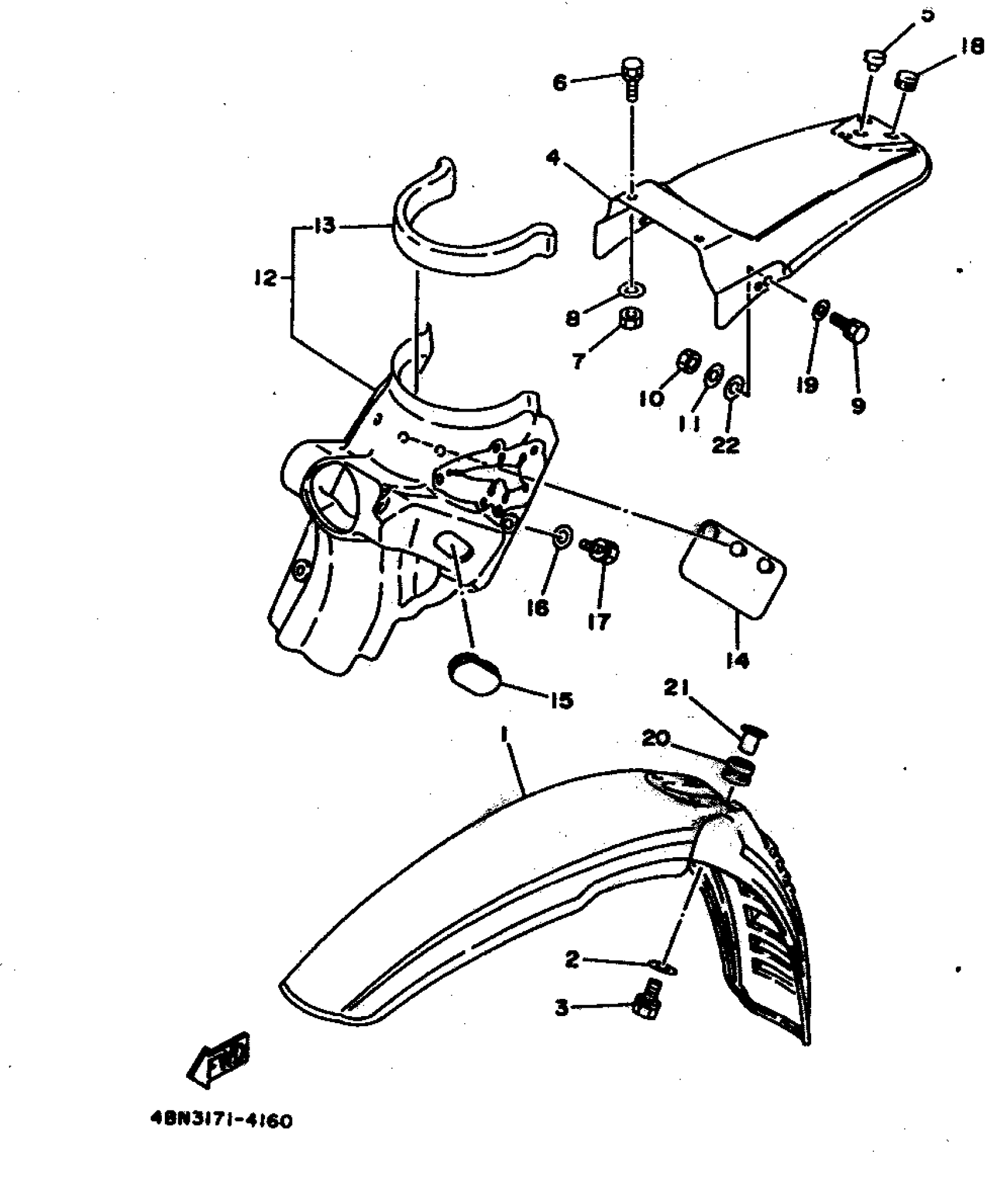

Yamaha RT180G (RT180) 1995 FENDER Diagram
#
Description
Price
1
FENDER, FRONT
4BN-F1511-00-00
Unavailable
4
FENDER, REAR
58W-F1611-30-00
Unavailable
5
GROMMET
90480-16800-00
Unavailable
6
BOLT M6
9750N-06414-00
Unavailable
9
BOLT, WITH WASHER M8
97502-08616-09
Unavailable
12
GUARD,MUD
23K-F1620-00-00
Unavailable
13
DAMPER
2A6-21639-00-00
Unavailable
15
GROMMET
90480-01254-00
Unavailable
17
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
18
GROMMET
90480-16800-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
GROMMET
90480-14198-00
Unavailable
21
COLLAR
90387-06158-00
Unavailable
22
WASHER, PLAIN
92990-08200-00
Unavailable
