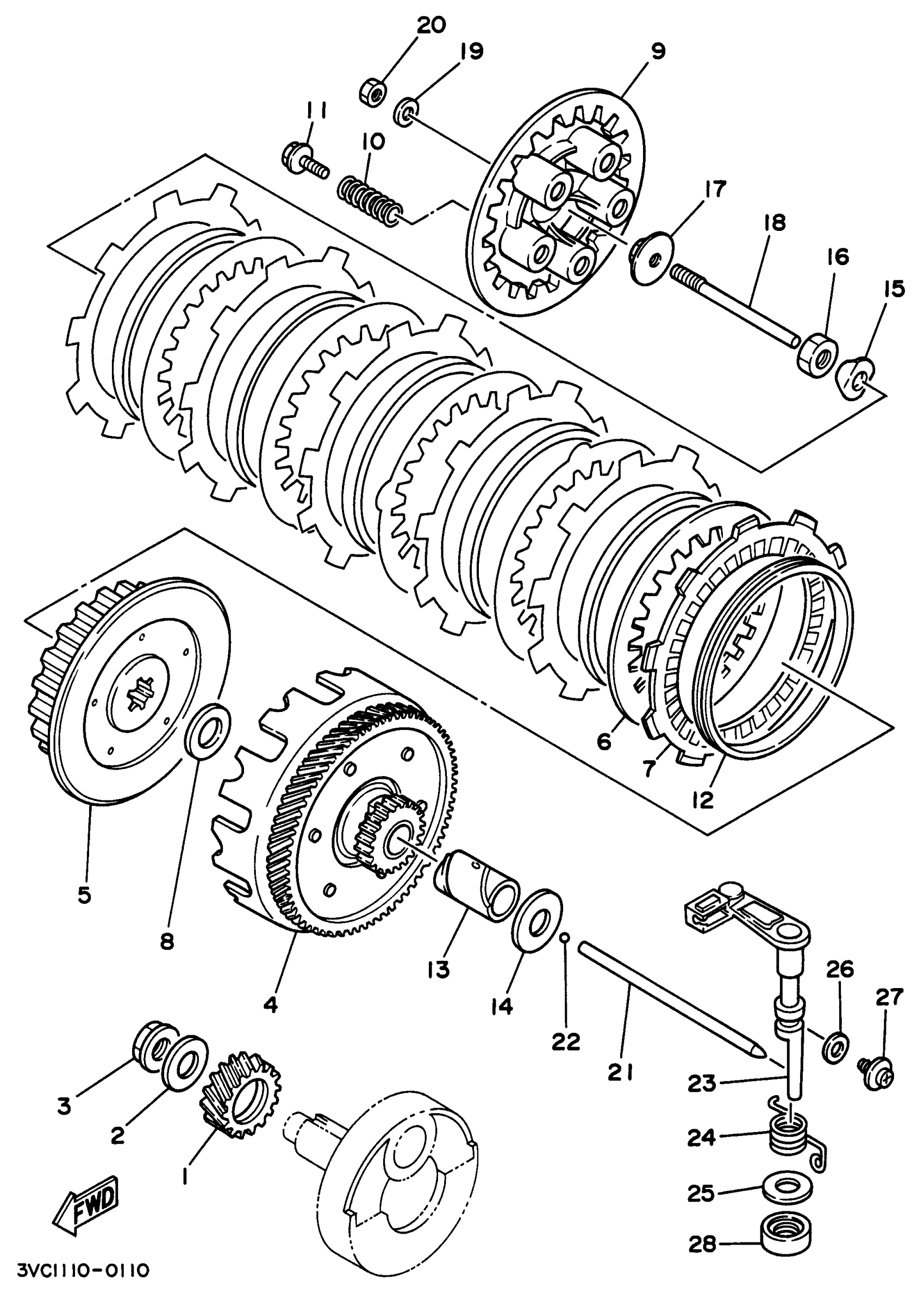

Yamaha RT180G (RT180) 1995 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5L9-16111-01-00

Unavailable

2

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

3

NUT(1EE)

90179-12659-00

$8.49

4

. PRIMARY DRIVEN GEAR COMP (71T)

1W1-16150-01-00

Unavailable

5

. BOSS, CLUTCH

1G8-16371-00-00

Unavailable

6

PLATE, CLUTCH 1

2A6-16324-10-00

$14.49

7

PLATE, FRICTION

36X-16321-00-00

$17.49

8

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

9

. PLATE, PRESSURE 1

1W1-16351-00-00

Unavailable

10

SPRING, COMPRESSION (2A6)

90501-20474-00

$9.49

11

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

12

. RING, CUSHION

307-16367-00-00

Unavailable

13

SPACER (525)

90560-17147-00

Unavailable

14

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

15

WASHER, LOCK (2K6)

90215-14204-00

$9.49

16

NUT, HEXAGON

90170-14171-00

Unavailable

17

PLATE, PUSH

1W1-16358-01-00

Unavailable

18

ROD, PUSH 1

5L9-E6356-00-00

Unavailable

19

WASHER(6TA)

92907-06200-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

ROD, PUSH 2

502-E6357-00-00

Unavailable

22

BALL

93503-16003-00

Unavailable

23

PUSH LEVER ASSEMBLY

5L9-E6380-01-00

Unavailable

24

SPRING, TORSION (1W1)

90508-20345-00

Unavailable

25

WASHER PLATE 150251530000

90201-14217-00

Unavailable

26

GASKET(3AJ)

90430-08204-00

Unavailable

27

SCREW (1M1)

90149-08108-00

Unavailable

28

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable
