1992 Yamaha RT180 (RT180D) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1992 Yamaha RT180 (RT180D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

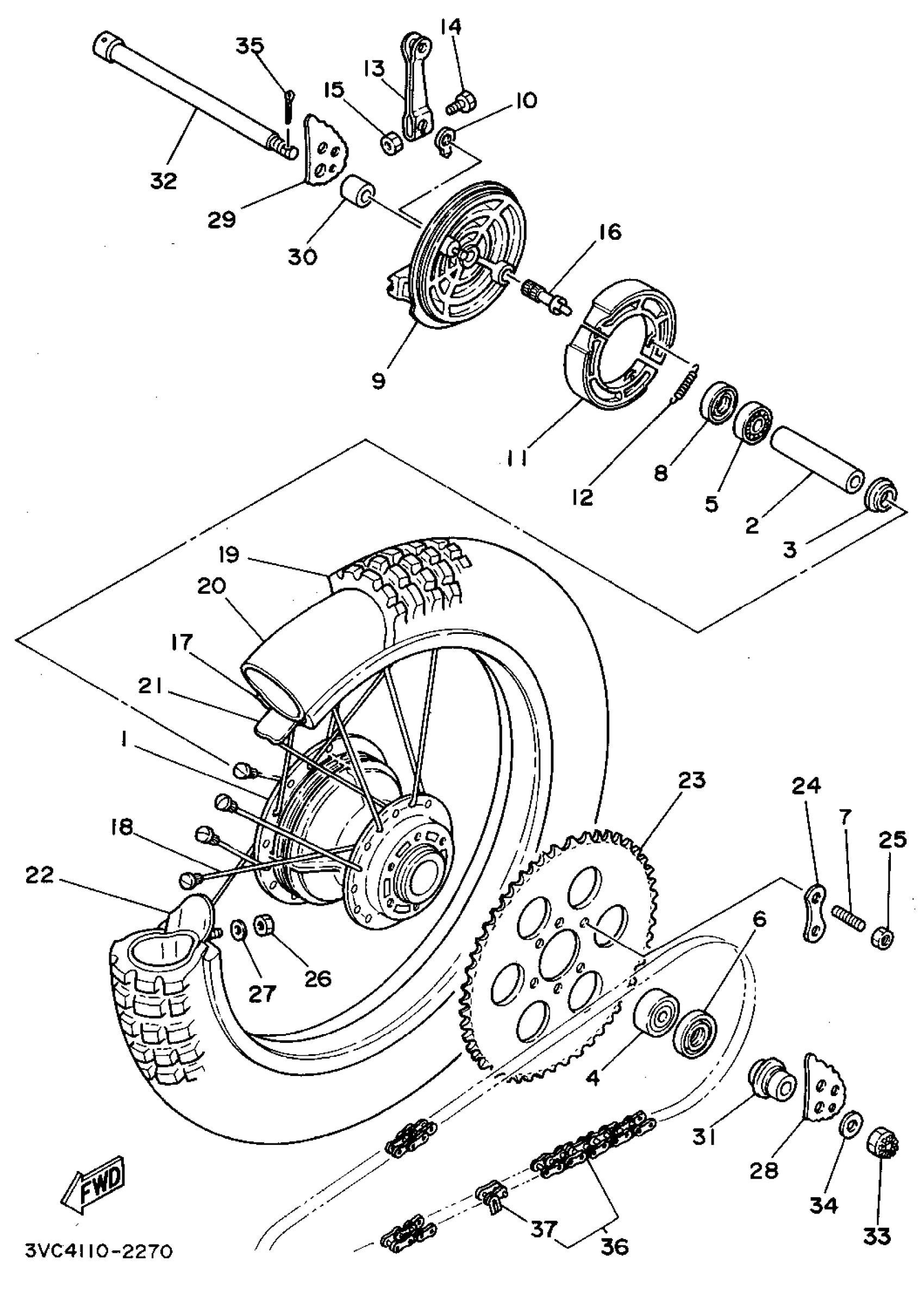

1992 Yamaha RT180 (RT180D) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

1W1-25311-00-98

1
Out of stock

2

SPACER

90560-15313-00

1

$39.77

In stock

3

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

4

BEARING

93306-30212-00

1

$33.35

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

SEAL,OIL

93106-26005-00

1

$6.67

In stock

7

BOLT, STUD (537 HUB)

90116-10221-00

1

$4.08

In stock

8

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

9

PLATE, BRAKE SHOE

4F2-25321-02-98

1
Out of stock

10

PLATE

3Y6-2533A-01-00

1

$5.30

In stock

11

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

12

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

13

LEVER, CAM SHAFT

1E2-25155-00-00

—
Out of stock

14

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

15

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

16

CAMSHAFT

2RH-25351-00-00

—

$29.14

In stock

17

RIM 2.15-18

94421-18854-00

1
Out of stock

18

REAR SPOKE SET

401-25304-20-00

—
Out of stock

19

TIRE (100/100-18 59P MT21 TT)

94110-188F3-00

1
Out of stock

20

TUBE (3R9)

94241-18153-00

—

$93.82

In stock

21

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

22

SPACER, BEAD

58W-F5394-00-00

1
Out of stock

23

SPROCKET, DRIVEN (51T)

3VC-F5451-00-00

1
Out of stock

24

WASHER

4LR-F5412-00-00

1
Out of stock

25

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

28

PULLER, CHAIN (L.H)

1W2-25388-01-00

—
Out of stock

29

PULLER, CHAIN (R.H)

1W2-25389-01-00

—
Out of stock

30

COLLAR

90387-15115-00

1
Out of stock

31

COLLAR, WHEEL

23K-F5383-00-00

1
Out of stock

32

AXLE, WHEEL

5L9-F5381-01-00

1
Out of stock

33

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

34

WASHER (525)

90201-15238-00

—
Out of stock

35

PIN, COTTER

91490-30030-00

—

$7.15

In stock

36

CHAIN(53V)

94580-24126-00

—

$47.55

In stock

37

JOINT, CHAIN

94682-51001-00

—

$4.42

In stock
