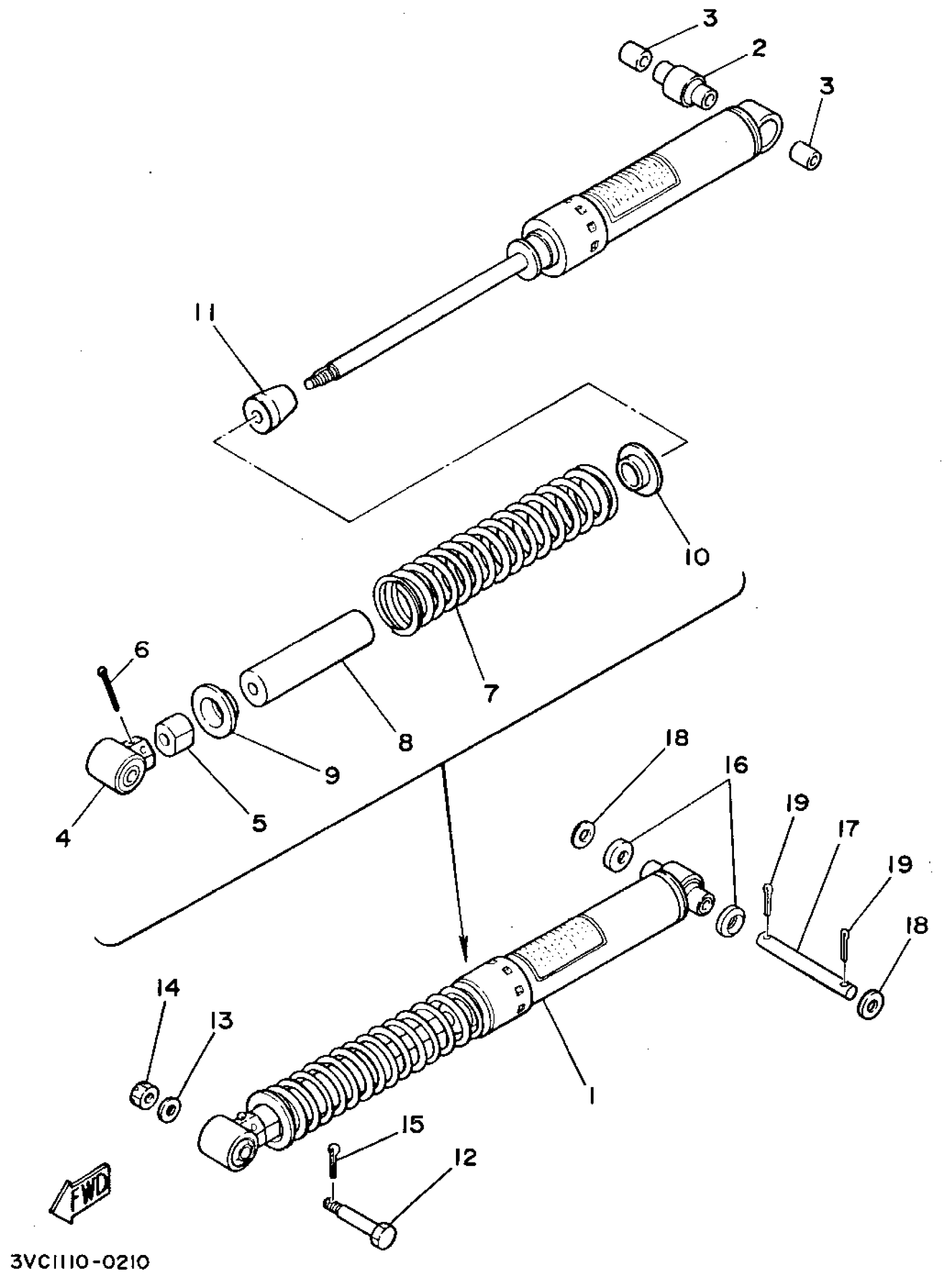

Yamaha RT180D (RT180) 1992 REAR SUSPENSION Diagram

#

Description
Price

1

SHOK/ABS ASSY/REAR

3VC-F2210-20-00

Unavailable

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

Unavailable

3

BUSH, SOLID (1M1)

90380-12051-00

$12.48

4

. BRACKET, UPPER

5L9-F2219-00-00

Unavailable

5

. SEAT, SPRING UPPER

5L9-F2213-00-00

Unavailable

6

PIN, COTTER (AM5)

91490-30045-00

$3.81

7

. SPRING, COMPRESSION

90-50190-51-40

Unavailable

8

. SLEEVE, ROD

5L9-F2496-00-00

Unavailable

9

. GUIDE, SPRING 1

5L9-F2214-00-00

Unavailable

10

. SEAT, SPRING LOWER

3VC-F2223-00-00

Unavailable

11

. STOPPER, BUMP

2A-62249-30-00

Unavailable

12

BOLT (1M1)

90109-10453-00

Unavailable

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.73

14

NUT (682)

95380-10700-00

$5.29

15

PIN, COTTER

91490-20025-00

$1.49

16

COVER, THRUST 2

5L9-F2129-00-00

Unavailable

17

PIN, CLEVIS (3Y2)

90240-12075-00

Unavailable

18

WASHER, PLATE(663)

92990-12600-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable
