1992 Yamaha RT180 (RT180D) OIL Pump Diagram

← All diagrams

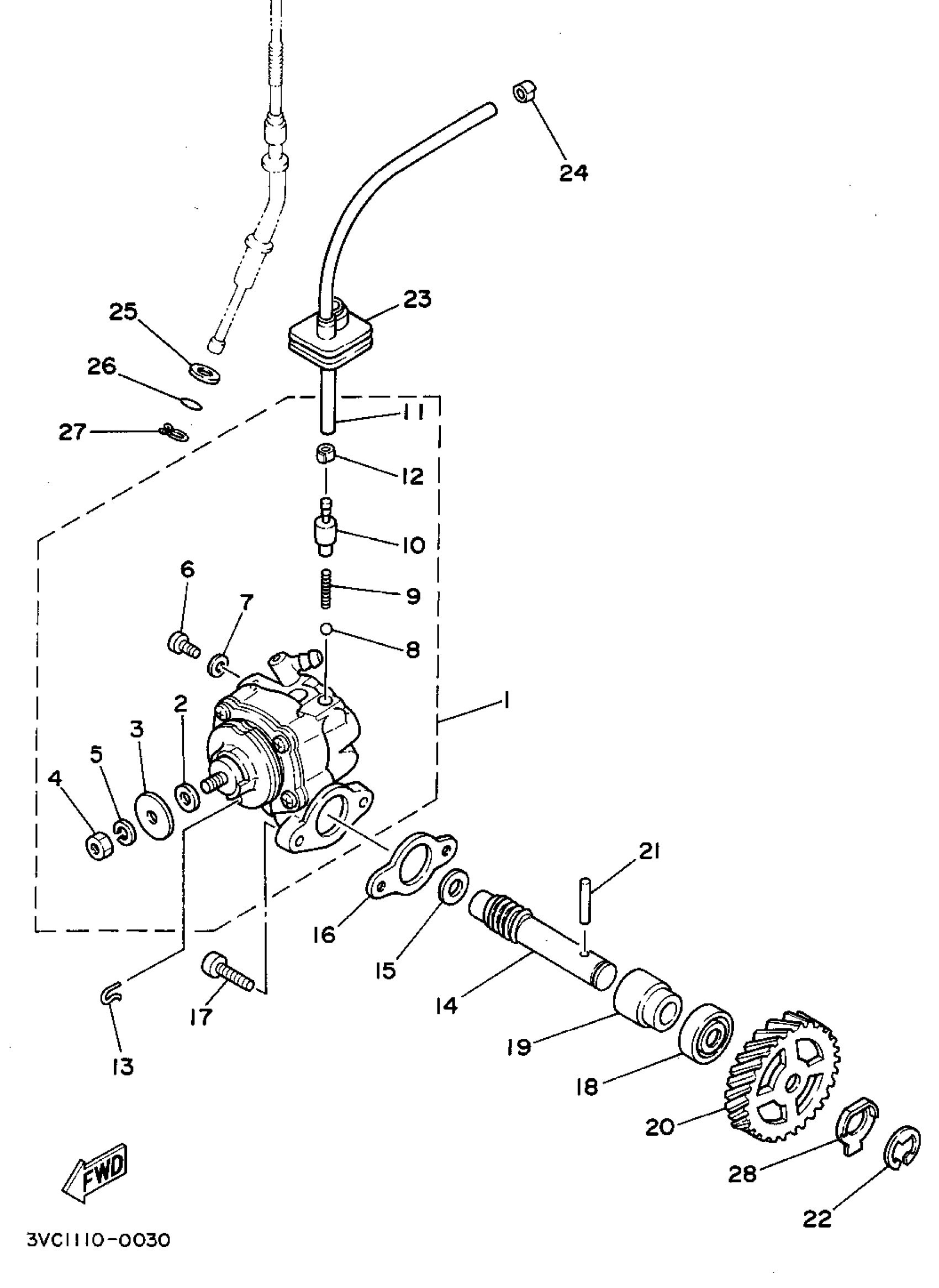

Find the part on the OIL Pump diagram for your 1992 Yamaha RT180 (RT180D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha RT180 (RT180D) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

525-13101-01-00

—
Out of stock

2

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

3

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

SCREW, BIND

98980-04008-00

1

$3.26

In stock

7

GASKET 137131870000

90430-04004-00

1
Out of stock

8

BALL

93505-32002-00

1

$2.22

In stock

9

SPRING, CHECK BALL (451)

90501-02217-00

1

$5.62

In stock

10

NOZZLE

402-13552-00-00

—

$10.32

In stock

11

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

12

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

13

CLIP

2H3-E3133-00-00

1
Out of stock

14

SHAFT, WORM

2H3-E3175-01-00

1
Out of stock

15

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

16

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

17

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

18

OIL SEAL (10X22X7-137)

93101-10002-00

—

$6.68

In stock

19

METAL, WORM SHAFT OUTER

2H3-E3176-00-00

1
Out of stock

20

GEAR, PUMP DRIVE

23K-E3178-00-00

1
Out of stock

21

PIN, SPRING

91609-25020-00

1
Out of stock

22

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

23

HOLDER, OIL PIPE

5L9-E3174-00-00

1
Out of stock

24

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

25

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

26

O-RING

93210-07800-09

1
Out of stock

27

CIRCLIP (2A6)

90468-08086-00

—

$5.62

In stock

28

WASHER, LOCK

90215-10253-00

1
Out of stock
