1992 Yamaha RT180 (RT180D) Crankcase Cover 1 Diagram

← All diagrams

Find the part on the Crankcase Cover 1 diagram for your 1992 Yamaha RT180 (RT180D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

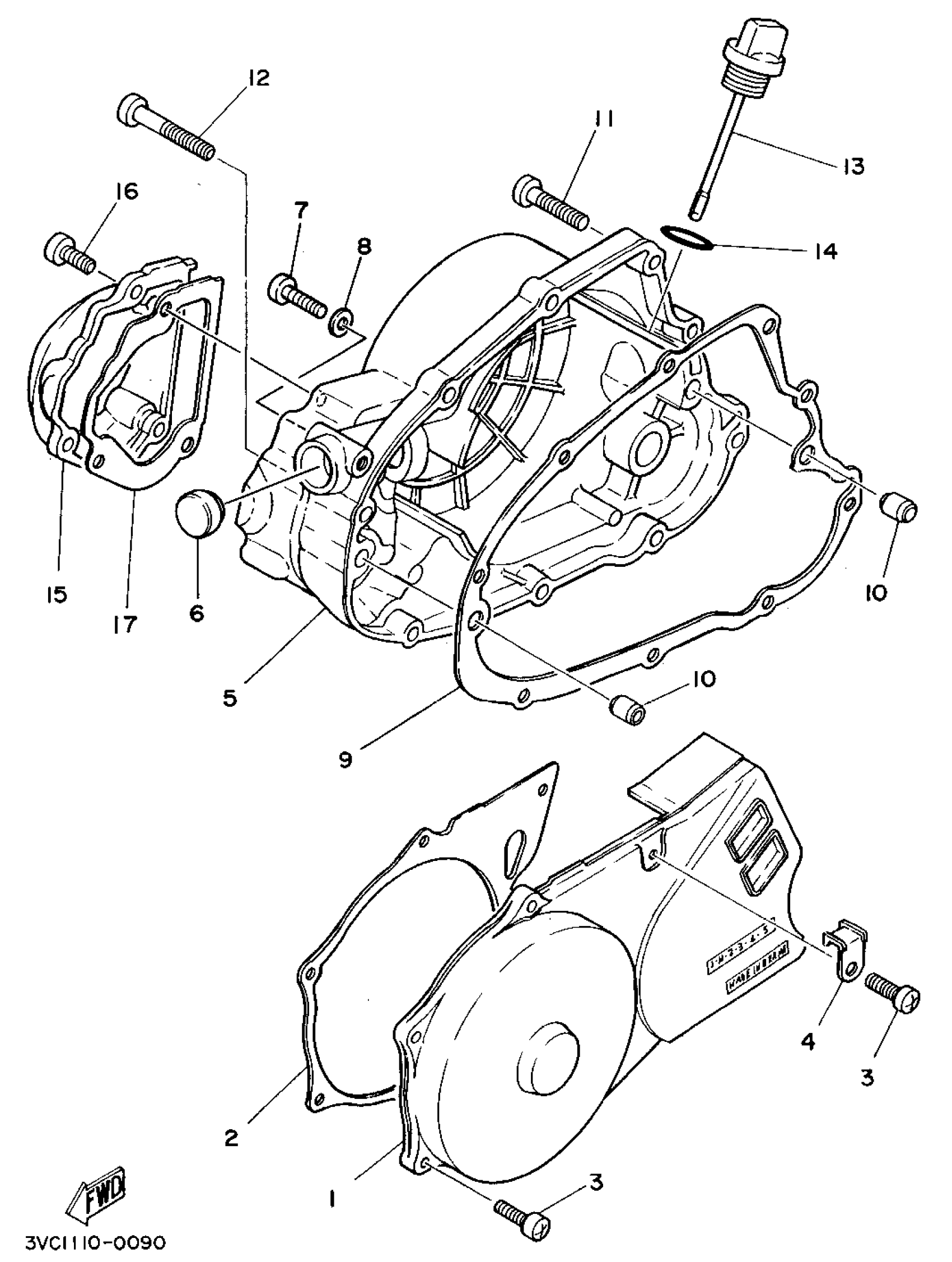

1992 Yamaha RT180 (RT180D) Crankcase Cover 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE 1

23K-E5411-00-00

1
Out of stock

2

GASKET 1

3VC-15455-01-00

1
Out of stock

3

SCREW, PAN

98517-06020-00

1
Out of stock

4

CLAMP 2

5L9-E5484-00-00

1
Out of stock

5

COVER,CRANKCASE 3

5L9-E5431-00-AC

1
Out of stock

6

PLUG

90338-19078-00

1
Out of stock

7

SCREW, PAN

98517-06030-00

1
Out of stock

8

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

9

GASKET, CRANKCASE COVER 1

3VC-15451-01-00

1
Out of stock

10

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

11

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

12

SCREW, PAN

98507-06045-00

1

$2.63

In stock

13

PLUG, OIL LEVEL

2H3-E5362-00-00

1
Out of stock

14

O-RING (646)

93210-19123-00

—

$6.91

In stock

15

COVER, OIL PUMP

5L9-E5416-00-AC

—
Out of stock

16

SCREW, PAN

98517-06020-00

1
Out of stock

17

GASKET, OIL PUMP COVER 1

3VC-E5456-00-00

1
Out of stock
