1991 Yamaha RT180 (RT180B) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1991 Yamaha RT180 (RT180B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

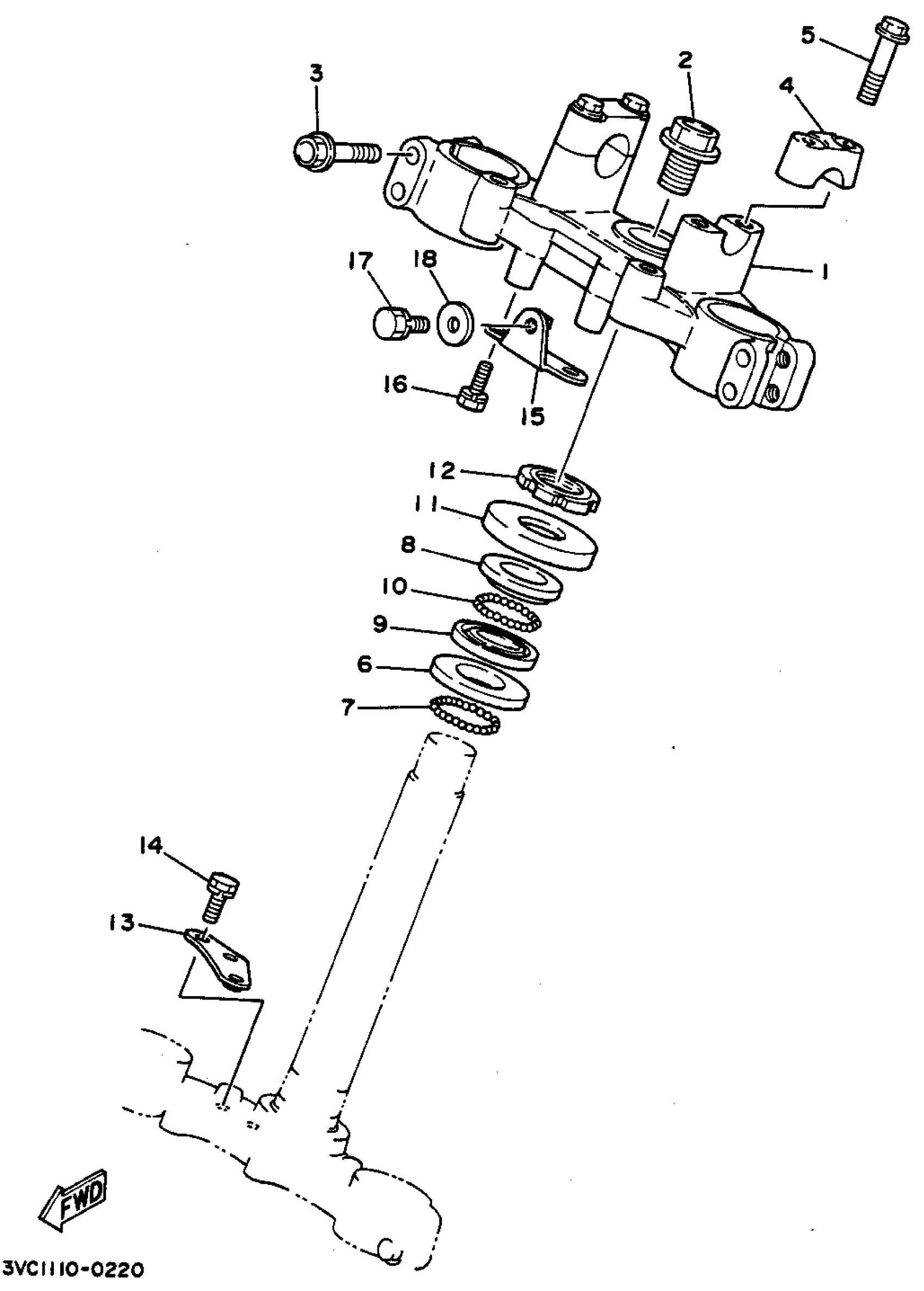

1991 Yamaha RT180 (RT180B) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CROWN, HANDLE

2TW-F3435-00-NW

1
Out of stock

2

1

$3.91

In stock

3

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

4

HOLDER, HANDLE UPPER

3V9-F3441-00-NW

1
Out of stock

5

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

6

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

7

BALL

93501-04803-00

1
Out of stock

8

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

9

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

10

BALL

93503-16003-00

1

$2.14

In stock

11

COVER BALL RACE

10V-23416-01-00

—
Out of stock

12

NUT SPECIAL SHAPE M25

90179-25W23-00

1
Out of stock

13

STAY, PLATE

3VC-F3486-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

15

STAY, PLATE

3VC-F3487-00-00

1
Out of stock

16

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

17

SCREW, PAN HEAD WI

9760N-06116-00

1
Out of stock

18

WASHER, PLATE

90201-06380-00

—

$0.57

In stock
