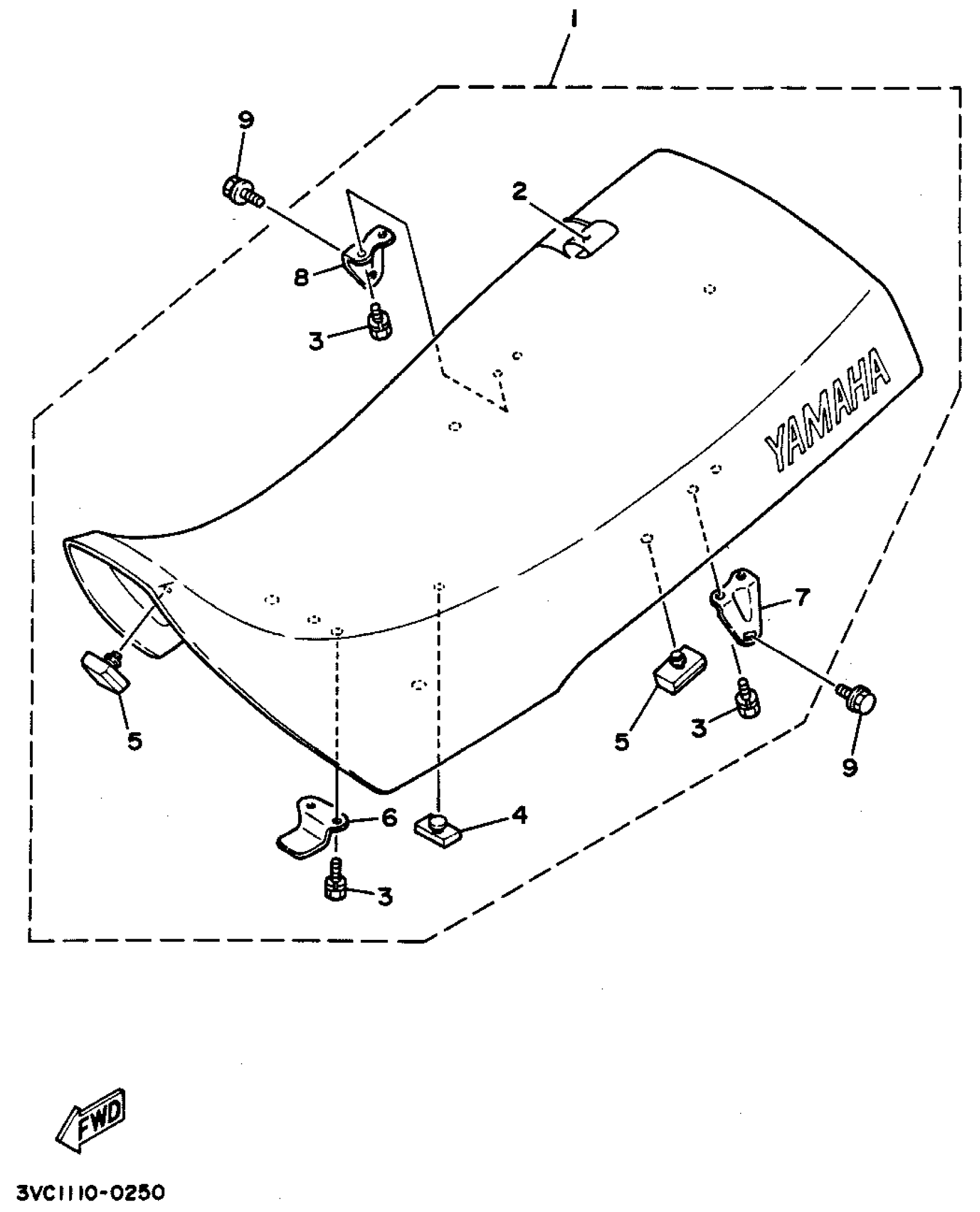

Yamaha RT180B (RT180) 1991 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSY

2TW-F4770-40-00

Unavailable

1

SEMI-DBLE SEATASSY

3VC-F4770-40-00

Unavailable

2

. COVER, SEAT

3VC-F4731-00-00

Unavailable

2

. COVER, SEAT

3VC-F4731-10-00

Unavailable

3

BOLT, HEXAGON

97017-06012-00

$3.76

4

DAMPER, SEAT

509-24724-00-00

$10.99

5

PAD, SEAT

502-29472-00-00

Unavailable

6

. BRACKET, SEAT

5L9-F4748-00-00

Unavailable

7

BRACKET SEAT

5L9-F4738-10-00

Unavailable

8

BRACKET/SEAT

5L9-F4728-10-00

Unavailable

9

BOLT, WITH WASHER M8

97506-08512-00

Unavailable
