1991 Yamaha RT180 (RT180B) Front Brake Caliper Diagram

← All diagrams

Find the part on the Front Brake Caliper diagram for your 1991 Yamaha RT180 (RT180B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

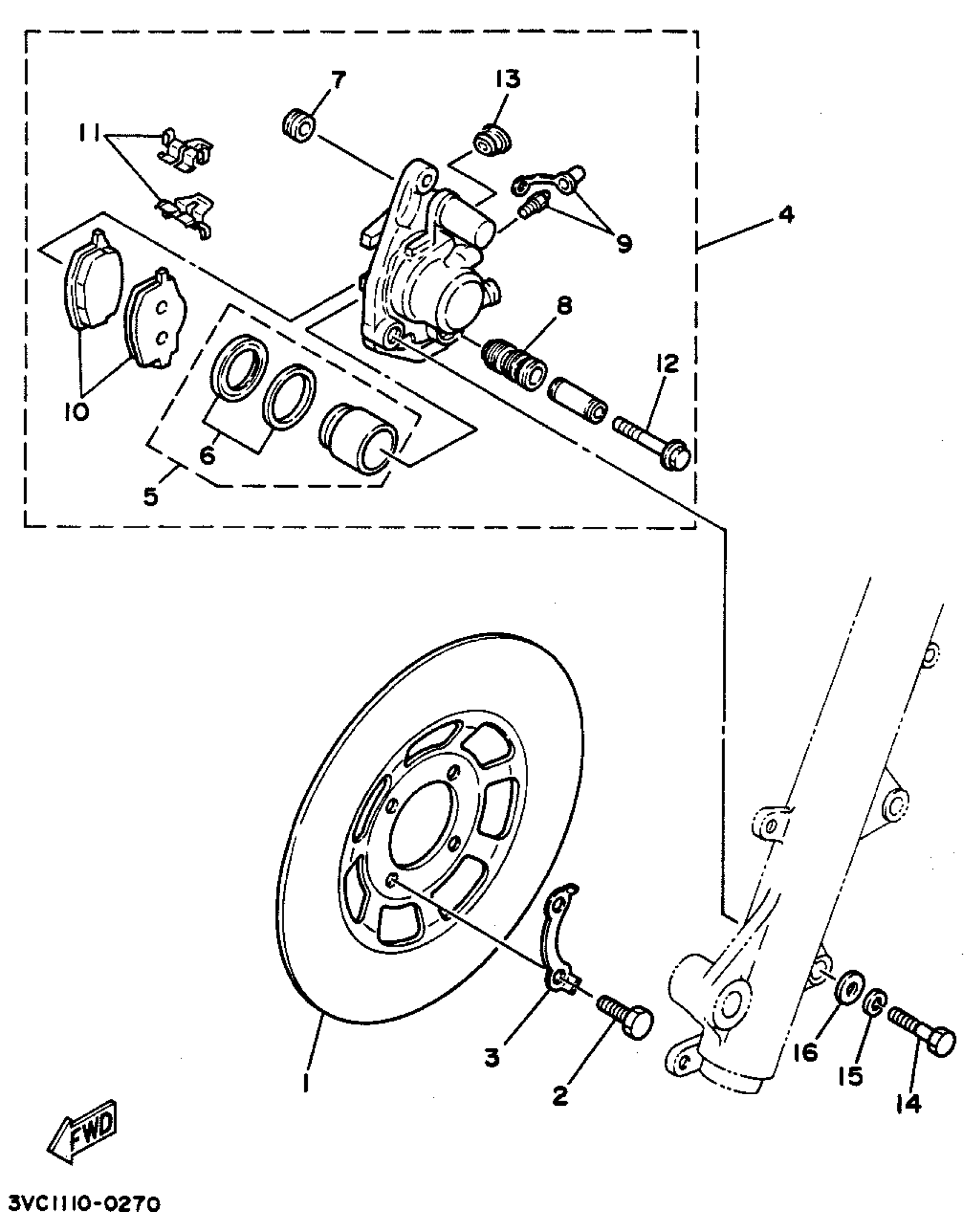

1991 Yamaha RT180 (RT180B) Front Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC,BRAKE

3M5-25831-00-00

1
Out of stock

2

BOLT (341-25411-00)

90109-08367-00

1
Out of stock

3

WASHER

404-25412-00-00

1
Out of stock

4

CALIPER ASS''S (LEFT)

55W-2580T-00-00

1
Out of stock

5

. PISTON ASSEMBLY, CALIPER

55W-W0057-00-00

1
Out of stock

6

CALIPER SEAL KIT

55W-W0047-00-00

—

$58.02

In stock

7

BOOT 2

5R2-25937-00-00

1

$31.48

In stock

8

BOOT 2

34X-25937-00-00

1

$27.97

In stock

9

BLEED SCREW KIT

15B-W0048-00-00

1

$18.09

In stock

10

BRAKE PAD KIT

55W-W0045-01-00

—

$40.91

In stock

11

. SUPPORT, PAD

55W-25919-00-00

1
Out of stock

12

BOLT

5KN-25926-01-00

1

$7.82

In stock

13

CAP, INDICATOR

34X-25845-00-00

1

$14.55

In stock

14

BOLT, WASHER BASED(3VD)

90105-10638-00

1

$6.22

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

—

$3.00

In stock
