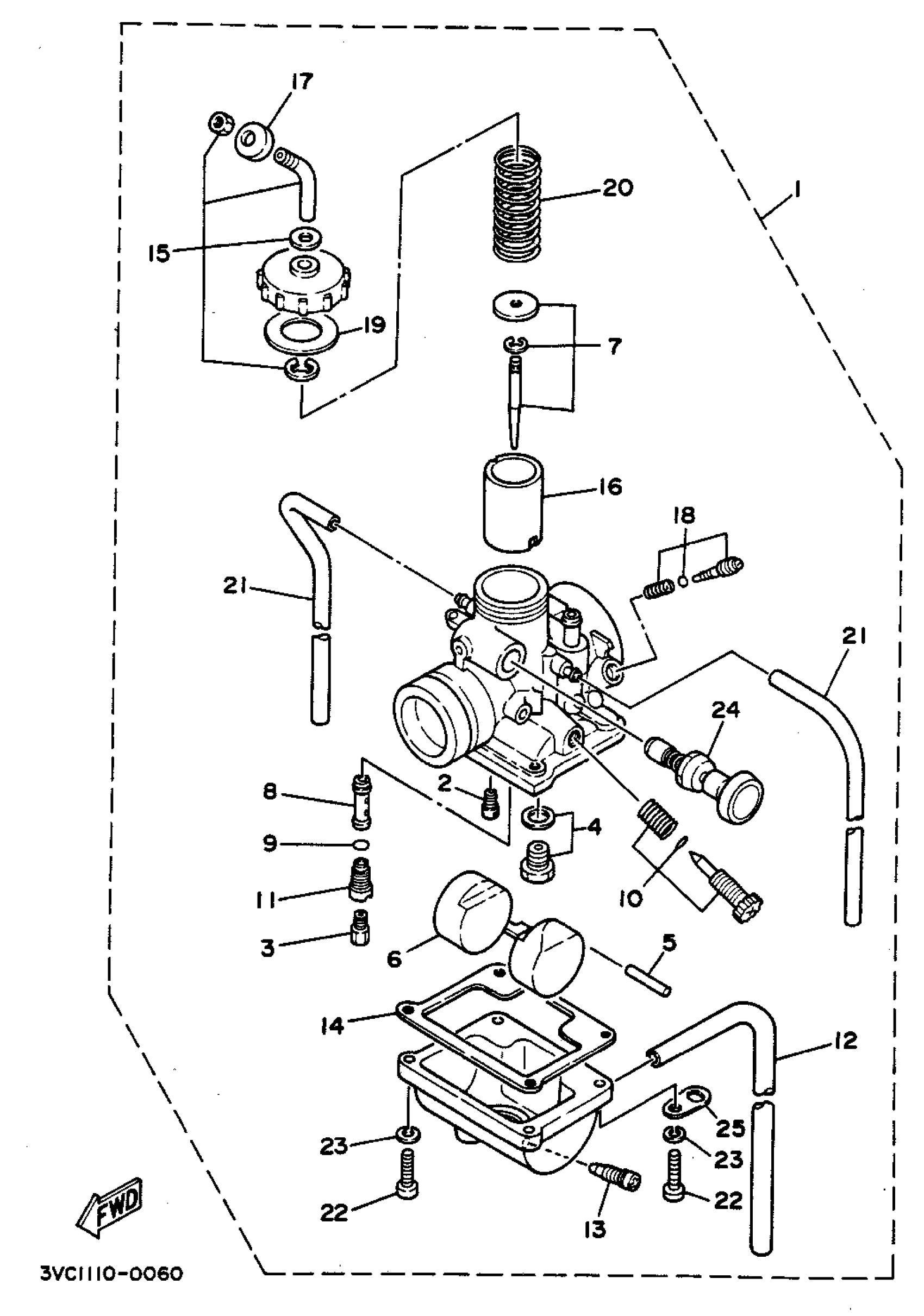

Yamaha RT180B (RT180) 1991 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3VC-14101-00-00

Unavailable

2

JET, PILOT (# 27.5)

260-14142-27-00

$9.99

3

JET, MAIN #130

137-14143-26-A0

$7.99

4

NEEDLE VALVE SET

2MW-14107-25-00

Unavailable

5

PIN, FLOAT

127-14186-00-00

$6.65

6

FLOAT

314-14185-00-00

$66.99

7

. NEEDLE SET

3VC-1490J-00-00

Unavailable

8

. NOZZLE, MAIN

2F5-14141-42-00

Unavailable

9

O-RING

214-14147-00-00

$7.99

10

THROTTLE SCREW SET

18G-14103-00-00

$27.99

11

HOLDER

2N4-14145-00-00

Unavailable

12

HOSE (L600)

90445-083J5-00

$10.49

13

PLUG, DRAIN

12R-14191-00-00

$16.49

14

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

15

CABLE ADJUST SCREW SET

10X-14106-00-00

$39.99

16

. VALVE, THROTTLE 1

314-14112-30-00

Unavailable

17

CAP

3X3-14169-00-00

Unavailable

18

AIR SCREW SET

10W-14104-00-00

Unavailable

19

GASKET

2A6-14126-00-00

Unavailable

20

SPRING, THROTTLE VALVE

2V0-14131-00-00

Unavailable

21

PIPE

23F-14197-00-00

Unavailable

22

SCREW, PAN HEAD

98517-04016-00

Unavailable

23

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

24

PLUNGER, STARTER

4U5-14171-00-00

Unavailable

25

PLATE

132-14146-00-00

Unavailable
