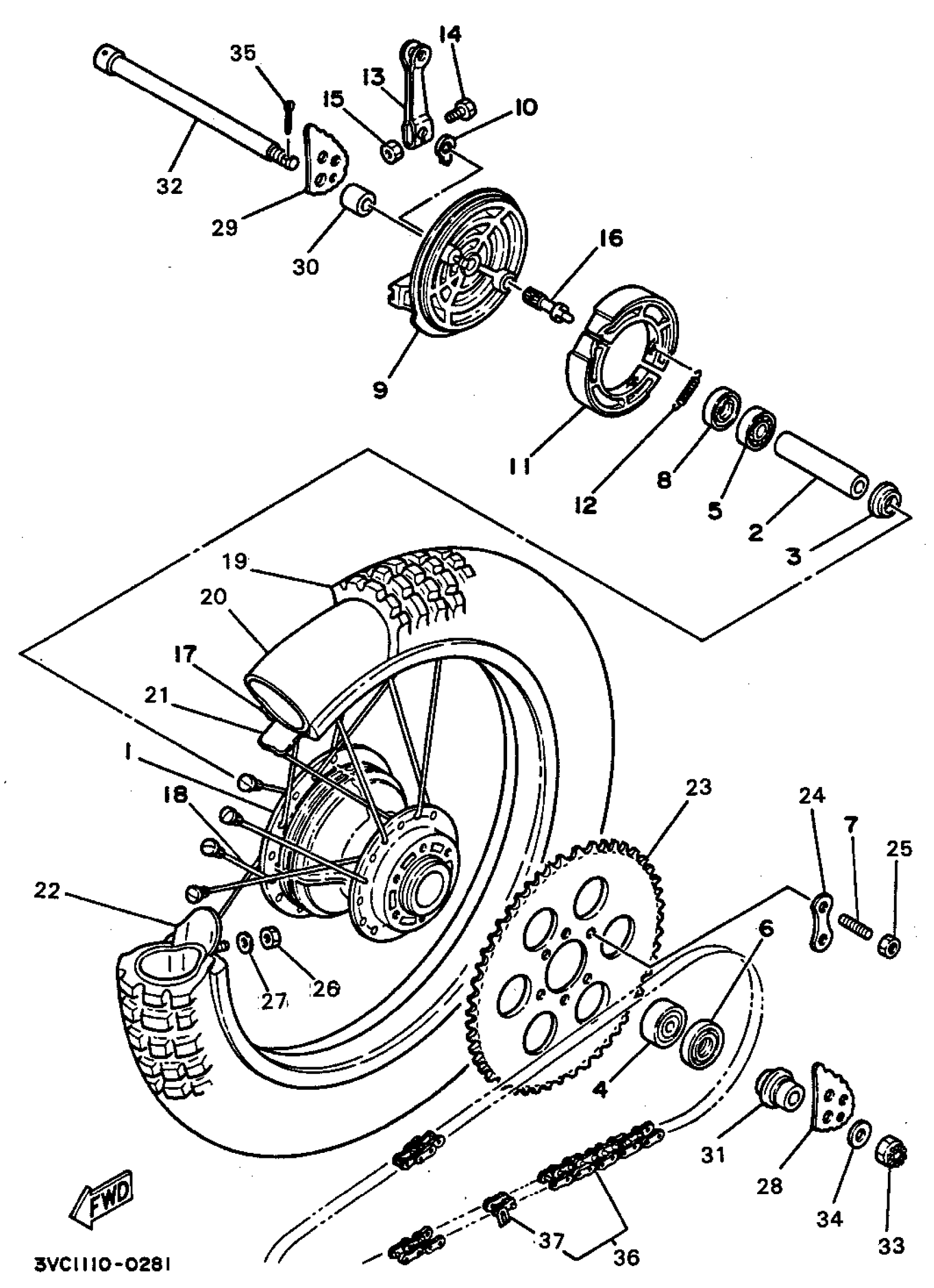

Yamaha RT180A (RT180) 1990 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5L9-F5311-00-AC

Unavailable

2

SPACER

90560-15313-00

$46.99

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

BEARING

93306-20205-00

$38.99

6

SEAL,OIL

93106-26005-00

$7.20

7

BOLT, STUD (537 HUB)

90116-10221-00

$4.88

8

OIL SEAL (22X35X5)

93104-22018-00

$11.49

9

PLATE, BRAKE SHOE

23K-F5321-00-AC

Unavailable

10

PLATE

3Y6-2533A-01-00

$5.49

11

BRAKE SHOE KIT

3FA-W253A-00-00

$24.99

12

SPRING (5T9)

90506-17328-00

Unavailable

13

LEVER, CAM SHAFT

1E2-25155-00-00

Unavailable

14

BOLT, HEXAGON (538)

90101-06278-00

$2.17

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

CAMSHAFT

2RH-25351-00-00

Unavailable

17

RIM 2.15-18

94421-18854-00

Unavailable

18

SPOKE SET;REAR WHL

33G-25304-00-00

Unavailable

19

TIRE

94110-187N4-00

Unavailable

20

TUBE (3R9)

94241-18153-00

Unavailable

21

BAND, RIM (2J4)

94340-18086-00

Unavailable

22

SPACER, BEAD

58W-F5394-00-00

Unavailable

23

SPROCKET, DRIVEN (51T)

3VC-F5451-00-00

Unavailable

24

WASHER

4LR-F5412-00-00

Unavailable

25

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

27

WASHER, PLAIN

92990-08200-00

Unavailable

28

PULLER, CHAIN (L.H)

1W2-25388-01-00

Unavailable

29

PULLER, CHAIN (R.H)

1W2-25389-01-00

Unavailable

30

COLLAR

90387-15115-00

Unavailable

31

COLLAR, WHEEL

23K-F5383-00-00

Unavailable

32

AXLE, WHEEL

5L9-F5381-01-00

Unavailable

33

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

34

WASHER (525)

90201-15238-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

36

CHAIN(53V)

94580-24126-00

Unavailable

37

JOINT, CHAIN

94682-51001-00

Unavailable
