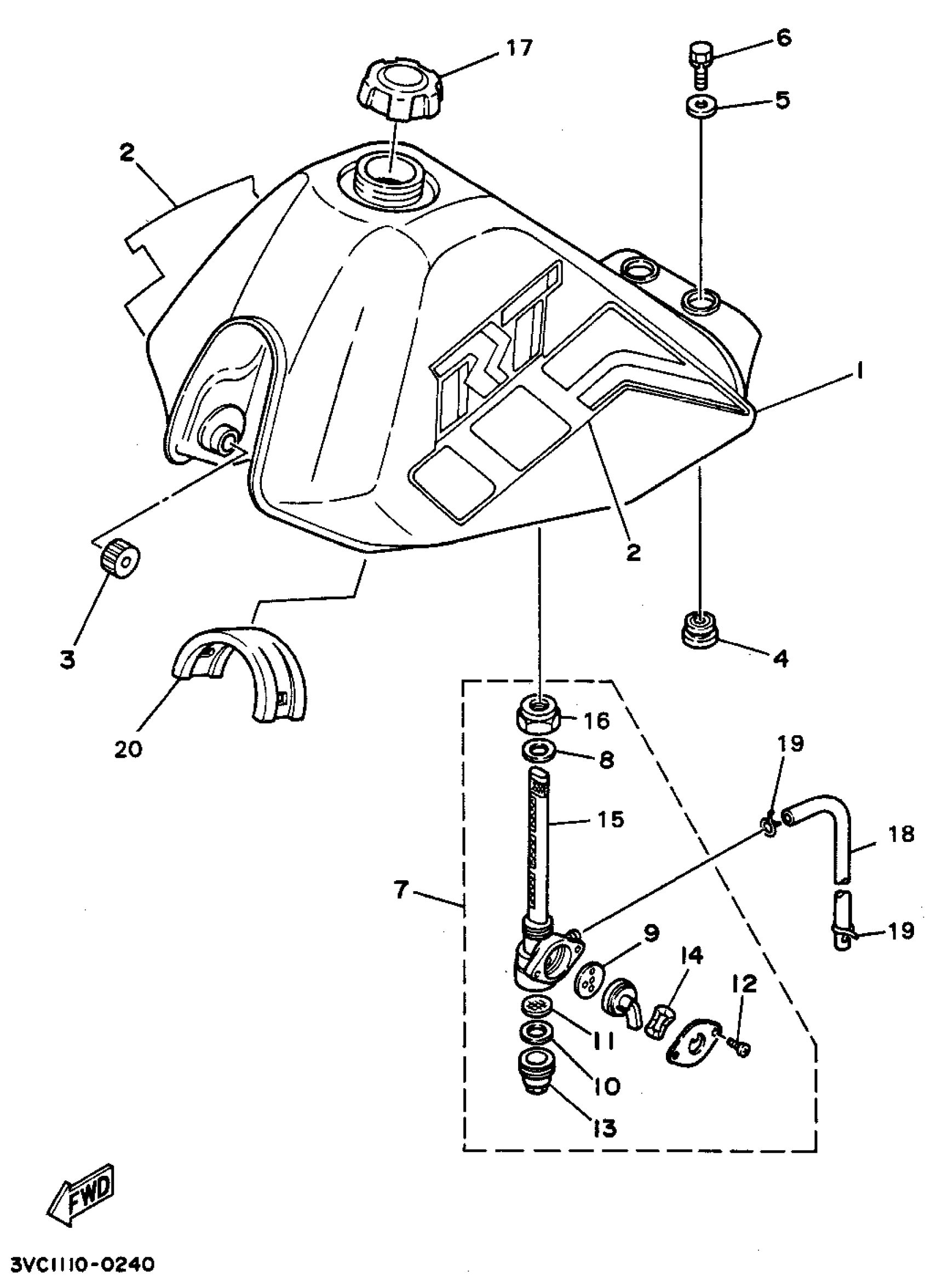

Yamaha RT180A (RT180) 1990 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK COMP.

3VC-F4110-00-33

Unavailable

1

FUEL TANK COMP.

3VC-F4110-00-36

Unavailable

2

GRAPHIC SET

3VC-F4240-00-33

Unavailable

2

GRAPHIC SET

3VC-F4240-00-36

Unavailable

3

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

4

GROMMET

90480-22231-00

Unavailable

5

WASHER, PLATE

90201-06086-00

$7.49

6

BOLT, HEXAGON

97017-06012-00

$3.76

7

FUEL COCK ASSEMBLY 1

58W-F4500-00-00

Unavailable

8

GASKET, FUEL COCK

3VC-F4532-00-00

Unavailable

9

VALVE/GASKET

2MW-F4523-00-00

Unavailable

10

. GASKET

23L-F4522-00-00

Unavailable

11

. NET, FILTER 2

502-F4515-10-00

Unavailable

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

. CUP, FILTER

502-F4521-00-00

Unavailable

14

. WASHER, WAVE

23L-F4518-00-00

Unavailable

15

STRAINER

23L-F4536-00-00

Unavailable

16

. NUT

502-F4531-00-00

Unavailable

17

CAP ASSY

3Y1-24610-01-00

Unavailable

18

HOSE (L420)

90445-092K1-00

Unavailable

19

CLIP

90467-09W02-00

Unavailable

20

DAMPER,LOCATING 2

5L9-F4182-00-00

Unavailable
