1990 Yamaha RT180 (RT180A) Front Master Cylinder Diagram

← All diagrams

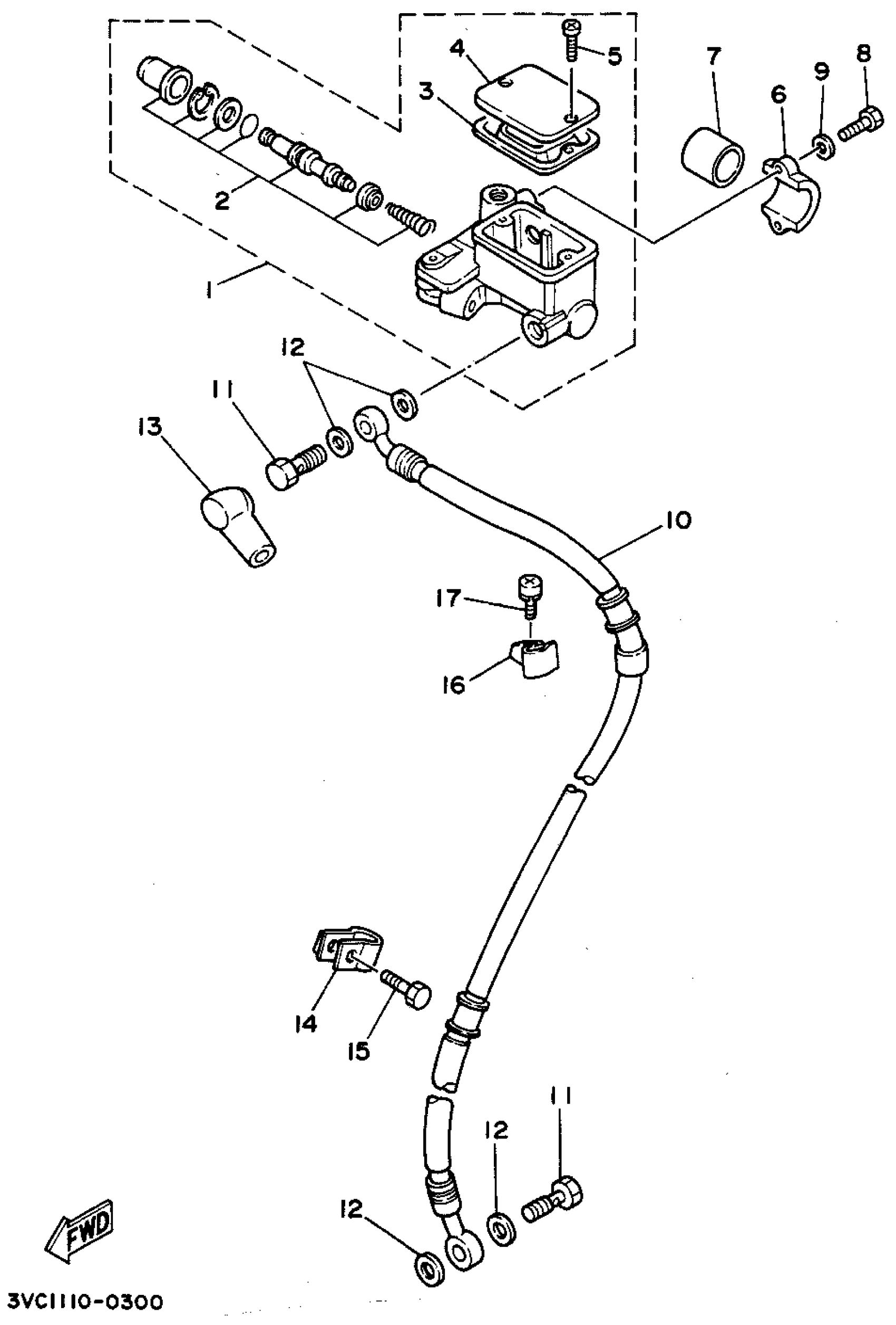

Find the part on the Front Master Cylinder diagram for your 1990 Yamaha RT180 (RT180A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha RT180 (RT180A) Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MASTER CYLINDER ASSY

5CG-2583T-12-00

—

$224.23

In stock

2

CYL KIT,MASTER

5VK-25807-00-00

—

$65.54

In stock

3

DIAPHRAGM, RESERVOIR

55U-25854-00-00

1

$21.68

In stock

4

CAP, RESERVOIR (FRONT)

2KF-25852-02-00

1
Out of stock

5

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

1
Out of stock

7

SPACER(1LX)

90560-22281-00

1

$12.42

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

HOSE,BRAKE 1

2TW-F5872-09-00

1
Out of stock

11

BOLT, UNION(3GM)

90401-10159-00

1

$8.85

In stock

12

WASHER, PLATE

90201-10886-00

1
Out of stock

13

BOOT, MASTER CYLINDER

3V9-F5862-00-00

1
Out of stock

14

HOLDER, BRAKE HOSE 1

3EN-25875-20-00

1
Out of stock

15

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

16

HOLDER, BRAKE HOSE 1

2TW-F5875-00-00

1
Out of stock

17

BOLT M6

9702N-06012-00

—
Out of stock
